3ADW000395R0100 DCS550 Quick guide edisf a

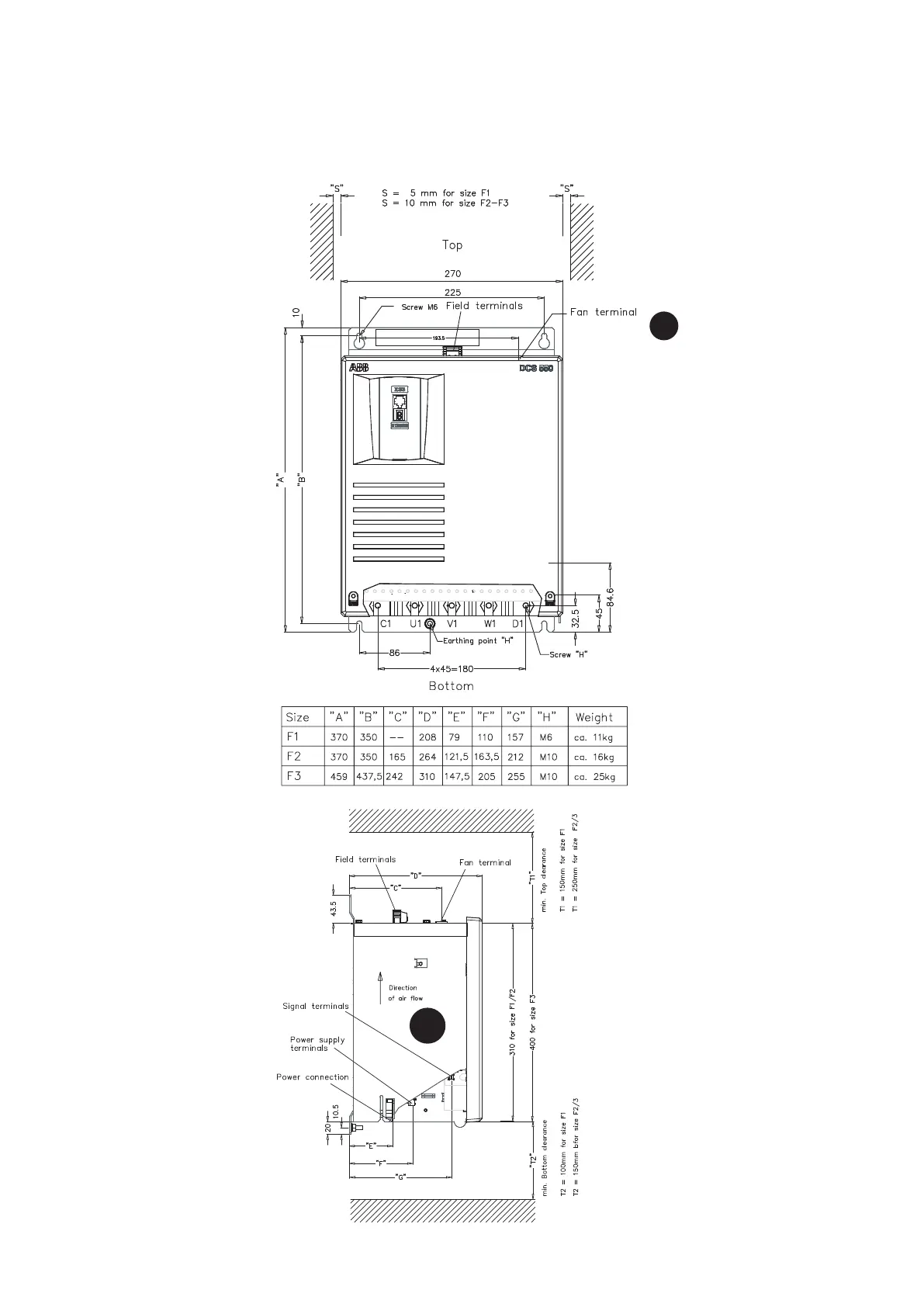

Dimensions, drilling patterns and weights — Abmessungen,
Bohrbild und Gewichte — Dimensioni, schemi di foratura e pesi
— Dimensiones, patrones de taladrado y pesos — Dimensions,
perçages et poids
Dimensions in mm
Maße in mm
Dimensioni in mm
Dimensiones en mm
Dimensions en mm
Module F1
DCS550-S01-0020
DCS550-S01-0045
DCS550-S01-0065
DCS550-S01-0090
DCS550-S02-0025
DCS550-S02-0050
DCS550-S02-0075
DCS550-S02-0100
Module F2
DCS550-S01-0135
DCS550-S01-0180
DCS550-S01-0225
DCS550-S01-0270
DCS550-S02-0150
DCS550-S02-0200
DCS550-S02-0250
DCS550-S02-0300
Module F3
DCS550-S01-0315
DCS550-S01-0405
DCS550-S01-0470
DCS550-S02-0350
DCS550-S02-0450
DCS550-S02-0520
1
1
Air direction
Luftrichtung
Direzione aria
Dirección del aire
Sens de circulation de l‘air
