ABB DPA UPScale ST120 - Block Diagram; Cable Sections; Dual Input Feed (Optional Version)

Modifications reserved
Page 41/79
5.7.4 Dual input feed (optional version)
5.7.4.1 Block diagram
Cable sections and fuse ratings recommended. Alternatively, local standards to be respected

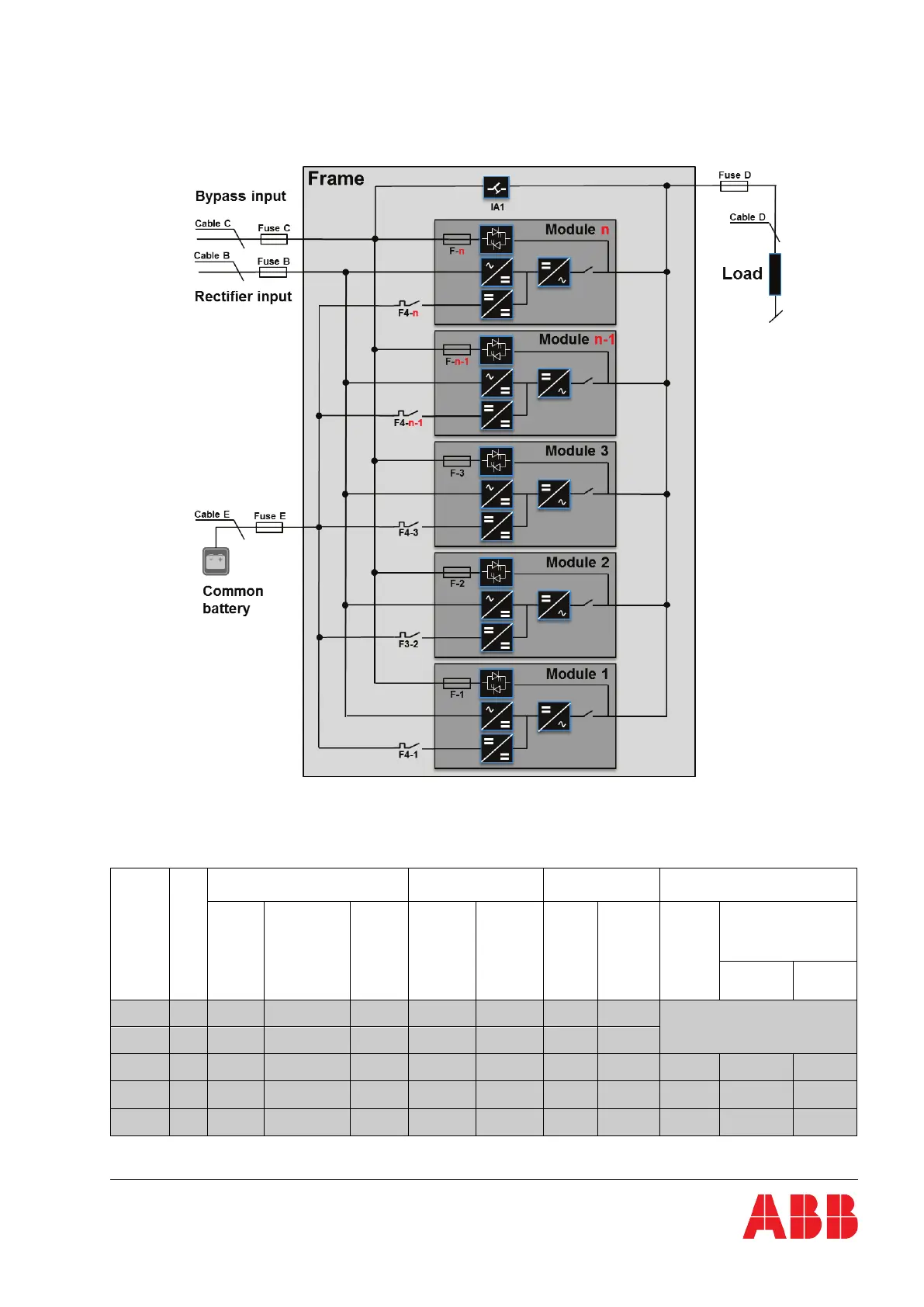

Fig 5.7.4.1-1: Dual input feed block diagram
5.7.4.2 Cable sections
Frame
type
UPScale
ST
Load
in kW
Input 3x400V/230V Bypass 3x400V/230V
Output 3x400V/230V
@ cosphi 1.0
Battery
Fuse B
(Agl/CB)
Cable B (mm
2
)
(IEC 60950-1)
Max.
Input
Current
with
battery
charging
[A]
Fuse C
(Agl/CB)
Cable C
(mm
2
)
(IEC
60950-1)
Cable D
(mm
2
)
(IEC
60950-1)
I nom
[A]
Fuse E
+/N/-
(Agl/CB)
Cable E (mm
2
)
for CBAT UPScale 120 or
200 ONLY
+ / N / -
Com. Battery
Sep.
Battery
40 40 3x80A 5x16 68 A 3x80A 4x16 5x16 58 A
NOT ALLOWED
60 60 3x125A 5x35 102 A 3x125A 4x35 5x35 87 A
80 80 3x160A 5x50 136 A 3x160A 4x50 5x50 116 A 3x224A*1 3x95 *1 4x (3x10)
120
120 3x224A 4x95+1x50 (PE) 208 A 3x224A 4x95 5x70 174 A 3x300A*1 3x150 *1 6x (3x10)
200
200 3 x 350 A 5 x 185 333 A 3 x 350 A 4 x 185 5 x 185 290 A 3 x 450 *1 3 x (2 x 95)*1 5 x (3x25)
*1 only valid for common battery use
