18 EasyLine EL3000 Series Data Sheet 10/24-4.10 EN Rev. 9
I/O modules
Profibus module
Electrical connections
RS485 interface:
1 – Not used
2 M24 24 V output ground, max. 0.2 A
3 RxD/TxD-P Receive / transmit data plus, B-line
4 – Not used
5 DGND Data transmission potential (Ref. pot. for VP)
6 VP Supply voltage plus (5 V)
7 P24 24 V output voltage plus
8 RxD/TxD-N Receive / transmit data N, A-line
9 – Not used
Design: 9-pin sub-D female connector
MBP interface (non-intrinsically safe):
1 +
2 Shield
3 –
4 Not used
Design: 4-pin terminal strip. Observe the notes regarding
I/O module connection (see page 17)!
Connect

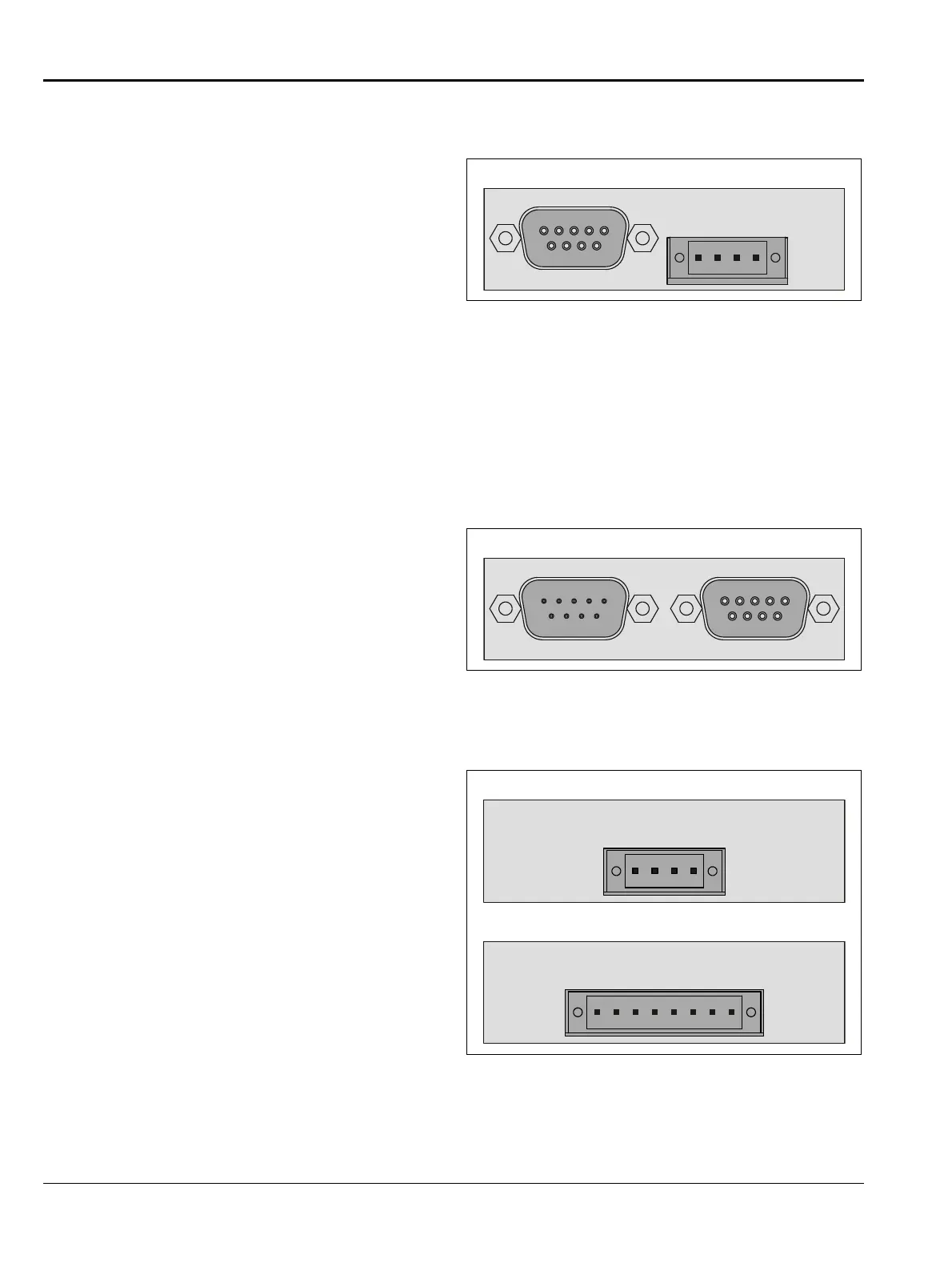

ion diagram
1
6
R
S
485 MBP
1234
Modbus module
Electrical connections
RS232 interface:
2 RxD
3 TxD
5 GND
Design: 9-pin sub-D male connector
RS485 interface:
2 RTxD–
3 RTxD+
5 GND
Design: 9-pin sub-D female connector
Connection diagram
1
6
1
6
R
S
232 R
S
485
Analog output modules
Analog outputs (AO1–AO4)
0 / 4–20 mA (configurable, factory-set to 4–20 mA), common
negative pole, galvanically isolated from ground, freely con-
nectable to ground, max. gain relative to protective ground
potential 50 V, max. working resistance 750 Ω. Resolution
16 bit. The output signal cannot be lower than 0 mA.
Terminal assignment
An analog output is allocated in the sequence of the sample
components for each sample component. The sequence of
the sample components is documented in the analyzer data
sheet and on the type plate.
Electrical connections
1 AO1+ 
2 AO1–  for 2-way analog output module and
3 AO2+  4-way analog output module
4 AO2– 
5 AO3+ 
6 AO3–  only for
7 AO4+  4-way analog output module
8 AO4– 
Design: 4-pin or 8-pin terminal strip. Observe the notes
regarding I/O module connection (see page 17)!
Connect
ion diagrams
1
2
34
2-Way Analog
O
utput Module
12345678
4-Way Analog
O
utput Module
