20 EasyLine EL3000 Series Data Sheet 10/24-4.10 EN Rev. 9
Gas connections Uras26

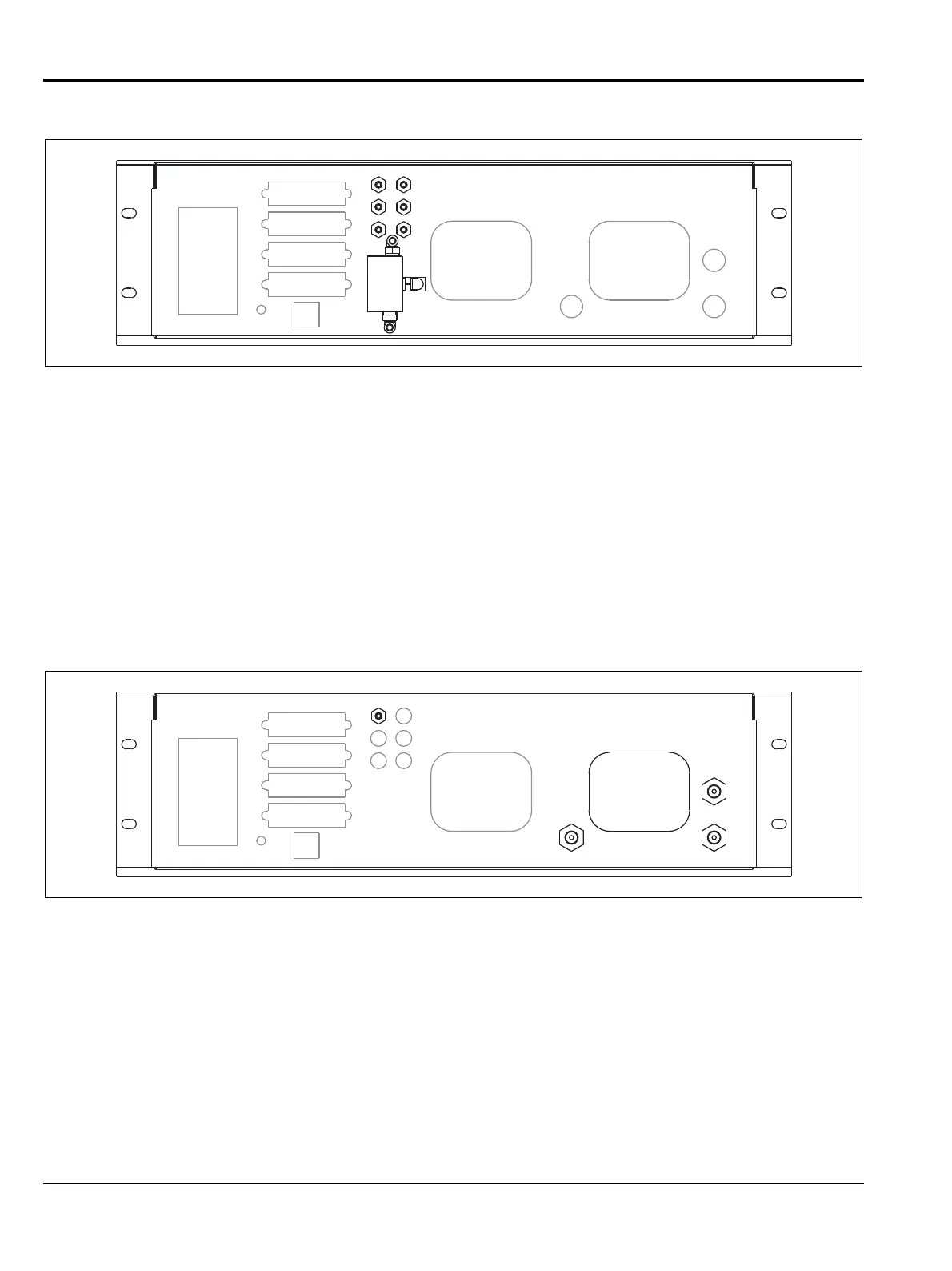

Model EL3020 (Internal gas lines: FPM hoses)
21
22
2
1
43
65
1 Sample gas inlet gas path 1 without “Integral gas feed” option
2 Sample gas outlet gas path 1 connected to sample gas inlet of Magnos206 or Caldos27 if applicable
3 Sample gas outlet for “Integral gas feed” option, factory-connected to sample gas inlet gas path 1
4 Sample gas inlet for “Integral gas feed” option with flow sensor only (without solenoid valve)
5 Sample gas inlet gas path 2
6 Sample gas outlet gas path 2
Design: Screwed fittings with hose nozzles (stainless steel 1.4305 / SAE 303) for hoses with 4 mm inner diameter (supplied)
21 Sample gas inlet at solenoid valve
for “Integral gas feed” option with
22 Test gas inlet at solenoid valve solenoid valve, pump, filter, capillary and flow sensor
Design: Screwed fittings with hose nozzles (PVDF) for hoses with 4 mm inner diameter (supplied)
Note: Pressure sensor (standard) and O
2
sensor (option) are connected internally as follows:
downstream the sample cell 1 outlet for one sample cell or for two separate gas paths,
downstream the sample cell 2 outlet for two sample cells in series.
Model EL3020 (Internal gas lines: PTFE or stainless steel pipes)
6
13 12
11
6 Pressure sensor
Design: Screwed fitting with hose nozzle (stainless steel 1.4305 / SAE 303) for hose with 4 mm inner diameter (supplied)
11 Sample gas inlet
12 Sample gas outlet for one sample cell
connected to sample gas inlet of
13 Sample gas outlet for two sample cells in series Caldos27 or Magnos206 if applicable
Design: 1/8 NPT female thread (stainless steel 1.4305 / SAE 303) for threaded connections (not supplied)
Notes: O
2
sensor, “Integral gas feed” option and version with two separate gas paths cannot be provided.
