10/24-4.10 EN Rev. 9 EasyLine EL3000 Series Data Sheet 21

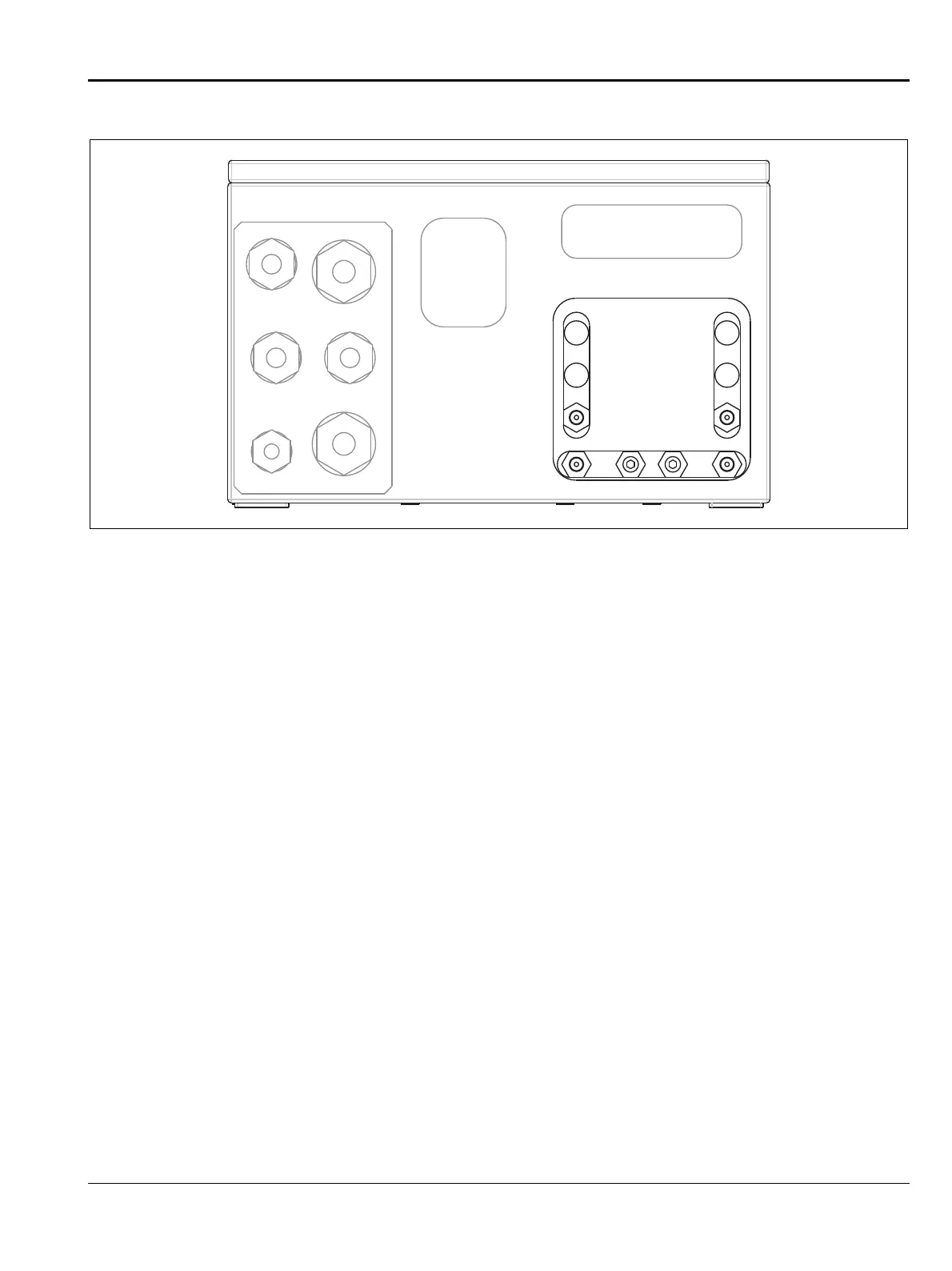

Gas connections Uras26
Model EL3040 (Internal gas lines: FPM hoses or PTFE or stainless steel pipes)
1
2
38
9
10
6
547
One gas path with one or two sample cells
1 not used
2 not used
3 Sample gas inlet
4 Sample gas outlet for one sample cell
5 Purge gas inlet housing
6 Purge gas outlet housing
7 not used
8 Sample gas outlet for two sample cells in series
9 Pressure sensor (internal gas paths: PTFE or stainless steel pipes)
10 not used
Two separate gas paths with one sample cell each
1 not used
2 not used
3 Sample gas inlet gas path 1
4 Sample gas outlet gas path 1
5 Purge gas inlet housing
6 Purge gas outlet housing
7 Sample gas inlet gas path 2
8 Sample gas outlet gas path 2
9 not used
10 not used
Design: 1/8 NPT female thread (stainless steel 1.4305 / SAE 303) for threaded connections (not supplied;
screwed fittings with hose nozzles (PP) for hoses with 4 mm inner diameter supplied
for purge gas connections and
for sample gas connections when internal gas paths are made up of FPM hoses.)
Notes: When the internal gas paths are made up of FPM hoses, pressure sensor (standard) and O
2
sensor (option) are connected
internally as follows:
downstream the sample cell 1 outlet for one sample cell or for two separate gas paths,
downstream the sample cell 2 outlet for two sample cells in series.
When the internal gas paths are made up of PTFE or stainless steel pipes, O
2
sensor and version with two separate gas paths
cannot be provided.
