22 EasyLine EL3000 Series Data Sheet 10/24-4.10 EN Rev. 9

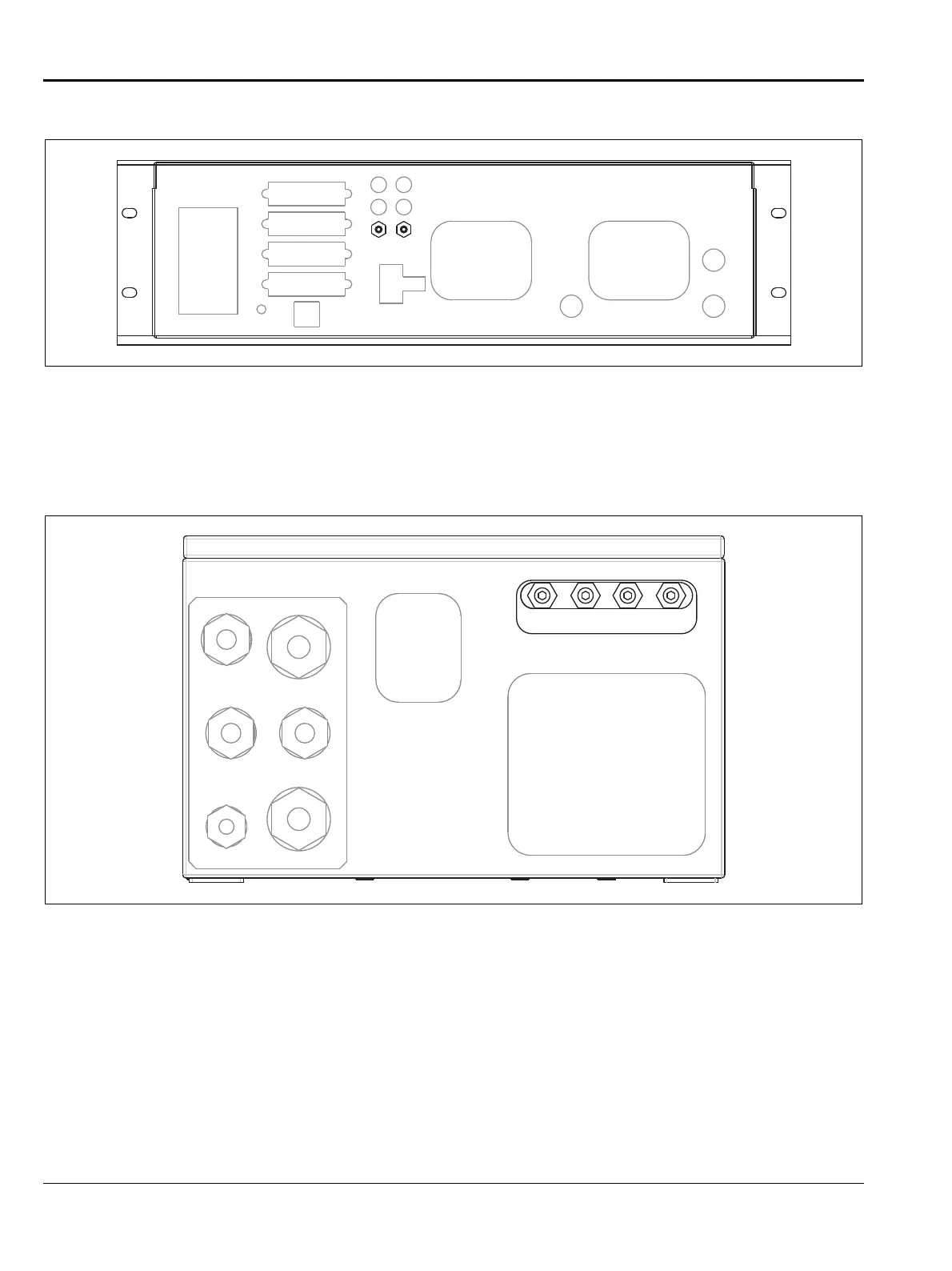

Gas connections Limas23
Model EL3020
2
1
1 Sample gas inlet
2 Sample gas outlet (connected to sample gas inlet of Magnos206 if applicable)
Design: Screwed fittings with hose nozzles (stainless steel 1.4305 / SAE 303) for hoses with 4 mm inner diameter (supplied)
Note: Pressure sensor (standard) and O
2
sensor (option) are connected internally downstream the sample cell.
Model EL3040
11 121413
13 Sample gas inlet
14 Sample gas outlet (connected to sample gas inlet of Magnos206 if applicable)
11 Purge gas inlet housing
12 Purge gas outlet housing
Design: 1/8 NPT female thread (stainless steel 1.4305 / SAE 303) for threaded connections (not supplied;
screwed fittings with hose nozzles (PP) for hoses with 4 mm inner diameter supplied)
Note: Pressure sensor (standard) and O
2
sensor (option) are connected internally downstream the sample cell.
