38 EasyLine EL3060 Series Commissioning Instructions

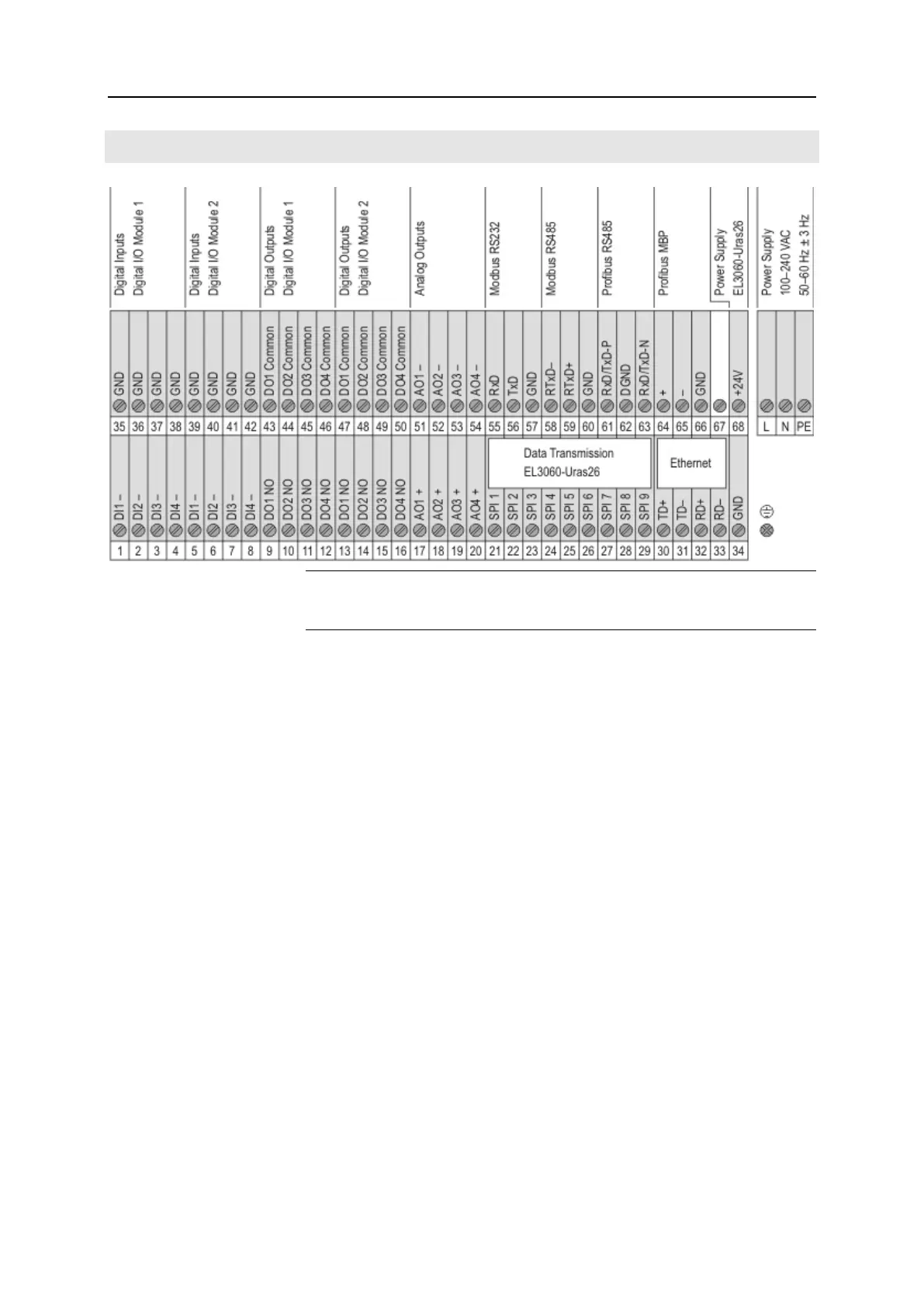

Electrical Connections
NOTE
Not all signal input and outputs are actually assigned, depending on the
configuration of the gas analyzer.
Digital Inputs
Opto-electronic coupler with 24 V DC internal power supply. Activation
with floating contacts or with Open-Collector drivers NPN.
Digital Outputs
Floating double-throw contacts, max. contact load rating 30 V/1 A. The
relays must always be operated within the specified data. Inductive or
capacitive loads are to be connected with appropriate protective
measures (freewheeling diodes for inductive and series resistors with
capacitive loads).
