48 EasyLine EL3060 Series Commissioning Instructions

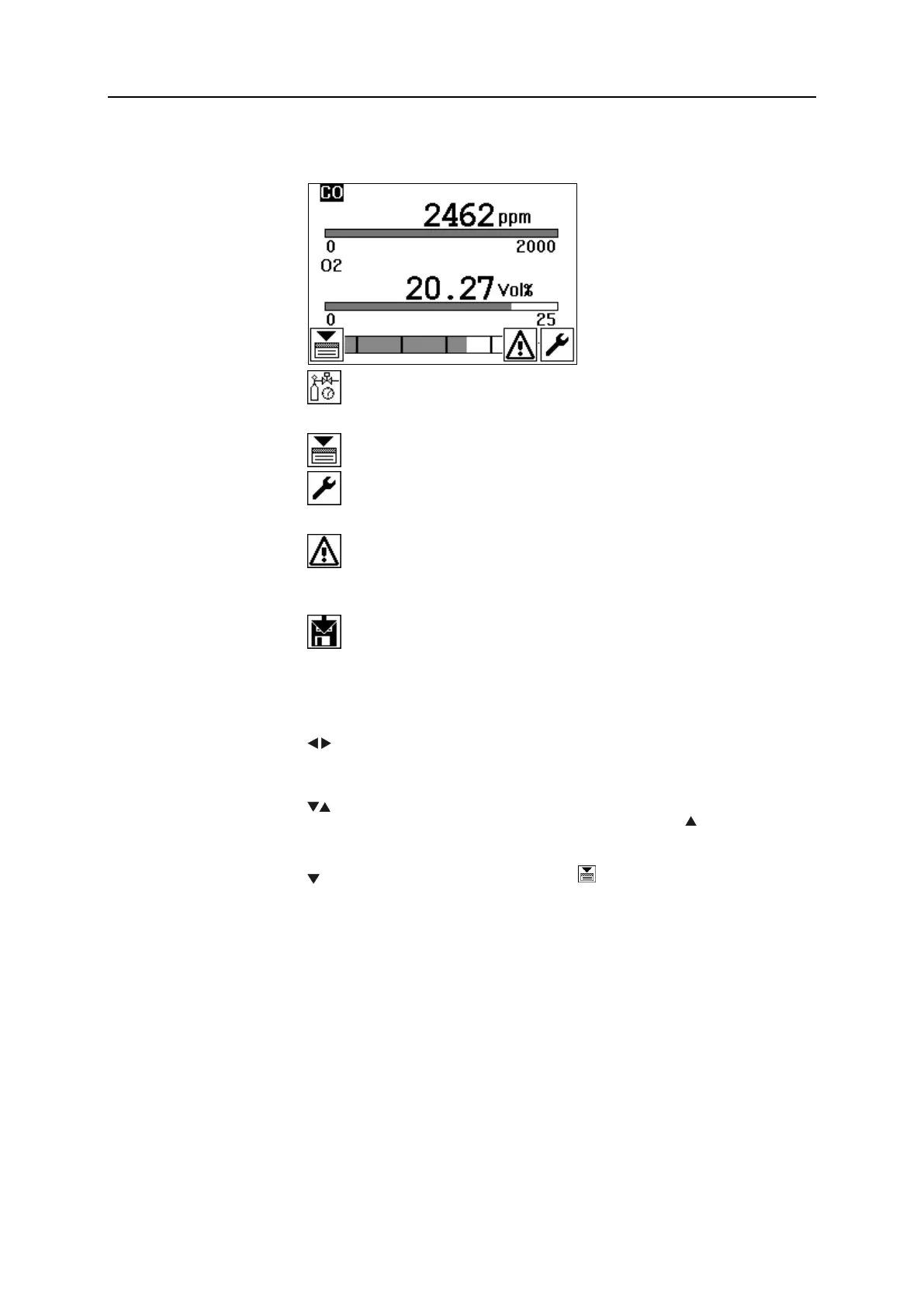

Status Icons
An automatic calibration is executed.
The icon also appears in the menu title line in menu mode (see
page 50).
A status message is active.
The status signal "Maintenance request" is active.
The icon also appears in the menu title line in menu mode (see
page 50).
The status signal "Error" is active or the maintenance switch
has been set to "On".
The icon is blinking. The icon also appears in the menu title line
in menu mode (see page 50).
The configuration is being saved. The icon is blinking.
Do not switch off the power supply of the gas analyzer when
the icon is displayed!
Key Functions in Measuring Mode
Switch over the display of each individual measured value; in
addition to the digital display, an analog bar with information on
the range limits is shown in this display.
Reduce or increase the contrast of the display.
When a status message is active, press key first.
OK Switch to menu mode (see page 50).
If a status message is active : press the key to display the
message list.
To Next Page
