Operating the Gas Analyzer 51

Key Functions in Menu Mode

3-point menu

Select menu item

Return to the next higher menu

OK Return to measuring mode (see page 47)

Component list

Select component

or OK Call up selected component for processing

Parameter list ("Selector")

Select parameters

Call up change in value

OK Accept all displayed values and

return to the next higher menu

Discard all displayed values and

return to the next higher menu

Change in value

Change selected position

Select position to be changed

OK Confirm altered value and

return to the parameter list

Discard altered value and

return to the parameter list

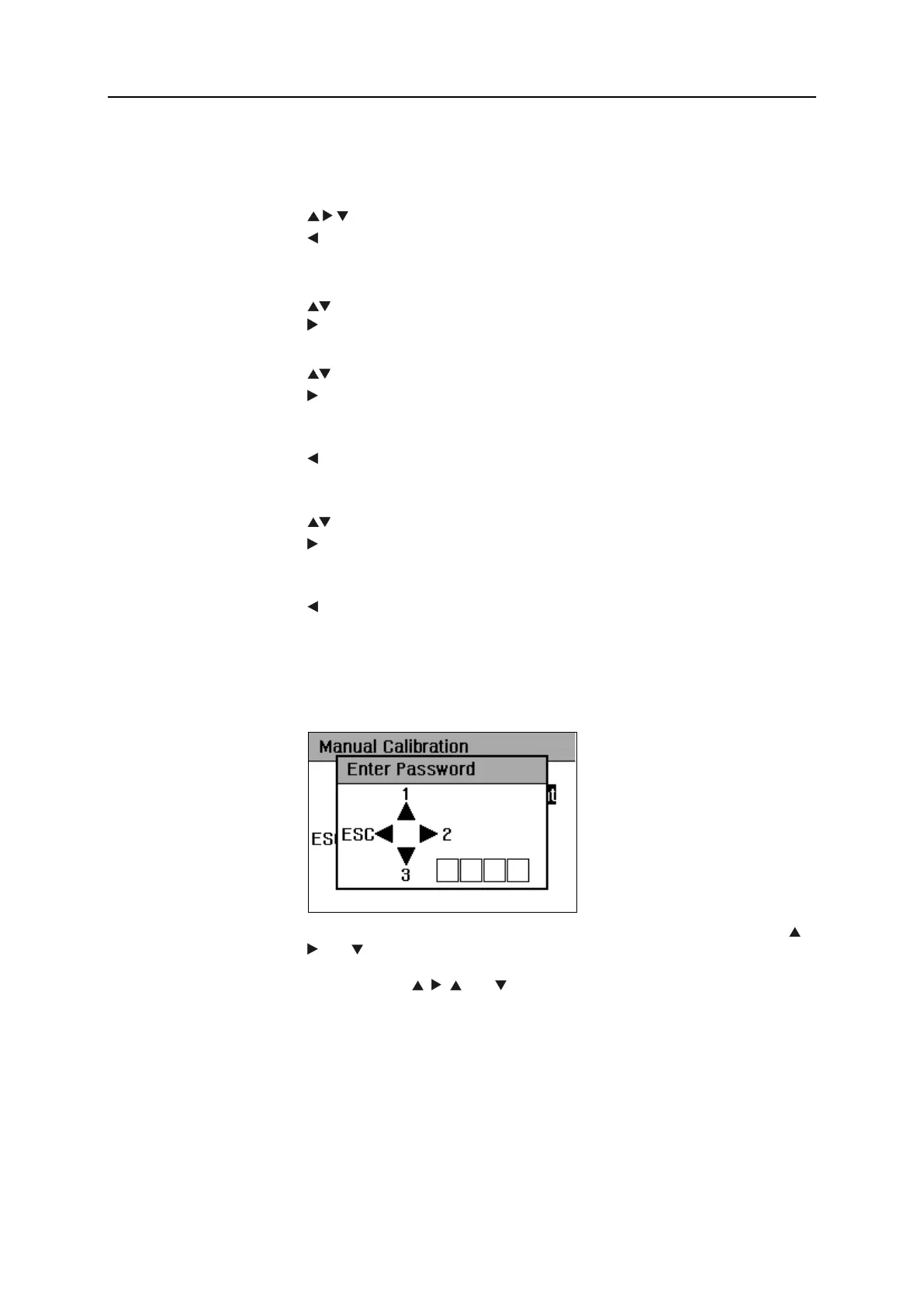

Entering the Password

As soon as the user wishes to access a password-protected menu or a

password-protected value change, he is requested to enter the password.

In this respect, the numbers 1, 2 and 3 are assigned to the three keys ,

and , as shown in the illustration.

Example: If the password "1213" has been configured, the user has to

press the keys , , and in succession. Each key stroke is

acknowledged by display of the character *.

The entered password remains active until the user returns to the

measuring mode or the gas analyzer automatically switches over to the

measuring mode through the time-out function (see page 50).
