F, V, W S e r i e s
Electromagnetic flowmeters | Full-bore flow sensors 3 Electrical Installation
16 OI/FEF/FEV/FEW–EN Rev. D
3.2.2 Sensor Cable Connections (Remote AquaMaster 3 Transmitter Only)
Caution.
 Twist the three screen wires together and sleeve them.
 Keep cable pairs twisted.
 Make connections only as shown.
 Maintain Environmental Protection at all times.
 Conduit connections must provide cable entry sealing.

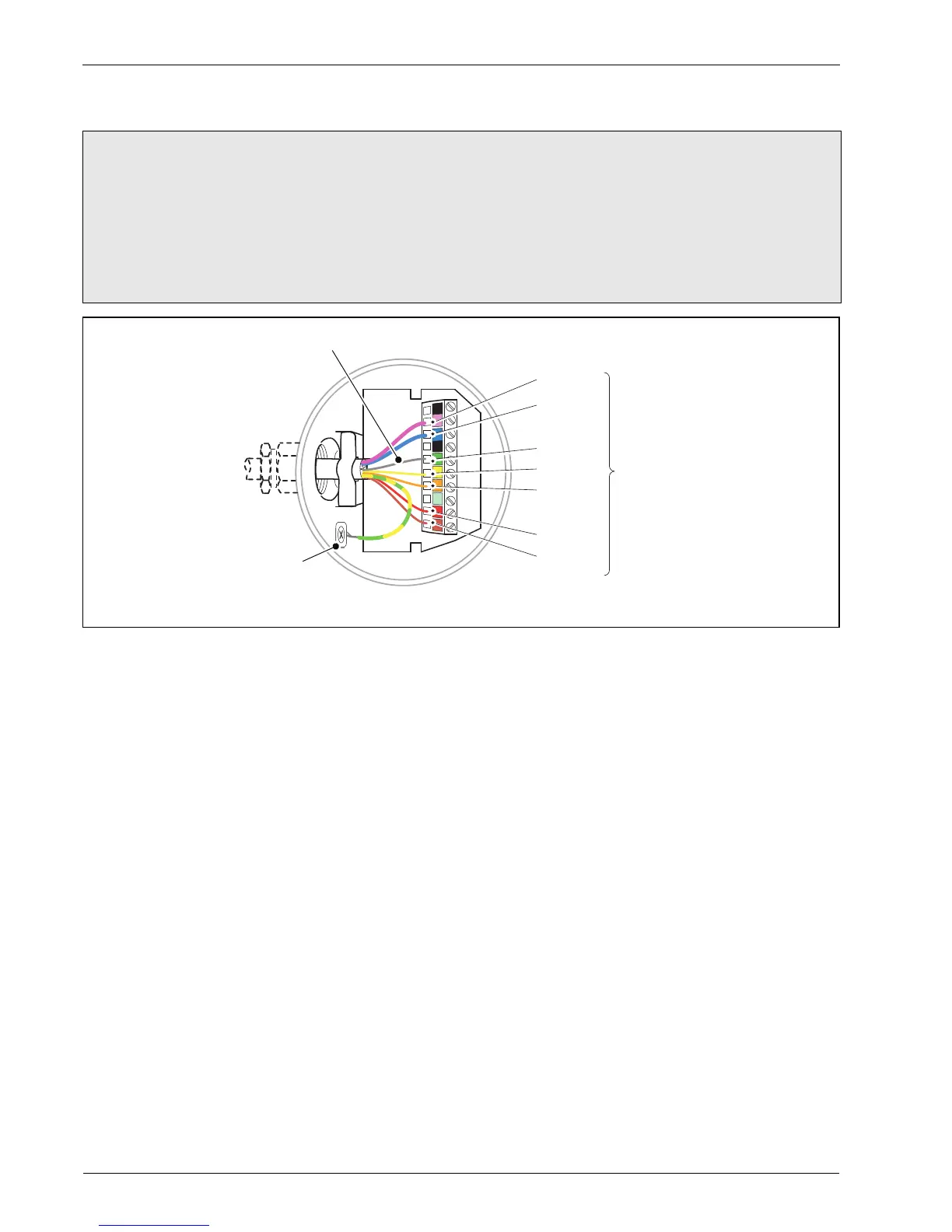

Fig. 3.11 Sensor Cable Connections – AquaMaster 3 Transmitter
Drain / Screen
to Internal Earth
for NPT Gland
Cut cables to
60 mm (2.35 in)
7 Violet
6 Blue
5 Green
4 Yellow
3 Orange
2 Red
1 Brown
Drain / Screen Wire for M20 Gland
