Electromagnetic flowmeters | Full-bore flow sensors 5 Sensor dimensions
OI/FEF/FEV/FEW–EN Rev. D 25
5 Sensor dimensions
5.1 FEW – DN10 to 125 (
3
/8 to 5 in. NB)
Dimensions in mm (in.)

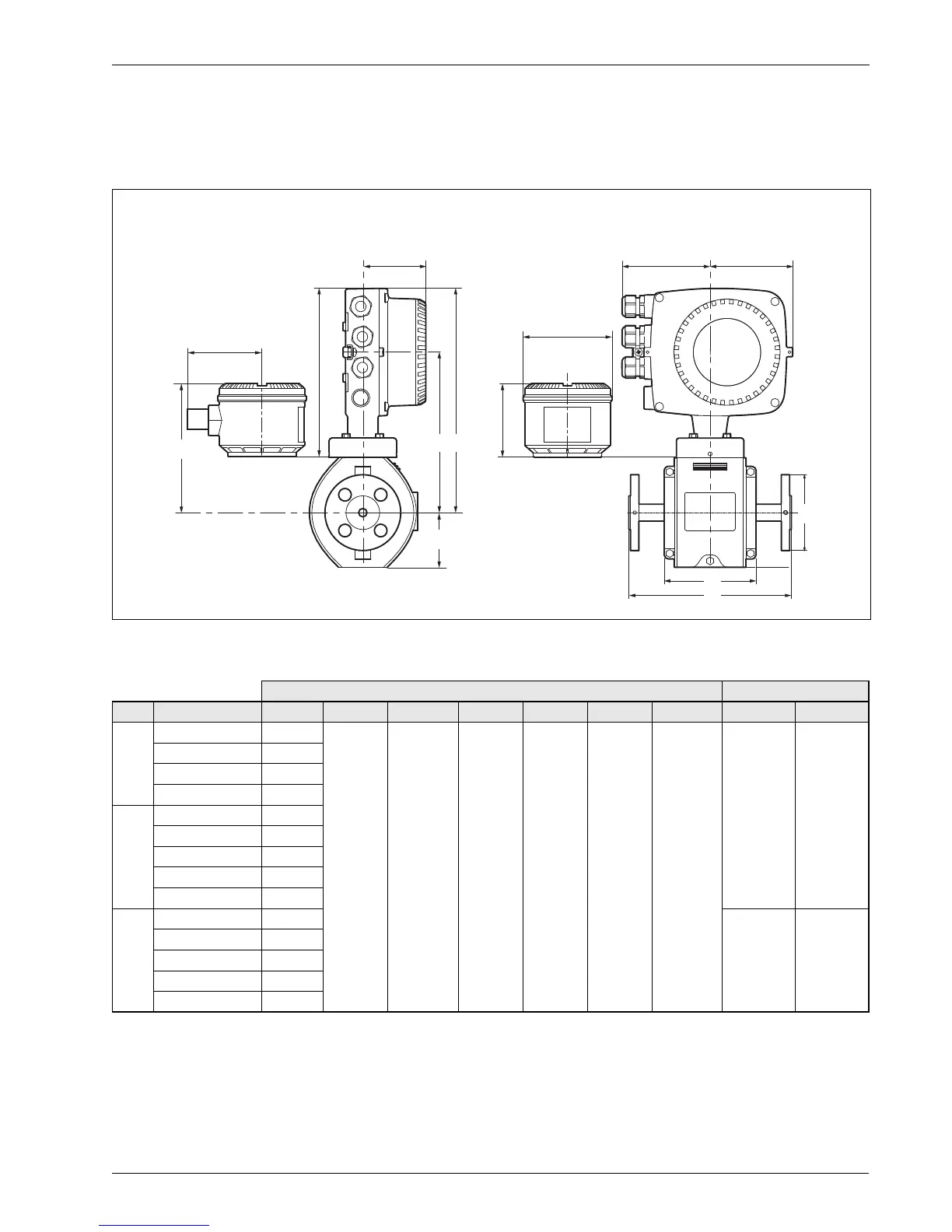

Fig. 5.1 DN10 to 125 (
3
/8 to 5 In. NB) (FEW)
Dimensions in mm (in.) Approx. weight in kg (lb)
DN Mating flange type D L F C E G A Integral Remote
DN10
(
3
/8 in.)
JIS10K 90 (3.54) 200 (7.87) 268 (10.55) 82 (3.23) 193 (7.6) 148 (5.83) 113 (4.45) 6 (13) 4 (9)
PN10 to 40 90 (3.54)
ASME B16.5 CL150 90 (3.54)
ASME B16.5 CL300 96 (3.78)
DN15
(
1
/2 in.)
PN10 to 40 95 (3.74)
JIS5K 80 (3.15)
JIS10K 95 (3.74)
ASME B16.5 CL300 95 (3.74)
ASME B16.5 CL150 90 (3.54)
DN20
(
3
/4 in.)
PN10 to 40 105 (4.13) 8 (18) 6 (13)
JIS5K 85 (3.35)
JIS10K 100 (3.94)
ASME B16.5 CL300 115 (4.53)
ASME B16.5 CL150 98 (3.86)
Table 5.1 DN10 to 125 (
3
/8 to 5 in. NB) (FEW) dimensions / weights
G
F
E
77.8
(3.06)
89
(3.5)
104.5
(4.11)
Ø104
(4.1)
78
(3.1)
210
(7.91)
98
(3.86)
D
L
A
C
