ABB FEW series - Mechanical Installation; Installation Conditions

F, V, W S e r i e s
Electromagnetic flowmeters | Full-bore flow sensors 2 Mechanical Installation
4 OI/FEF/FEV/FEW–EN Rev. D
2 Mechanical Installation
2.1 Unpacking
2.2 Installation Conditions

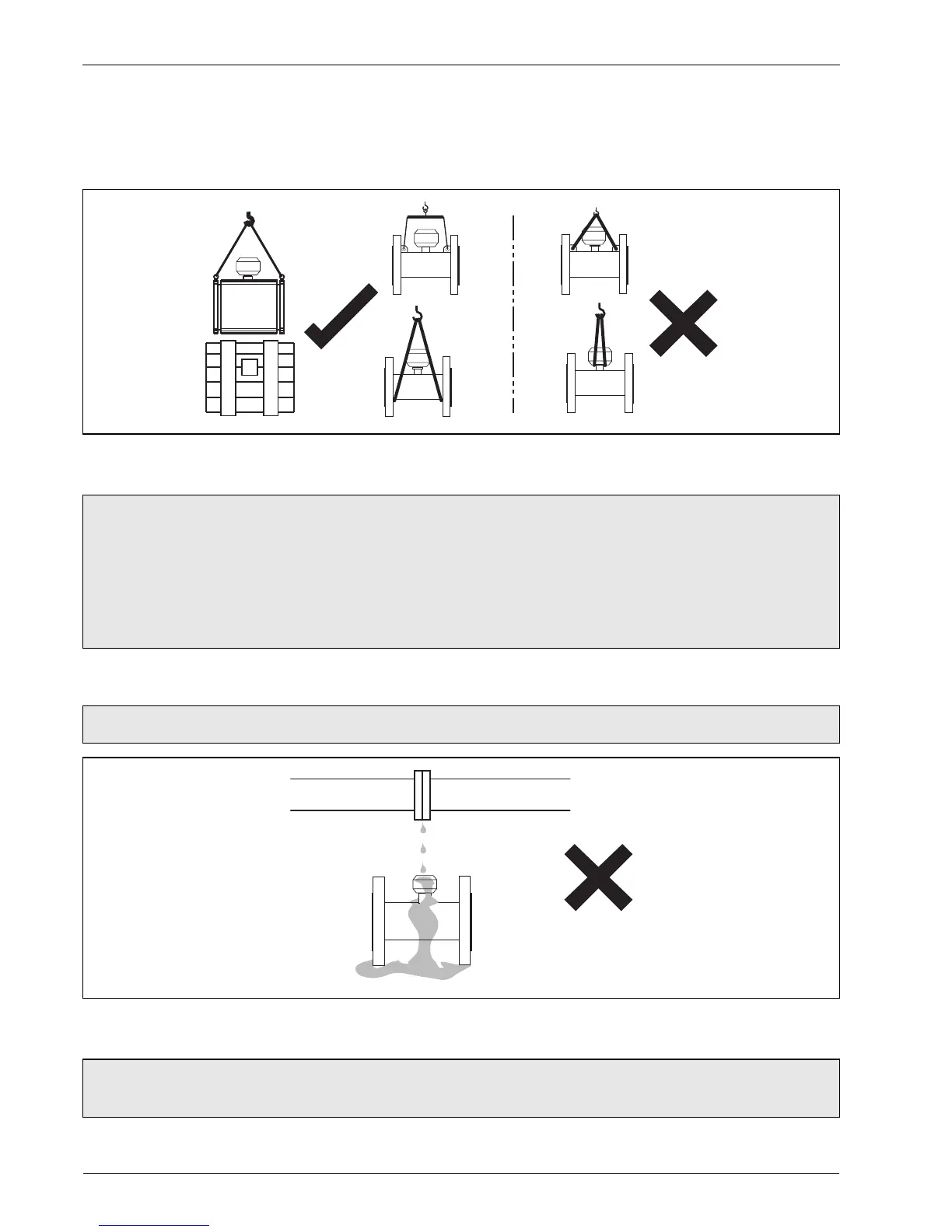

Fig. 2.1 Unpacking
Caution.
 Inspect the flowmeter for damage before installation. Do NOT install a damaged or faulty
flowmeter.
 When lifting the flowmeter, use the lifting hooks provided or sling under the body of the meter.
NEVER lift the flowmeter by the sensor cable terminal connection box – this will damage the
terminal connection box and invalidate the warranty.
Caution. Do NOT exceed the maximum working pressure marked on the flowmeter.
Fig. 2.2 Spillage
Caution. Do NOT install the flowmeter in an area where a spillage of any substance could damage the
flowmeter.
