F, V, W S e r i e s
Electromagnetic flowmeters | Full-bore flow sensors 2 Mechanical Installation
OI/FEF/FEV/FEW–EN Rev. D 5

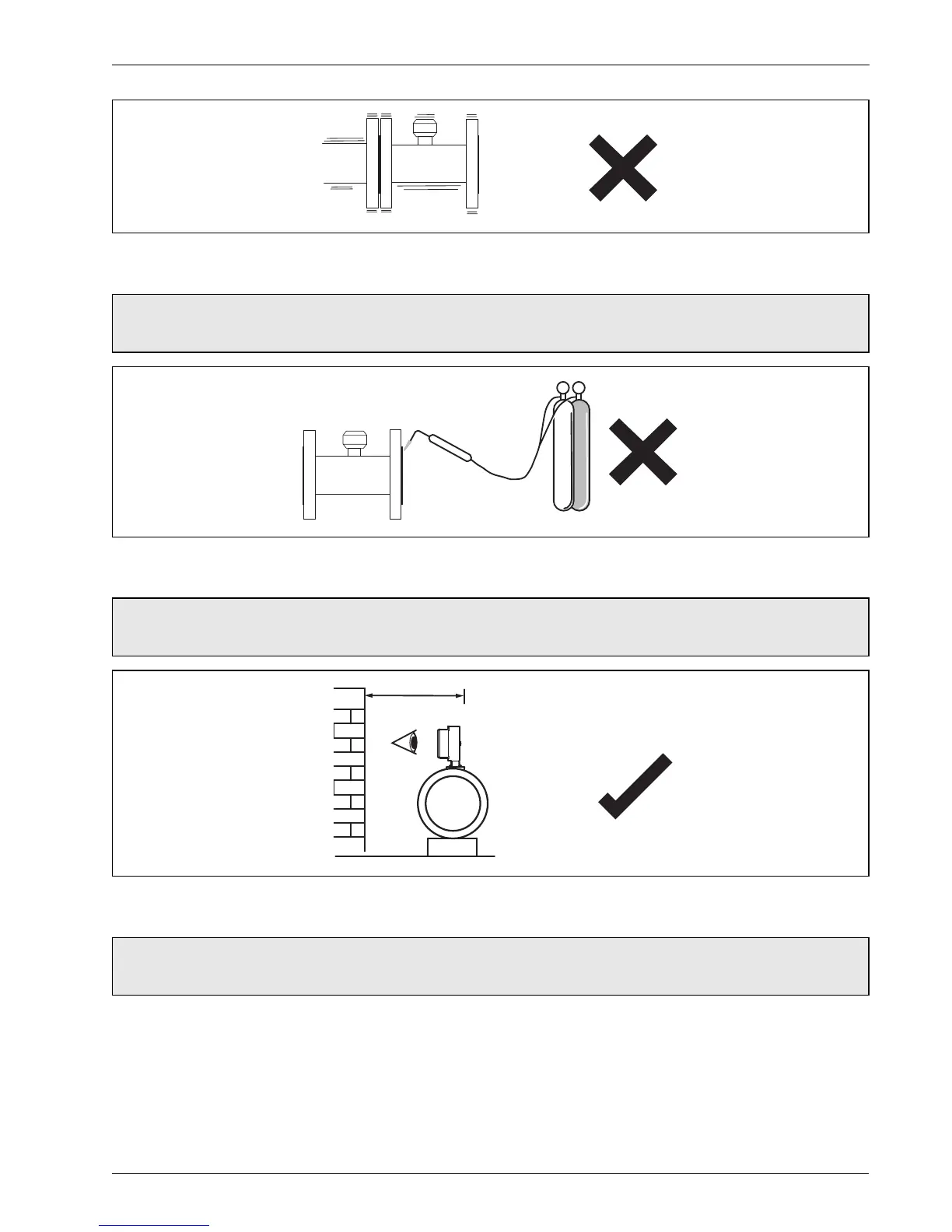

Fig. 2.3 Vibration
Caution. Do NOT install the flowmeter in a pipeline that may exert excessive movement and twisting
forces on the flowmeter, for example, vibration.
Fig. 2.4 Localized Heat
Caution. Do NOT subject the flowmeter to localized heat during installation. Remember – the flowmeter
is a measuring instrument.
Fig. 2.5 Siting
Note. When installing an integral flowmeter, allow enough room to read the transmitter's display and
data label.
