FSM4000 ELECTROMAGNETIC FLOWMETER | DS/FSM4000-EN REV. L
35
Model SE21W
Stainless steel housing, wafer type DN 3 to DN 100 (¹⁄₁₀ to 4”)
DN 3 to DN 40 (¹⁄₁₀ to 1½”)
DN 50 to DN 100 (2 to 4”)
1
Cable gland Pg 13.5 or NPT
2
Hole pattern shaft holes
3
Hole pattern
4
Mounting bracket (optional)

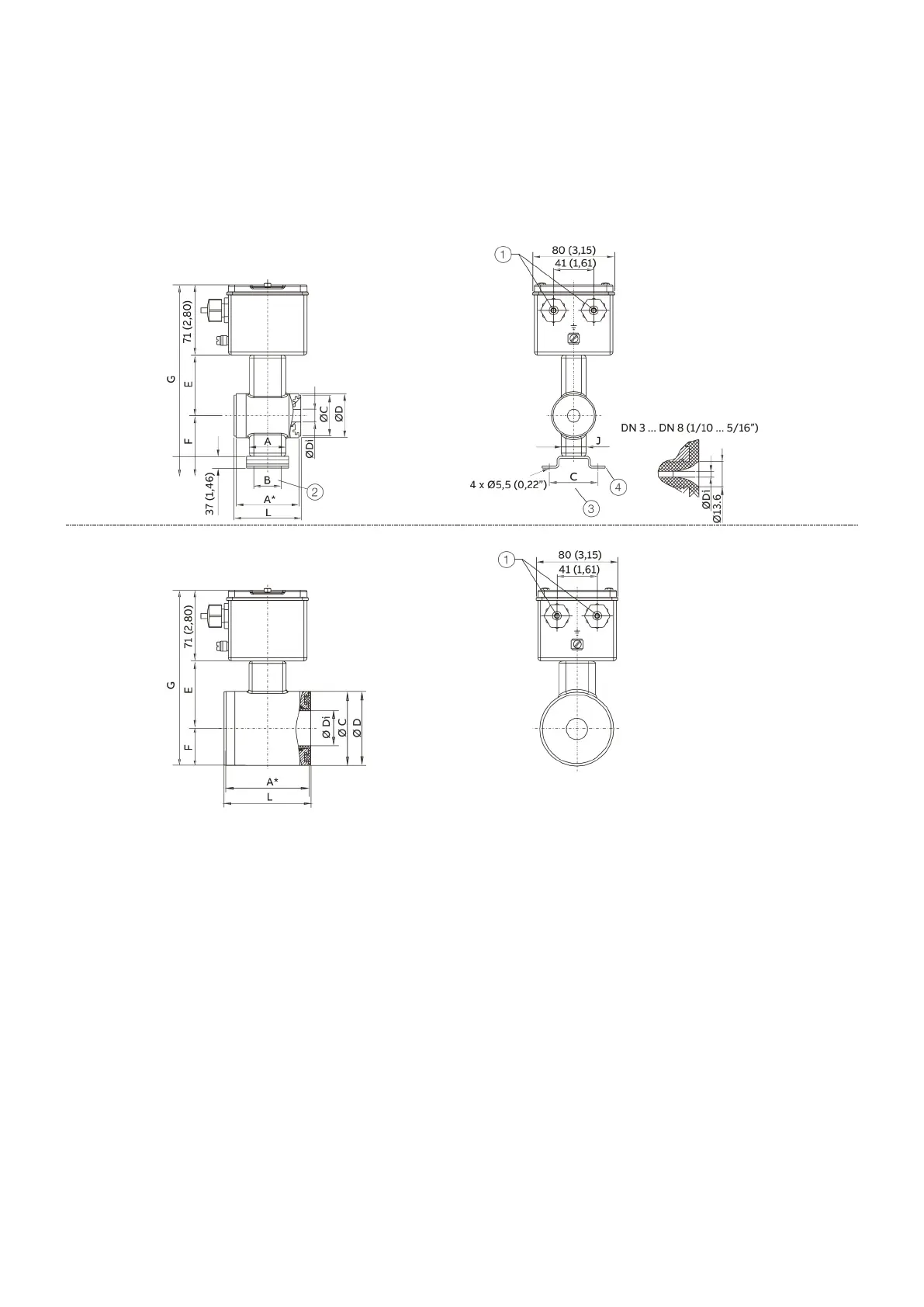

Figure 26: Dimensions in mm (inch
