Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
Horizontal installation
CAUTION!
Do not install bushings that does not have the oil passage (42) in the horizontal position.
If the bushing will be installed in the horizontal position, then this must be specified in the order. Because
horizontally installed bushings must be fully filled with oil (there is no expansion space for the oil), the oil
must flow freely to and from the transformer tank through an oil passage (42).
The bushing is delivered with expansion space for the oil, and the bushing must be filled at installation.
When the bushing is delivered, the oil passage (42) is covered with a covering plate (27) and a rubber gasket.
This configuration makes sure that it will be removed at installation on the transformer.

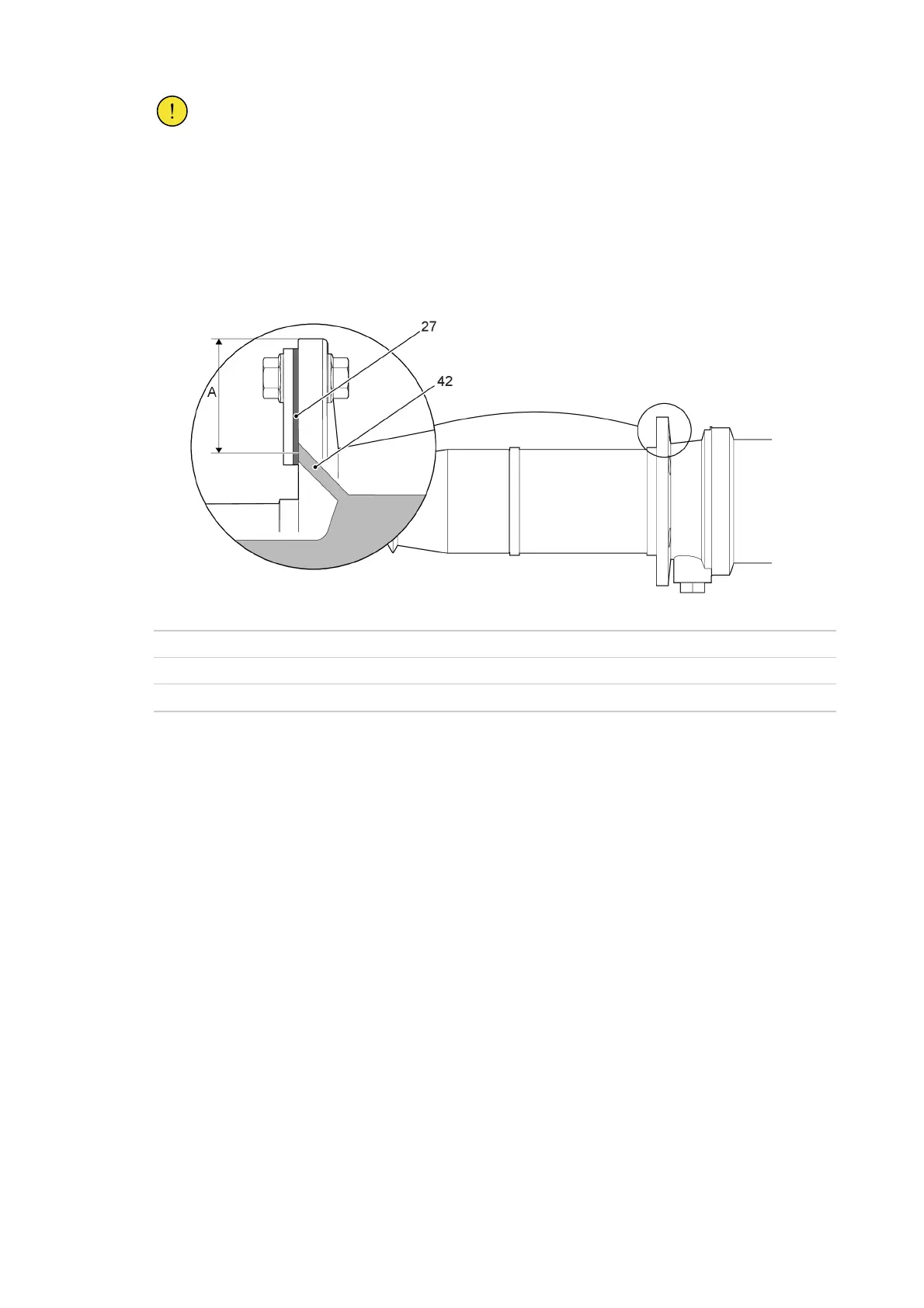

G004983
Type Dimension A (mm)
GOE 250 - GOE 450 55
GOE 550 - GOE 950 60
GOE 1050 - GOE 1175 67
