Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
37
5. Continue with Installation of the bushing on the transformer, page 39.
End of instruction

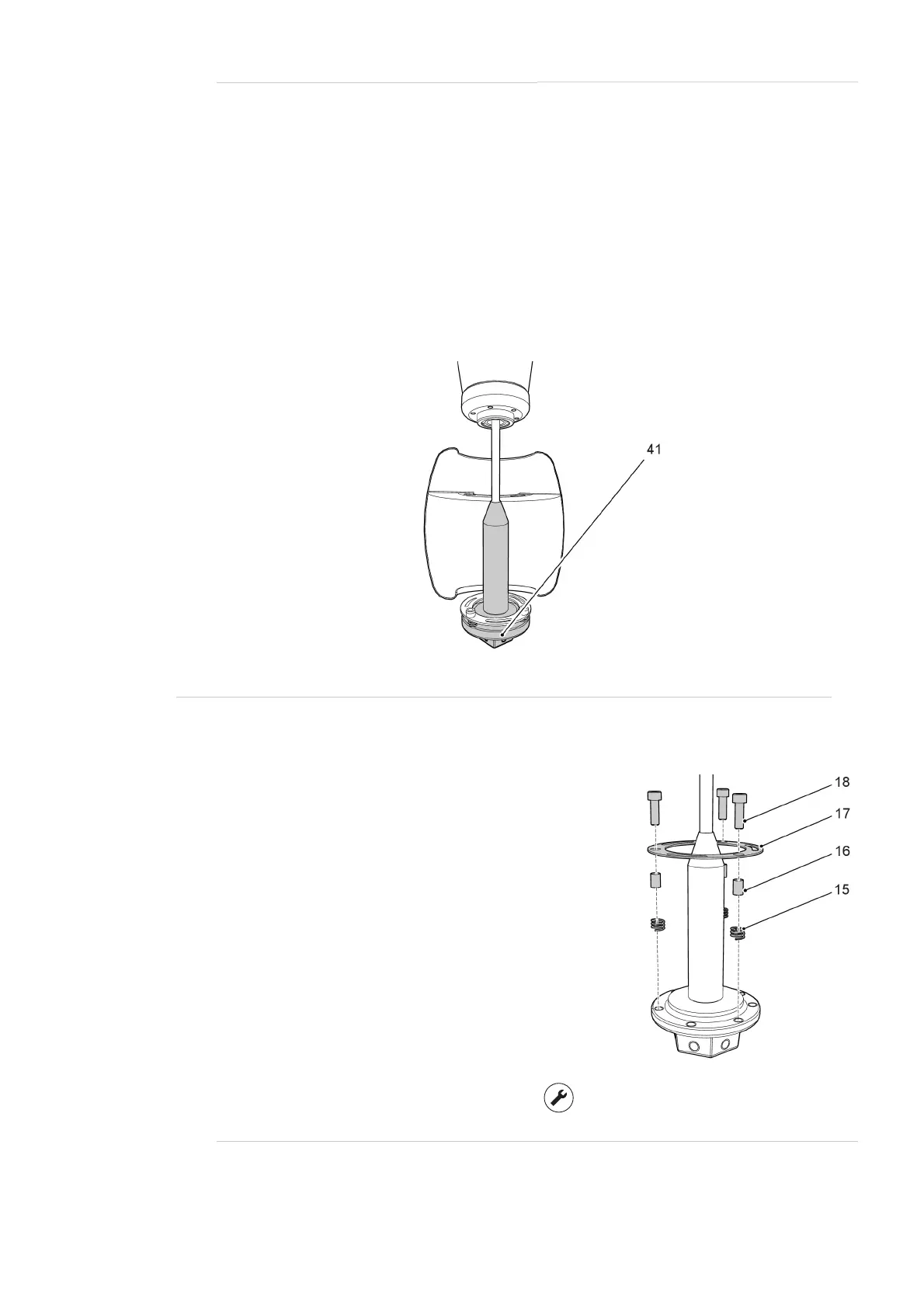

4.6.3 Installation of the large bottom contact (N1=6) in the transformer
Overview
The end-shield can be installed to both the large bottom contact and the bottom nut of the bushing. This
procedure describes installation on the bottom contact. For installation on the bottom nut, refer to Installation
of the small bottom contact in the transformer, page 35.
G005017
41 Large bottom contact
Procedure
1. Install the springs (15), the guiding sleeves (16),
the pressing ring (17), and the hex screws (18) to
the top of the bottom contact.
G005018
Torque
40 Nm
