18
Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
3. Remove the support blocks from the transport box and put them on the ground.
CAUTION!
Make sure that the ground is flat.
4.

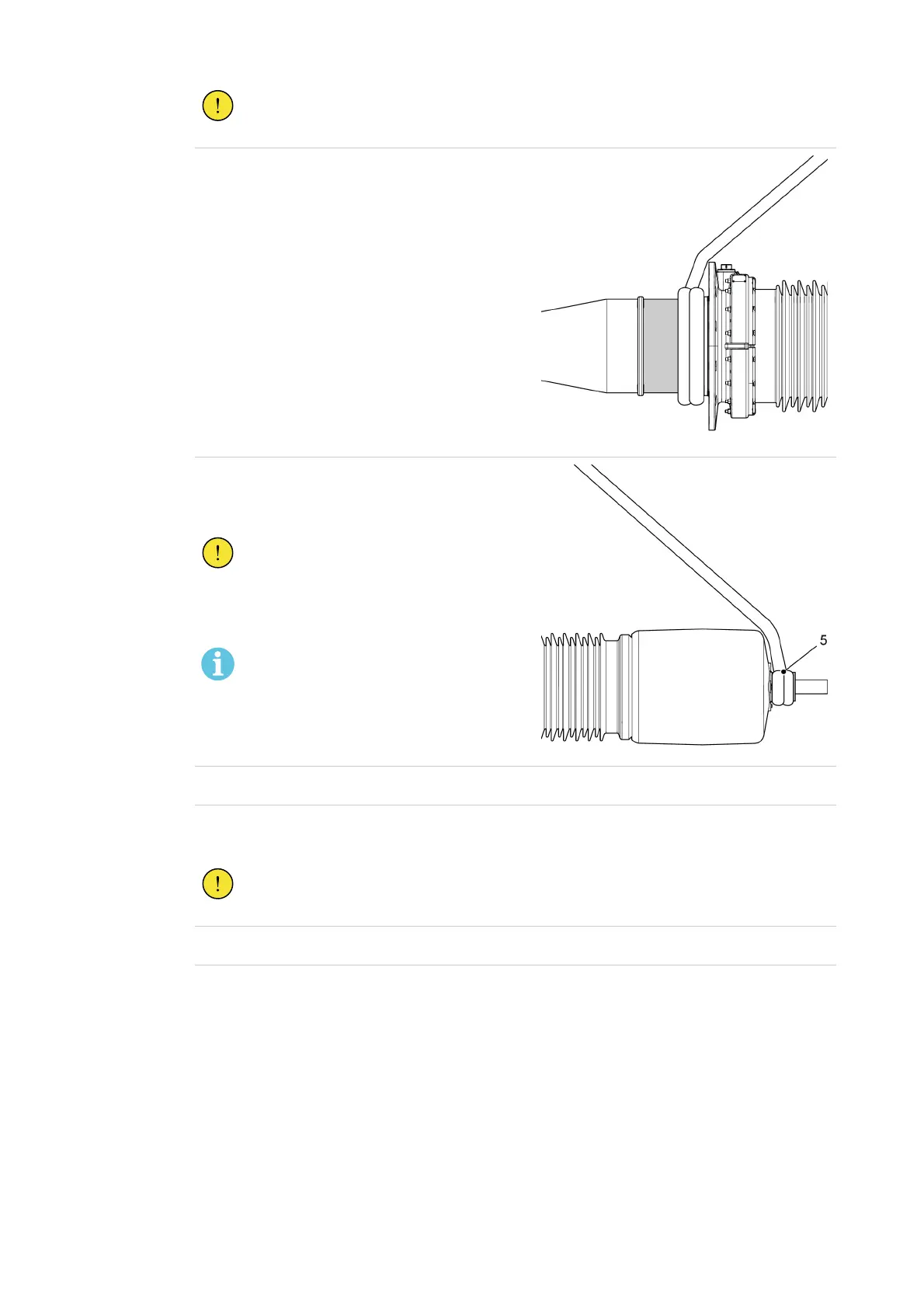

Attach a soft lifting sling to the lower part of the
flange and then to the crane hook.
G004688
5.
Attach a soft lifting sling to the top part of the
bushing and the lower part of the outer terminal
(5).
CAUTION!
Attach the soft lifting sling as close to
the top housing as possible, or damage
will occur.
NOTE!
If the outer terminal is not installed,
please contact ABB.
G004689
6.
Carefully lift the bushing.
7.
Make sure that the support blocks are in the same positions as the support blocks in the
transport box.
CAUTION!
Do not apply force to the ceramic insulator, it will break.
8.
Lower the bushing onto the support blocks.
End of instruction
