Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
25

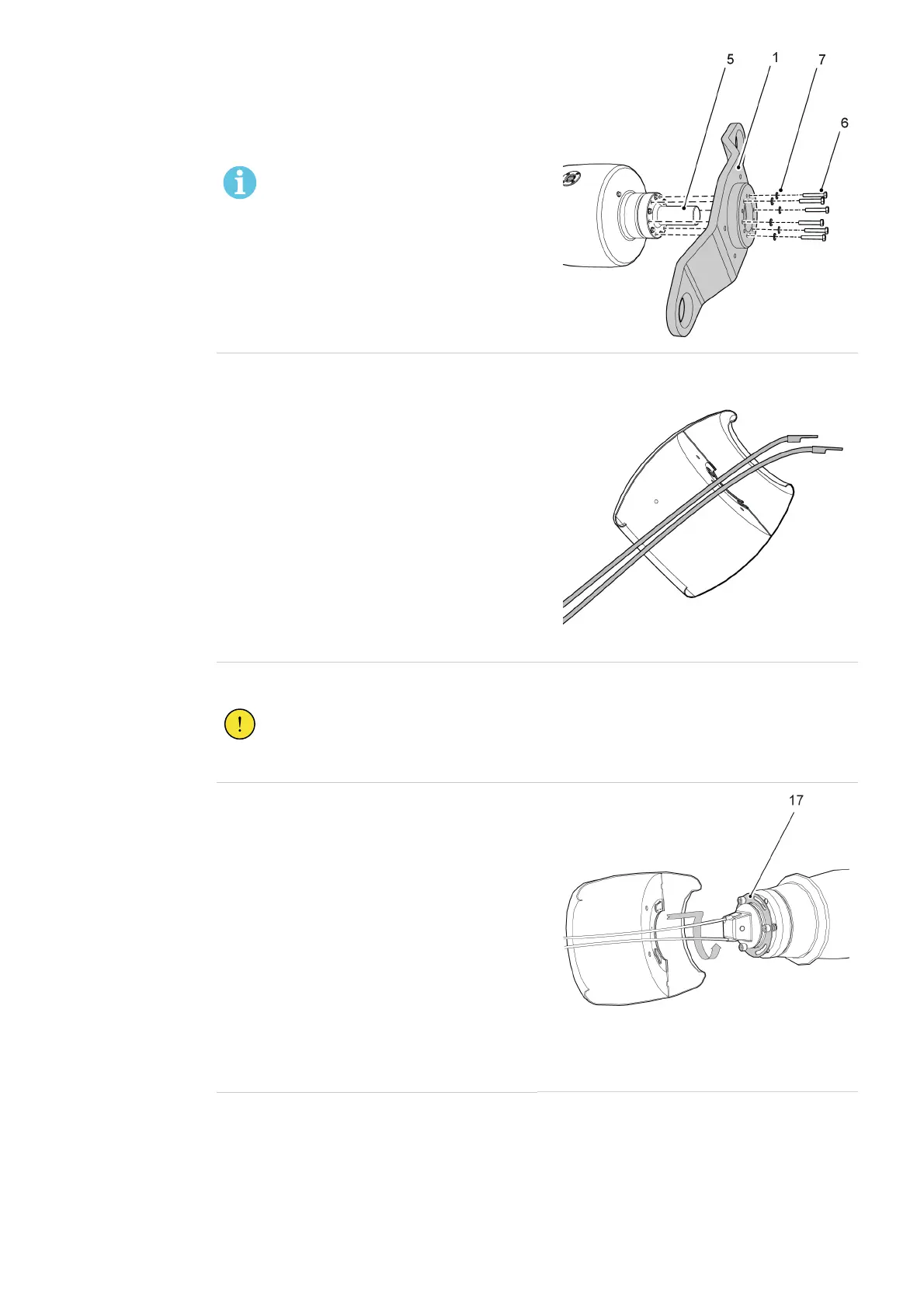

4. Remove the lifting tool (1):
1. Remove the long bolts (6), washers (7) and
lifting tool (1).
2. Install the original bolts (6) and washers (7).
NOTE!
The lifting tool uses longer bolts (6),
use the original bolts (6) to attach the
outer terminal (5).
G006297
5.
Put the winding cables through the end-shield.
G005024
6.
Install the winding cables to the bottom contact.
CAUTION!
Make sure that there is no tension in the winding cables. Tension in the winding cables will
cause damage to the bottom contact.
7.
Install the end shield:
1. Push the end shield carefully against the
pressing ring (17).
2. Turn the end shield approximately 20°, to its
locked position.
G006298
End of instruction
