Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
47

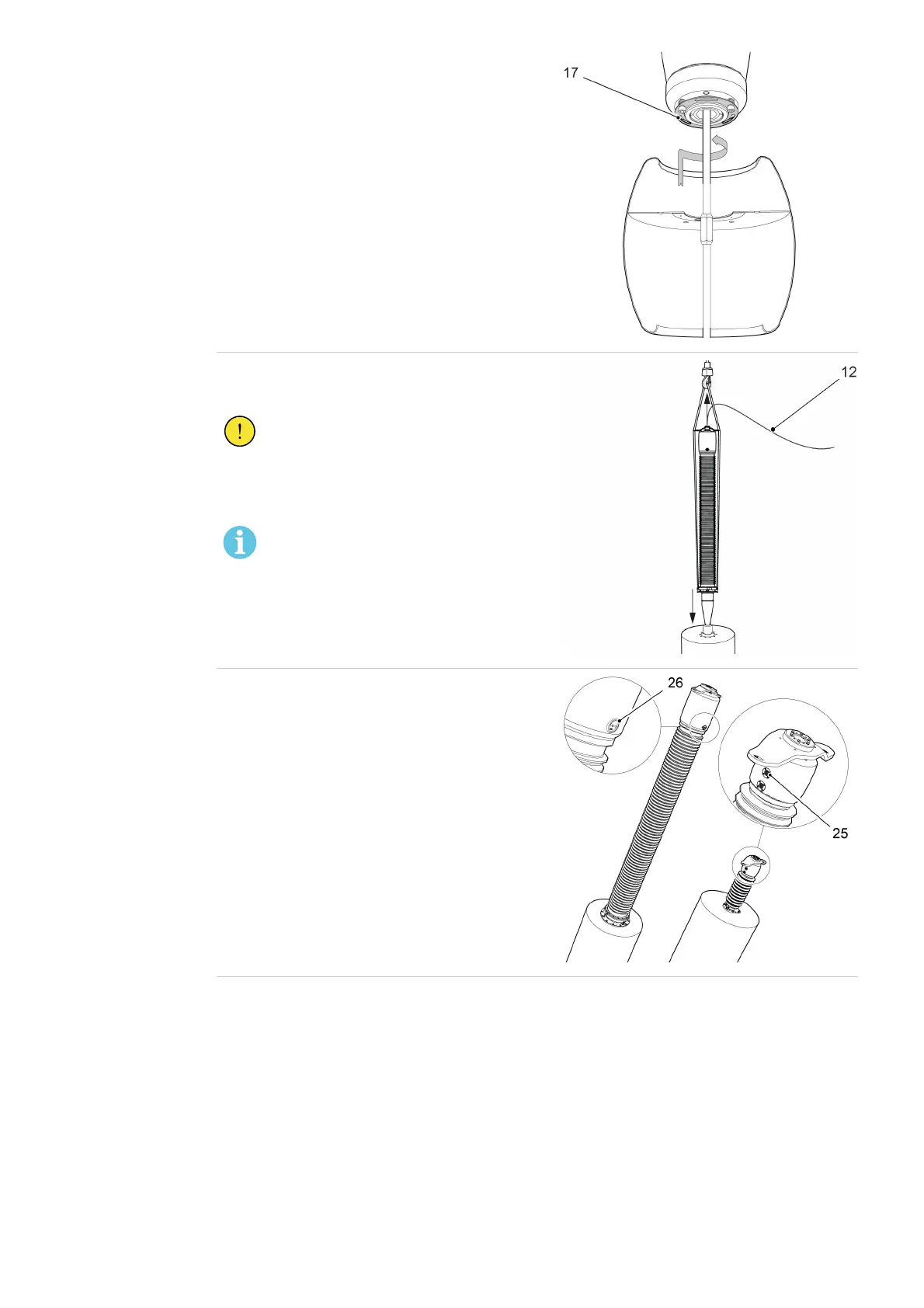

4. If the bushing has the small bottom contact, then
install the end shield:
1. Push the end shield carefully against the
pressing ring (17), until the hex screw heads
comes through the holes in the end shield.
2. Turn the end shield approximately 20°, to its
locked position.
G005039
5.
Hold the pull-through cord (12) in tension, while
lowering the bushing onto the transformer.
CAUTION!
Do not damage the stud bolts. There is
a risk of metal falling into the
transformer.
NOTE!
Plastic sleeves put on two or three of
the stud bolts will help to guide the
flange, and will prevent damage to the
stud bolts.
G003058
6.
If the bushing is installed in a non vertical position:
• For GOE 250 to 950: the sight glasses (25)
must be perpendicular to the angle of the
bushing.
• For GOE 1050 to 2600: the oil-guage (26)
must point down.
G006197
