Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
75

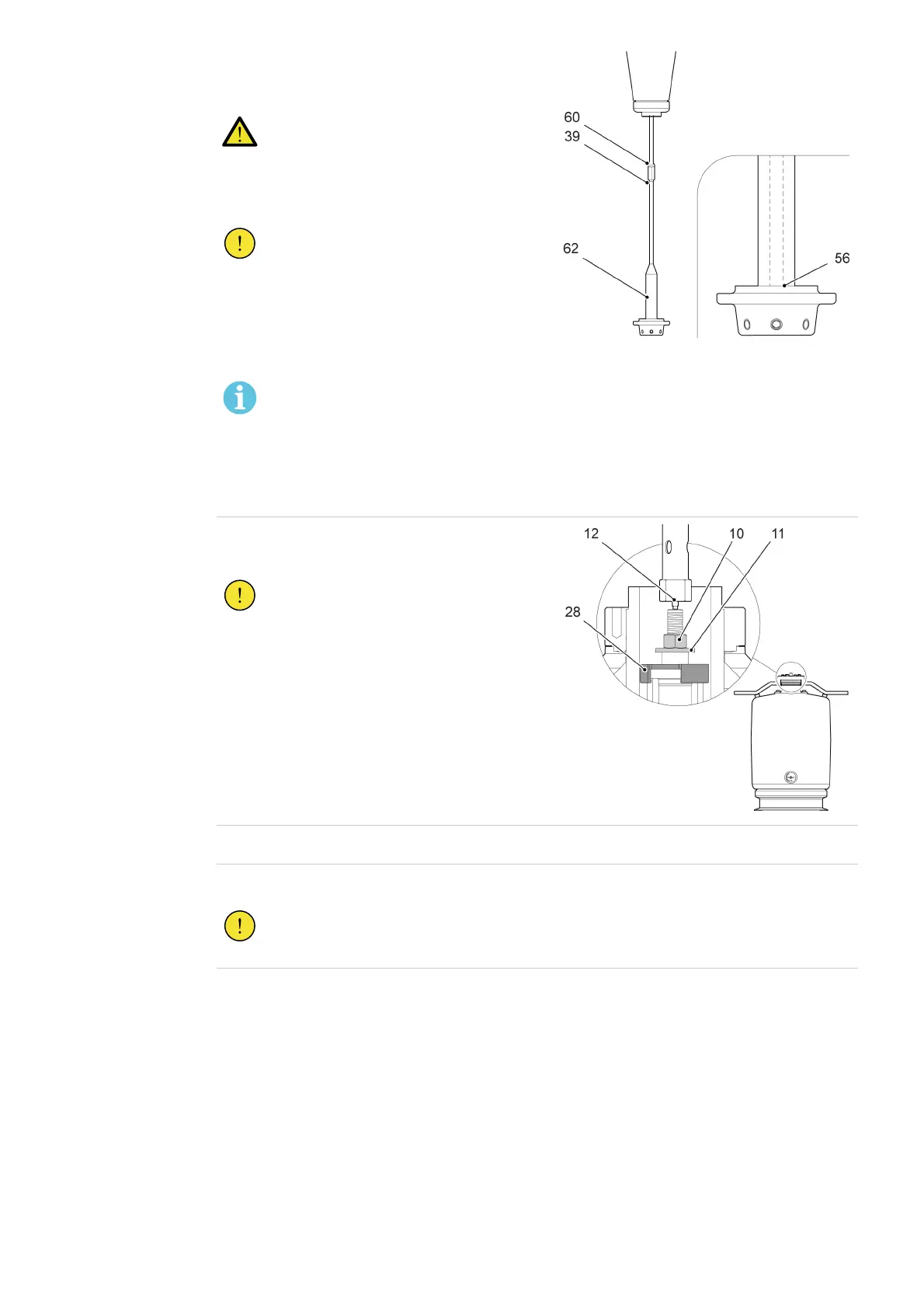

7. Disassemble the draw rod at the lower joint (39).
Use the key grip on the lower draw rod.
DANGER!
Make sure that the upper draw rod
does not fall down when the lower
joint (39) is disassembled.
CAUTION!
Do not disassemble the joint (60), this
increases the risk of incorrect
assembly.
The joint (60) is locked with
tread-locking fluid grade 42.
NOTE!
The bushing can have an optional joint,
or the bottom contact unlocked (56),
refer to the specifications for your
bushing.
The guiding cone (62) is loose.
G005033
8.
Pull up the draw rod, and install the washer (11)
and nut (10).
CAUTION!
Make sure that the centering ring (28)
is in position, it is necessary for the
correct installation of the draw rod.
G004300
9.
Remove the pull-through cord (12).
10.
Lower the bushing to the floor.
CAUTION!
Make sure that there is soft bedding, or support blocks on the floor.
