8
Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
Terminal system
The bushing can be configured with one of two terminal systems: the draw-lead system, or the draw-rod
system.
The draw-rod system can be configured with a small, or a large bottom contact.
Terminal system Option
Draw-lead system -
Draw-rod system Small bottom contact
Large bottom contact

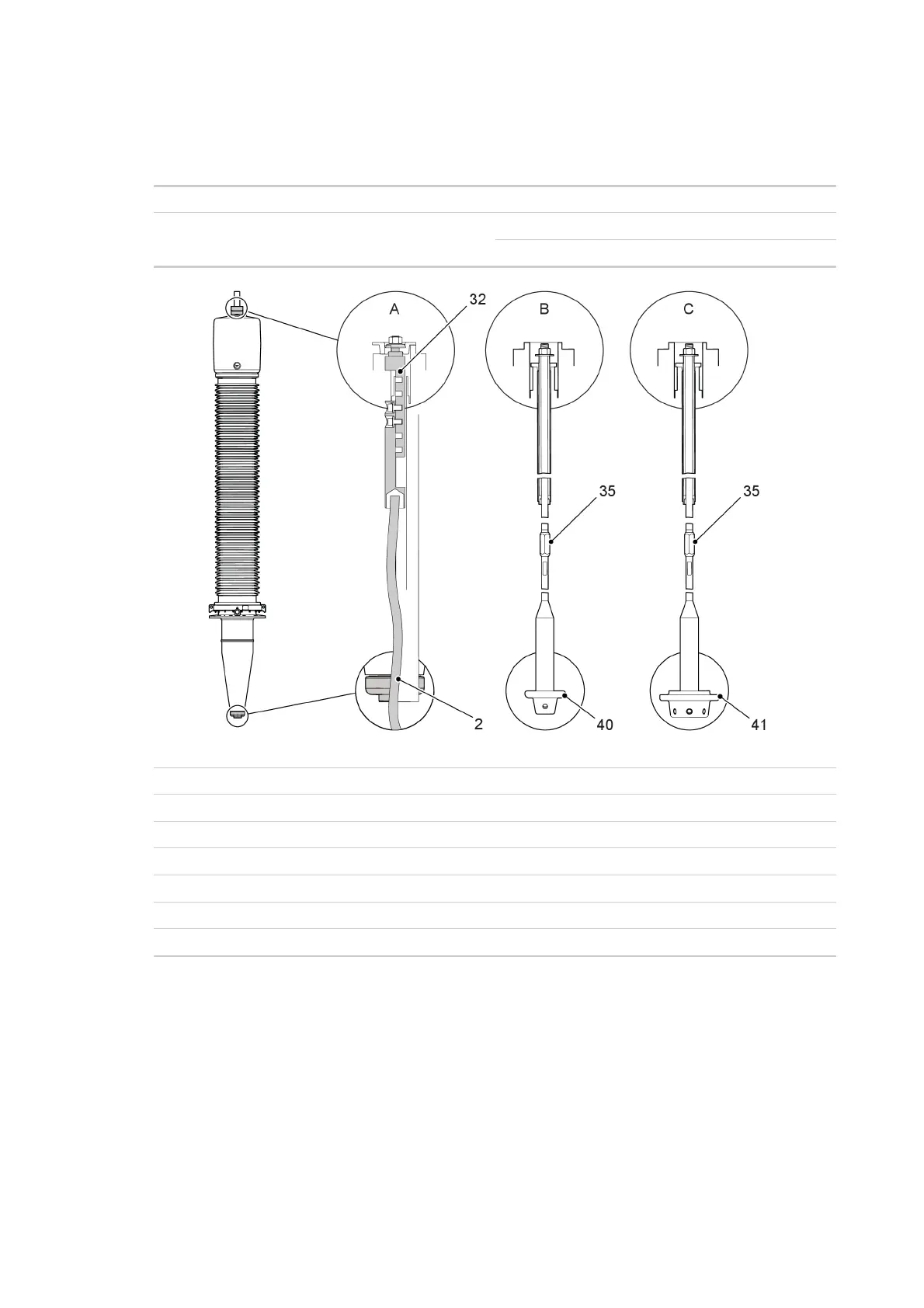

G004488
A Draw-lead system
B Draw-rod system with small bottom contact, N1 = 4
C Draw-rod system with large bottom contact, N1 = 6
2 Draw lead
32 Inner terminal
35 Draw rod
40 Small bottom contact, N1 = 4
41 Large bottom contact, N1 = 6
