Operation Manual / TPR56-F + TPR61-F
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2490_EN Revision D May 2018
u Fit screw (61059) with Verbus Ripp® washers (61058) and two nuts
(61064) and tighten evenly.
u Remove the lifting gear.
If provided:
u Screw in the speed sensor (86505) complete with its O-ring (86506)
and plug in the cable connector (86515).
u Fit O-ring (42012).

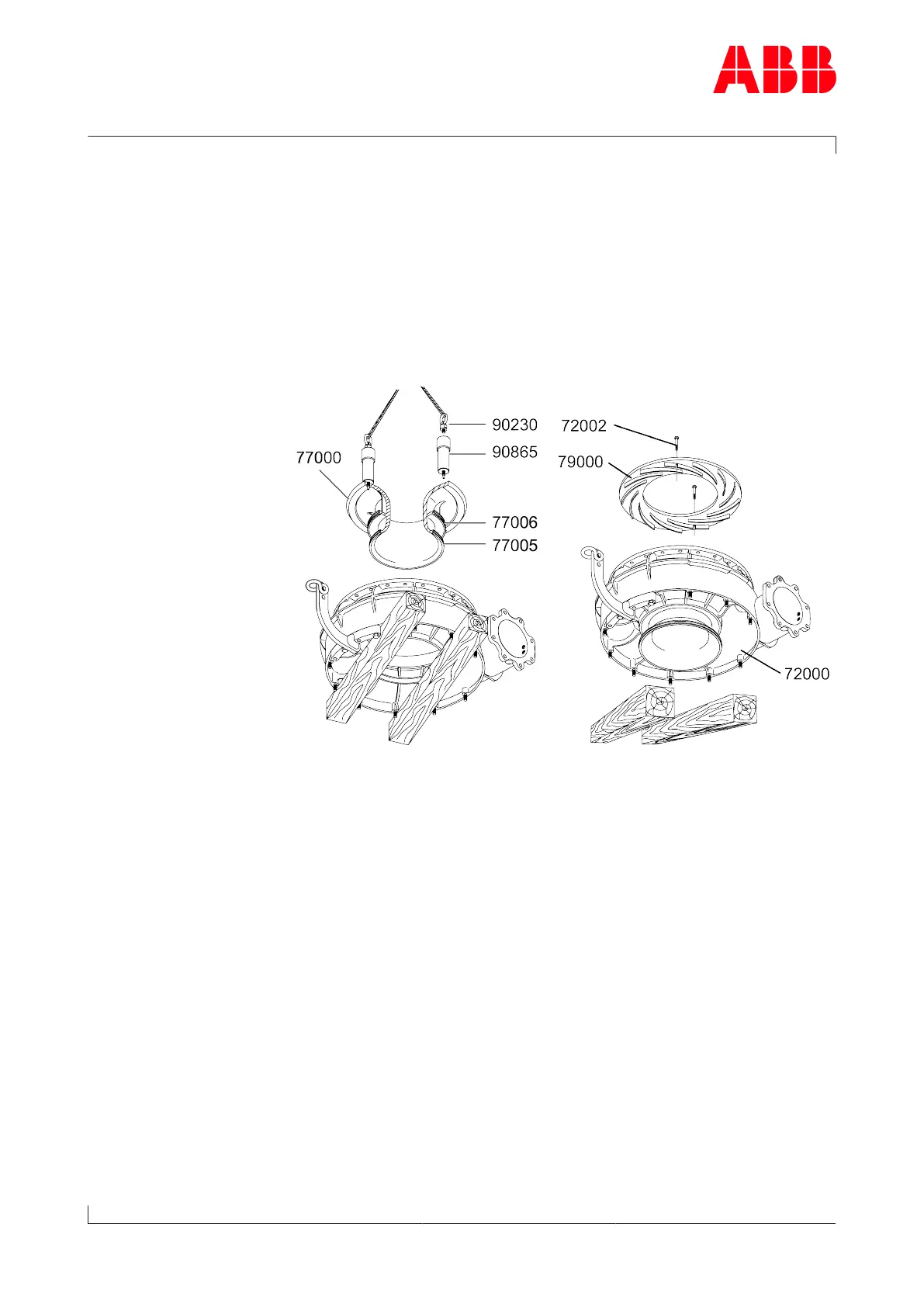

8.7.1 Fitting compressor casing
u Fit O-rings (77005 & 77006).
u Fit lifting gear, swivel lifting eye (90230) and plug bolt (90865).
u Align the wall insert (77000) to the threaded holes in the compressor
casing (72000) using the lugs on the swivel lifting eyes, then lower it.
u Fit the diffuser (79000).
u Screw in the screw (72002) as far as it will go and then unscrew it by
¼ turn. The screw must be loose and the diffuser must be movable.
