Operation Manual / TPR56-F + TPR61-F
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2490_EN Revision D May 2018

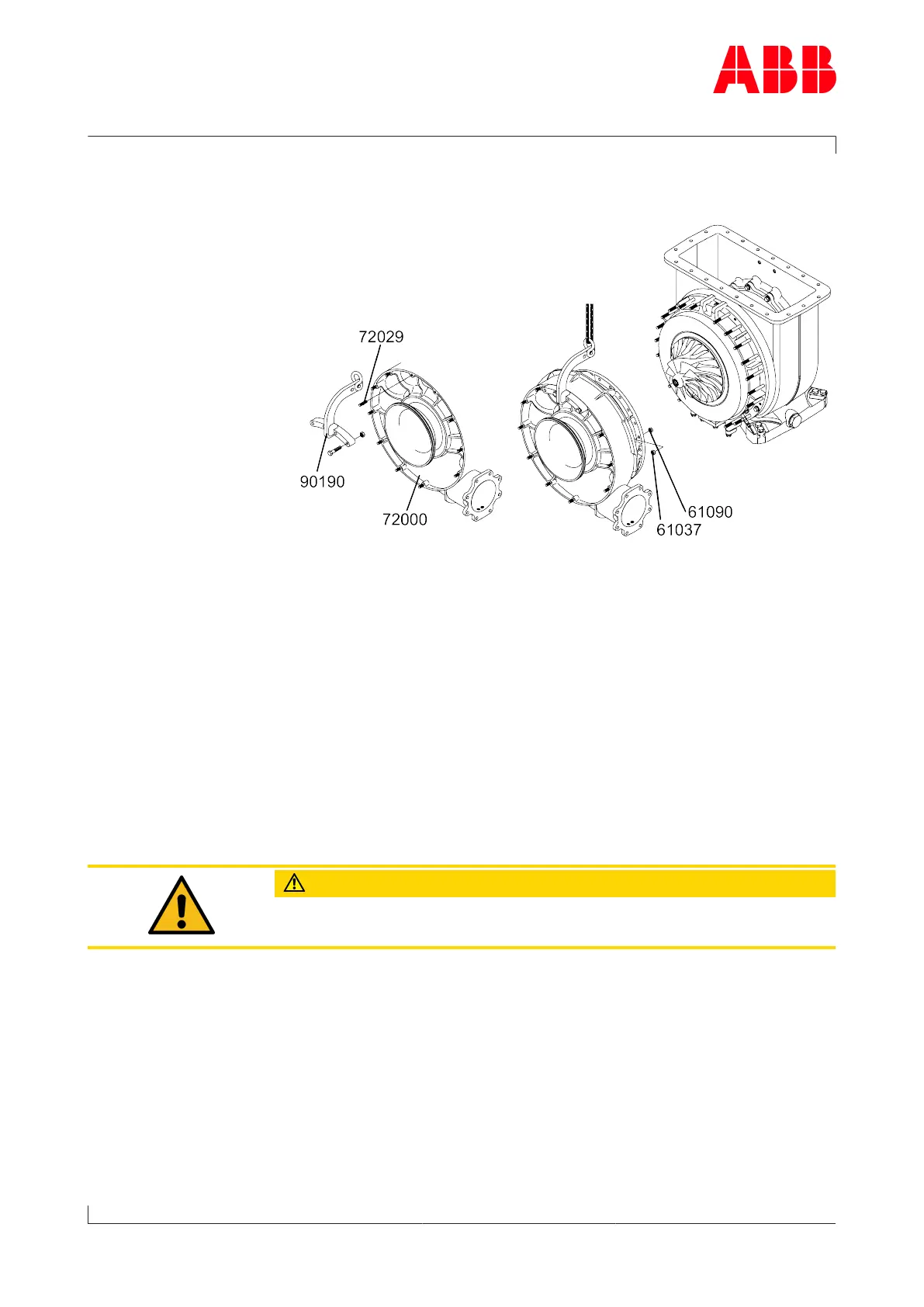

8.7.2 Installing compressor casing
u Attach lifting gear to shackle of lifting device(90190) and turn com-
pressor casing(72000).
u Fit three press-off nuts(61090) to studs of bearing casing, equally
distributed around the circumference, and screw on by hand until end
of thread is reached.
u Push compressor casing(72000) fully onto cartridge group and se-
cure using nuts(61037).
u Secure three press-off nuts(61090) against compressor cas-
ing(72000) by tightening them to specified torque (see chapter Table
of tightening torques).
u Remove lifting device(90190).
u Measure and note the axial clearance (A) (see the section on axial
clearance).
CAUTION
If the axial clearance (A) is out of tolerance, an ABB Turbocharging Ser-
vice Station must be contacted.
u Fit air suction branch or filter silencer using nuts(72027) and wash-
ers(72018) (see section 8.3).
u Connect oil pipes and all air lines in accordance with enginebuilder
specifications.
Page 69 / 79
