4. Position the compressor casing(72000).
Tighten nuts (61037) crosswise.
5. Remove lifting device (90190 / 90195).
6. Tighten the three press-off nuts (61090) against compressor casing (72000) by applying
the corresponding tightening torque.

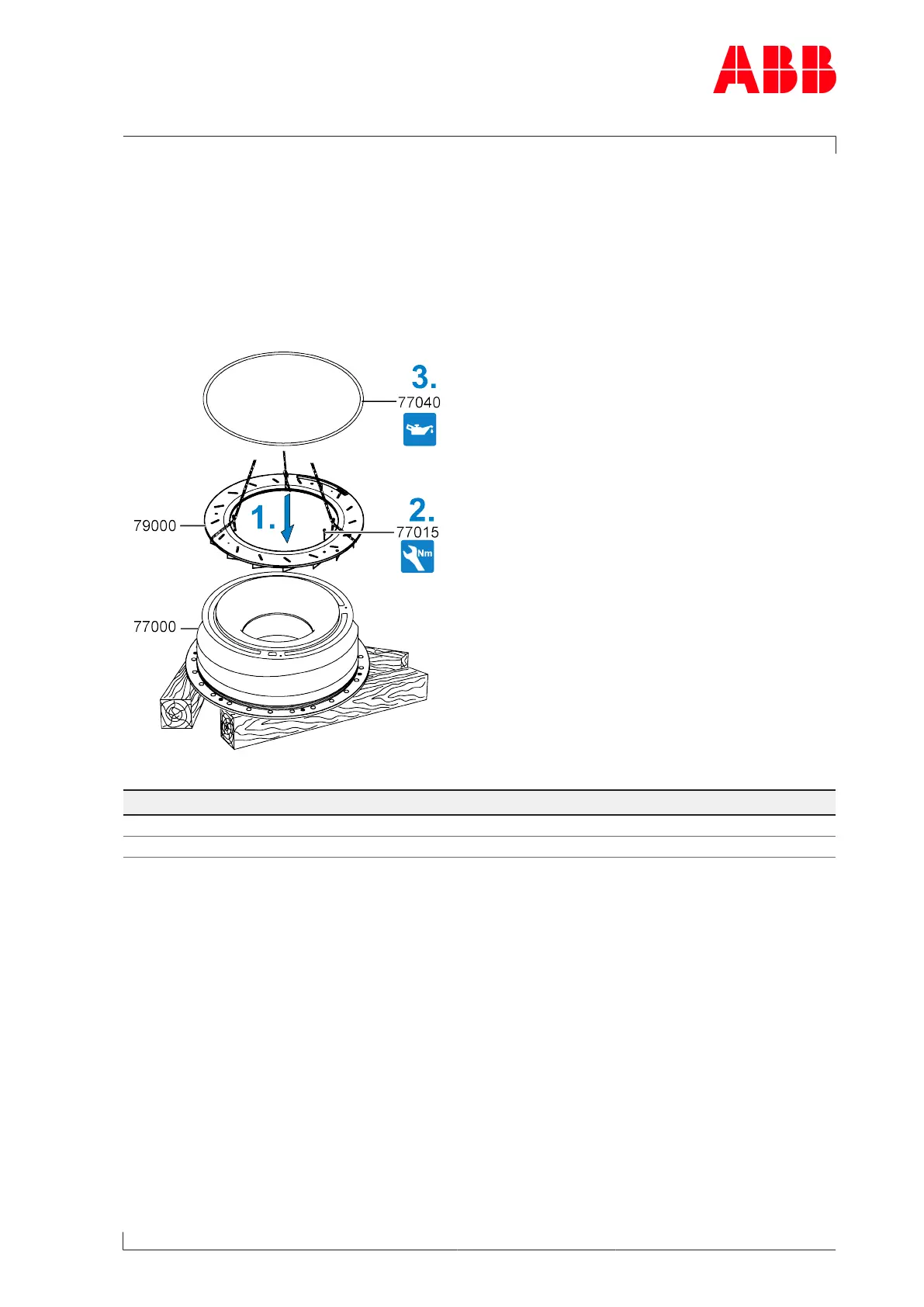

Installing diffuser
Fig.61: Installing diffuser
Product Size Tightening torque [Nm]
A170-M M5 6
A175-M M6 10
Table47: Tightening torque (77015)
1. Loop around diffuser (79000) with lifting gear and position it on the wall insert (77000).
2. Attach diffuser with screws (77015).
3. Grease the new O-ring (77040) and fit it.
Page 105 / 146
