ABB HT613213 - Fig. 38: Transporting and Turning Wall Insert

Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.5 Removing the compressor casing
© Copyright 2022 ABB. All rights reserved. HZTL4033_EN Rev.K January 2022

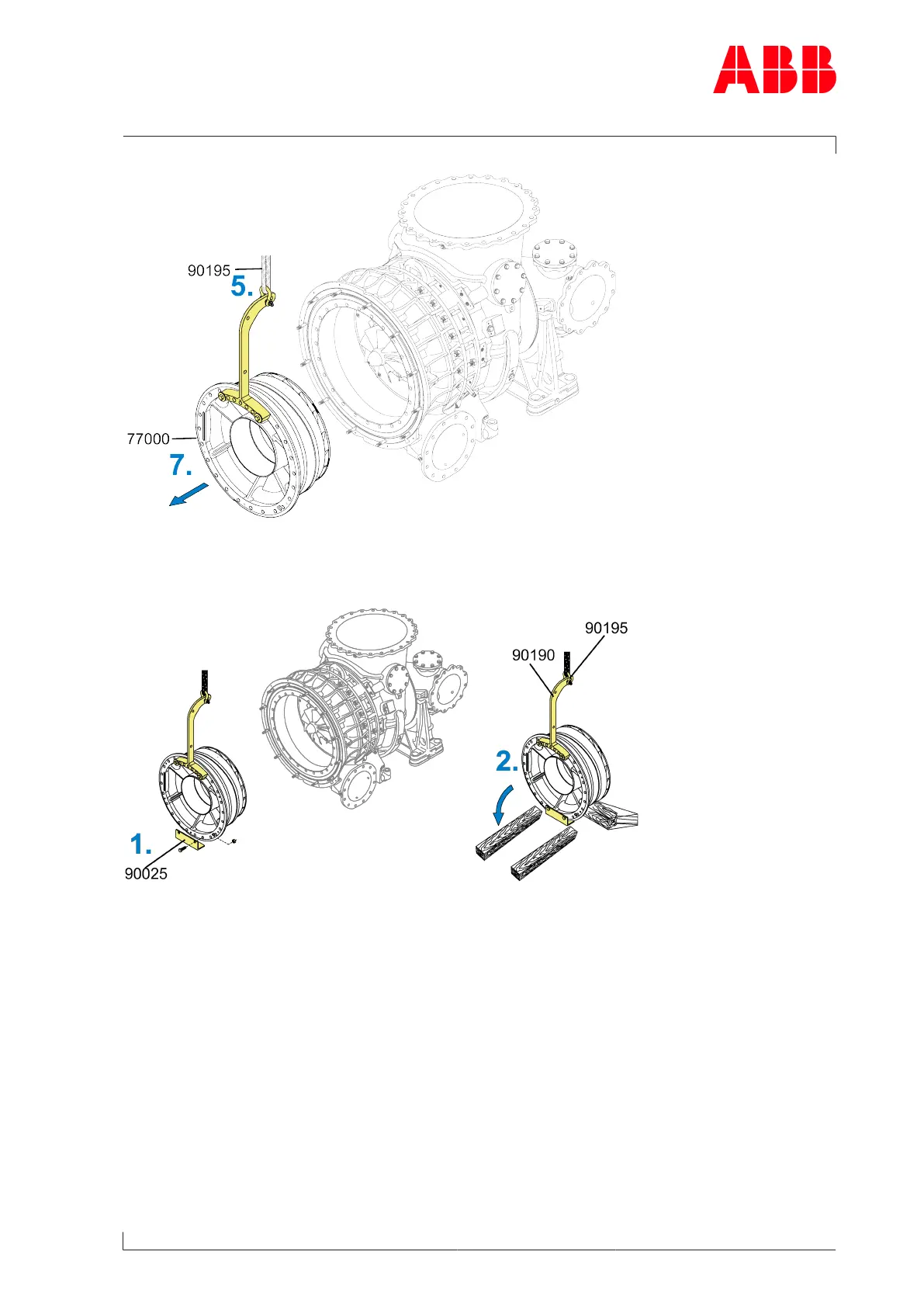

7. Pull out wall insert(77000).
Transporting and turning wall insert
Fig.38: Transporting and turning wall insert
1. Fit support angle (90025) with bolts and nuts.
2. Carefully turn wall insert over support angle (90025) and place on supports.
u Place wall insert such that lifting device (90190/90195) can be removed.
Page 83 / 146
