Fixing clamping nuts

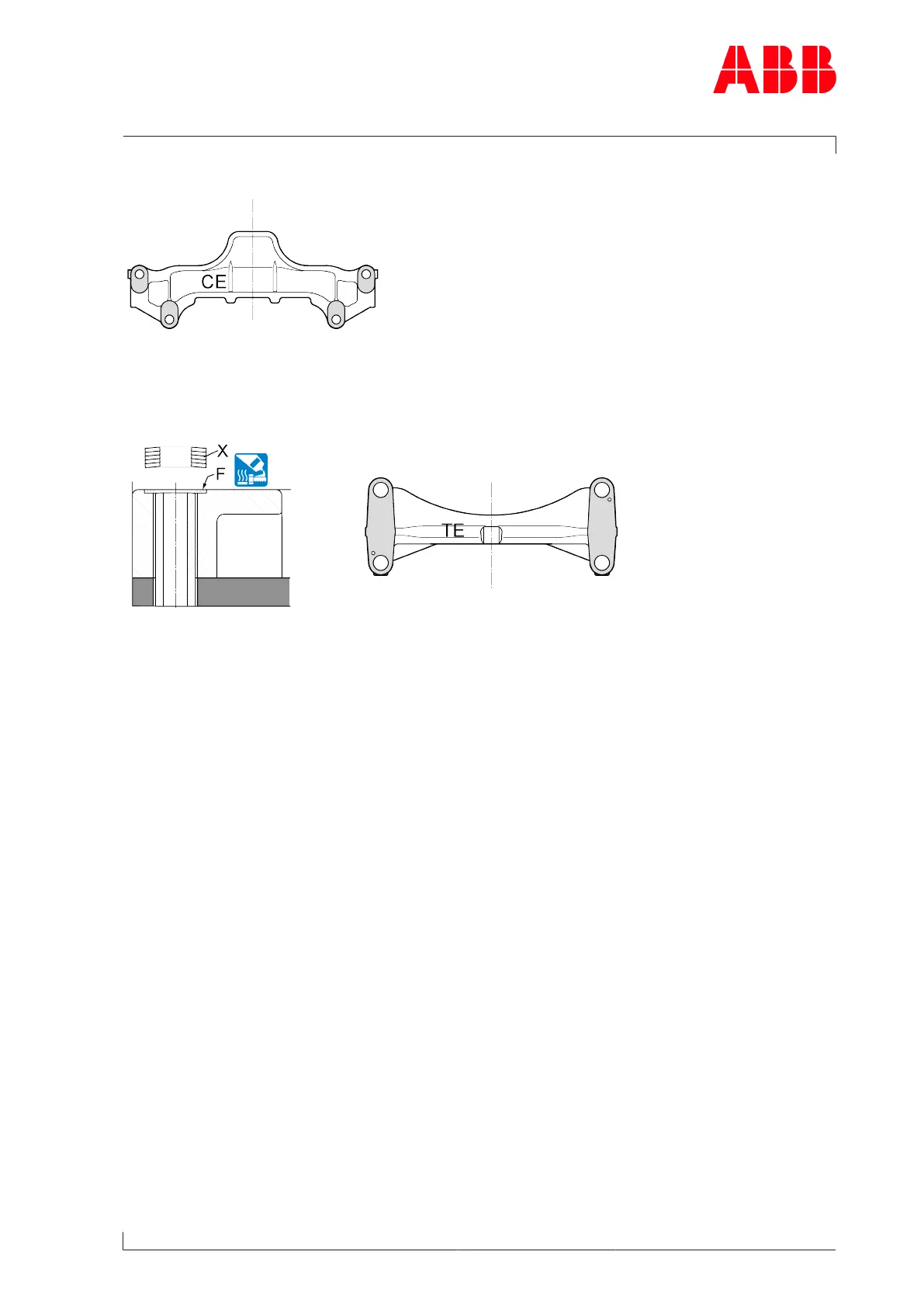

Fig.19: CE foot contact surface
u Tighten clamping nuts on compressor end (CE) (see Tightening the clamping nut →36).
Fig.20: TE foot: Handling of cup spring contact surface / foot contact surface
u Grease the contact surface (F) for the cup springs (X) (see Table5: Foot screws, dimen-
sion and strength class →34) on the foot of the turbine end (TE) with high-temperature
grease.
u Tighten clamping nuts on turbine end (TE) (see Tightening the clamping nut →36).
