Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.7 Removing the nozzle ring
© Copyright 2022 ABB. All rights reserved. HZTL4033_EN Rev.K January 2022

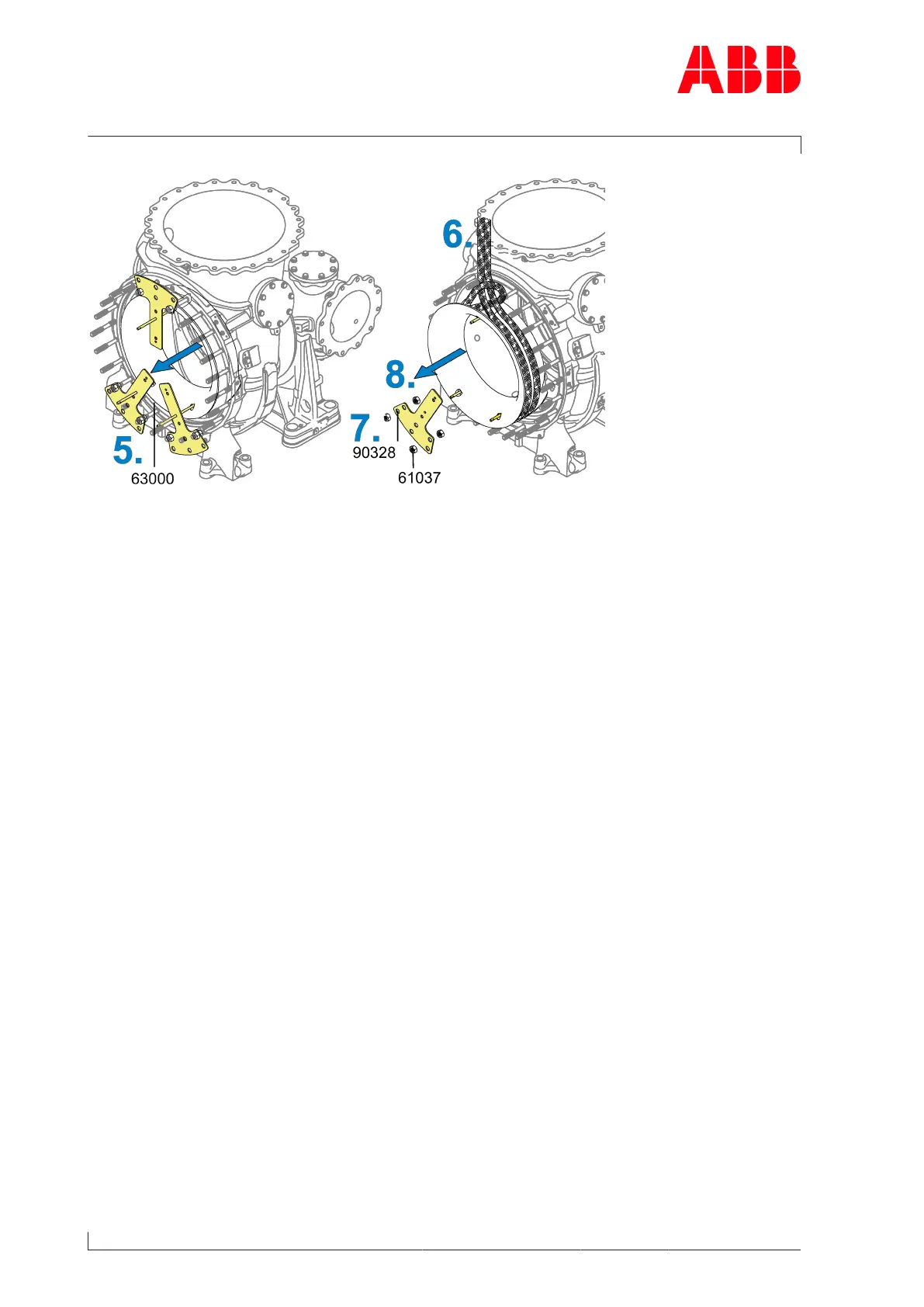

Fig.45: Removing turbine diffuser 2
5. Pull turbine diffuser (63000) out as far as it will go at guide plates.
6. Loop around turbine diffuser and secure to lifting gear.
7. Remove nuts (61037) and guide plates (90328).
8. Completely pull out and put down turbine diffuser.
Page 90 / 146
