Operation Manual / A170-M.. - A175-M..
6 Operation and service / 6.1 Noise emission
© Copyright 2022 ABB. All rights reserved. HZTL4033_EN Rev.K January 2022
Suggestion for noise insulation, bellows

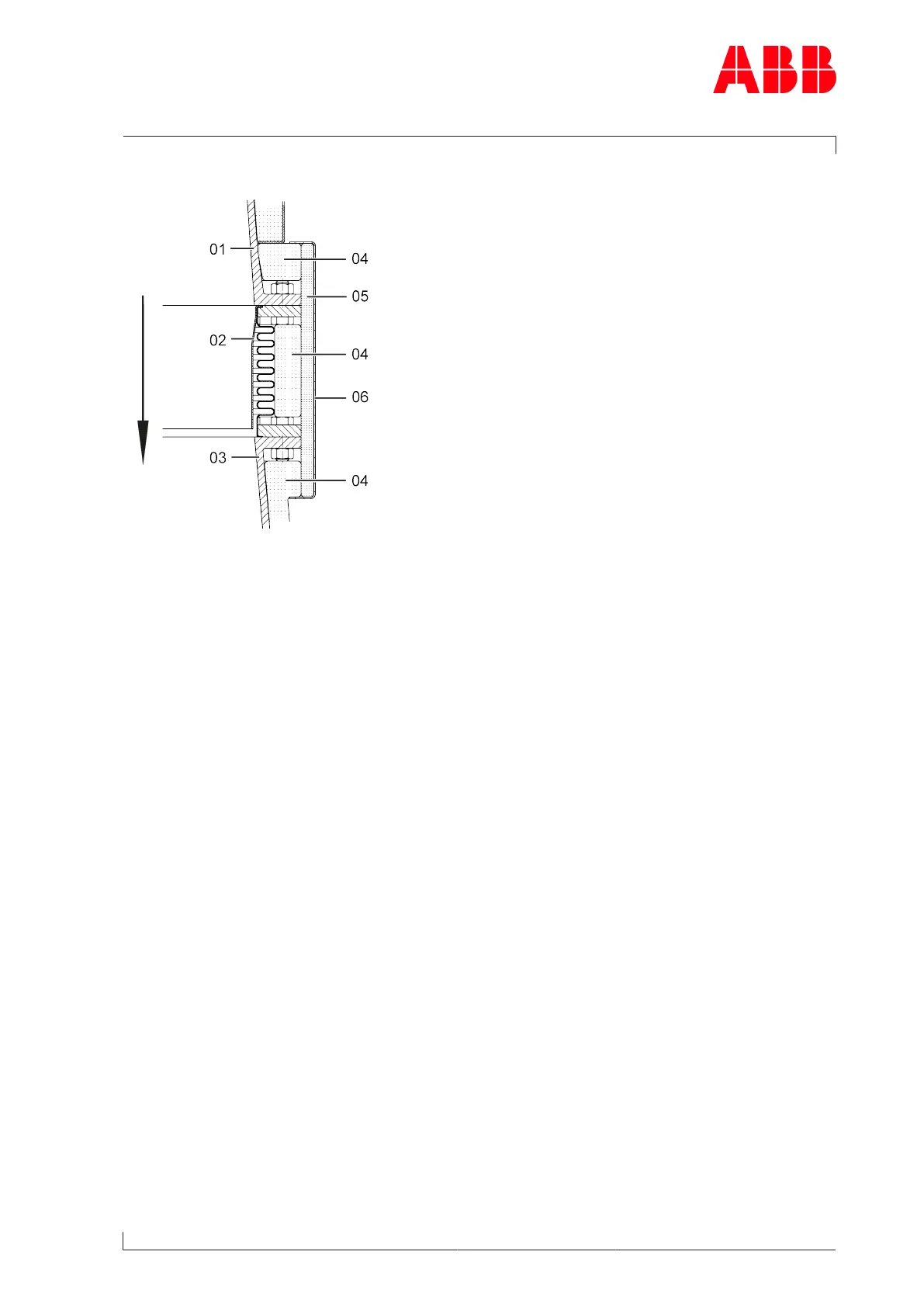

Fig.25: Noise insulation, bellows
01 Compressor casing
02 Bellows
03 Charge air duct / scavenging air duct
04 Insulation cushion
05 Insulation mat (at least 15 mm)
06 Sheet metal cover
Page 47 / 146
