Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.5 Removing the compressor casing
© Copyright 2022 ABB. All rights reserved. HZTL4033_EN Rev.K January 2022
Removing the diffuser

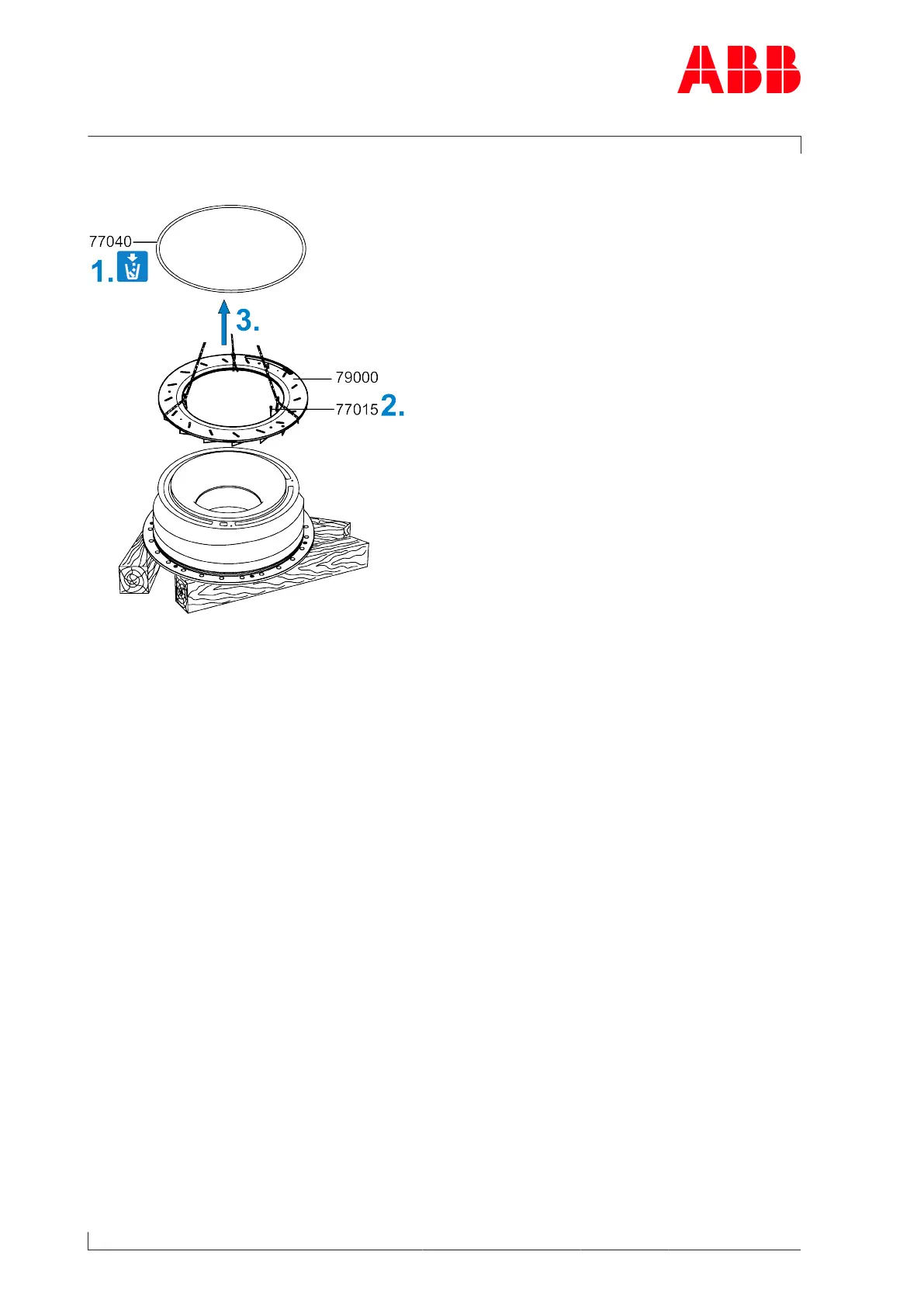

Fig.39: Removing the diffuser
1. Remove and dispose of the O-ring (77040).
2. Loosen and remove screws(77015).
3. Loop lifting gear around diffuser (79000) and remove diffuser.
Page 84 / 146
