9 Disassembly and assembly / 9.6 Removing the cartridge group
© Copyright 2022 ABB. All rights reserved. HZTL4033_EN Rev.K January 2022

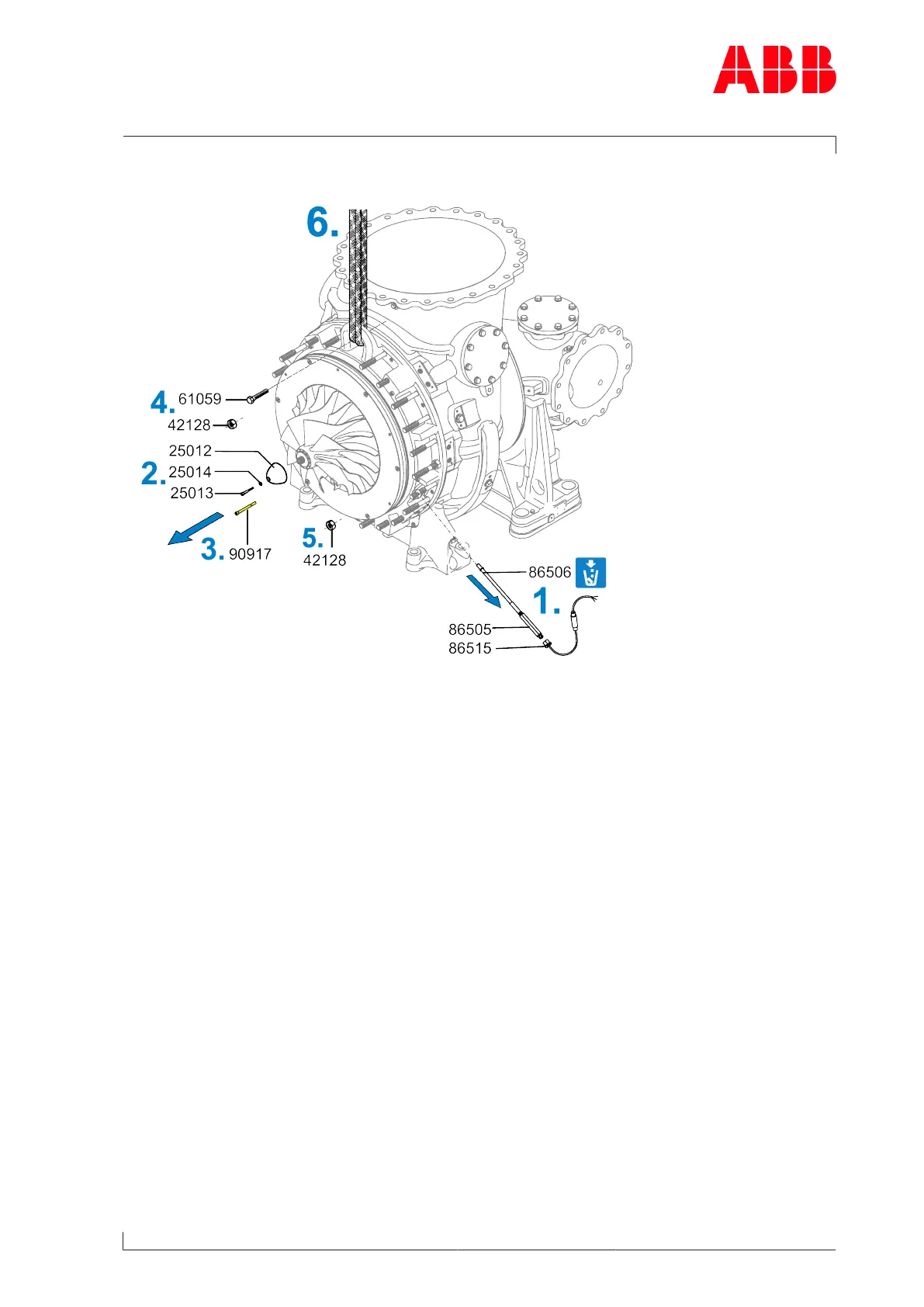

Fig.42: Removing cartridge group 1
1. Unplug cable connector (86515) and unscrew speed sensor (86505) with O-ring (86506).
Dispose of the O-Ring(86506).
2. Loosen socket screw(25013) and remove washer(25014).
3. Press off the spinner nose cone(25012) using the press-off screw(90917).
4. Loosen and remove the screw (61059).
5. Loosen and remove nuts (42128).
6. Attach lifting gear to bearing casing.
