Operation Manual / A170-M.. - A175-M..
3 Removal and installation / 3.3 Installing the turbocharger
© Copyright 2022 ABB. All rights reserved. HZTL4033_EN Rev.K January 2022
3.3 Installing the turbocharger
WARNING
Risk of tipping
If the turbocharger is not sufficiently supported or not supported at all dur-
ing removal and installation, it may tip over and cause severe injury to per-
sonnel or accidents resulting in fatalities.
u Support the turbocharger at a suitable location.
u Secure with lifting gear wherever possible.

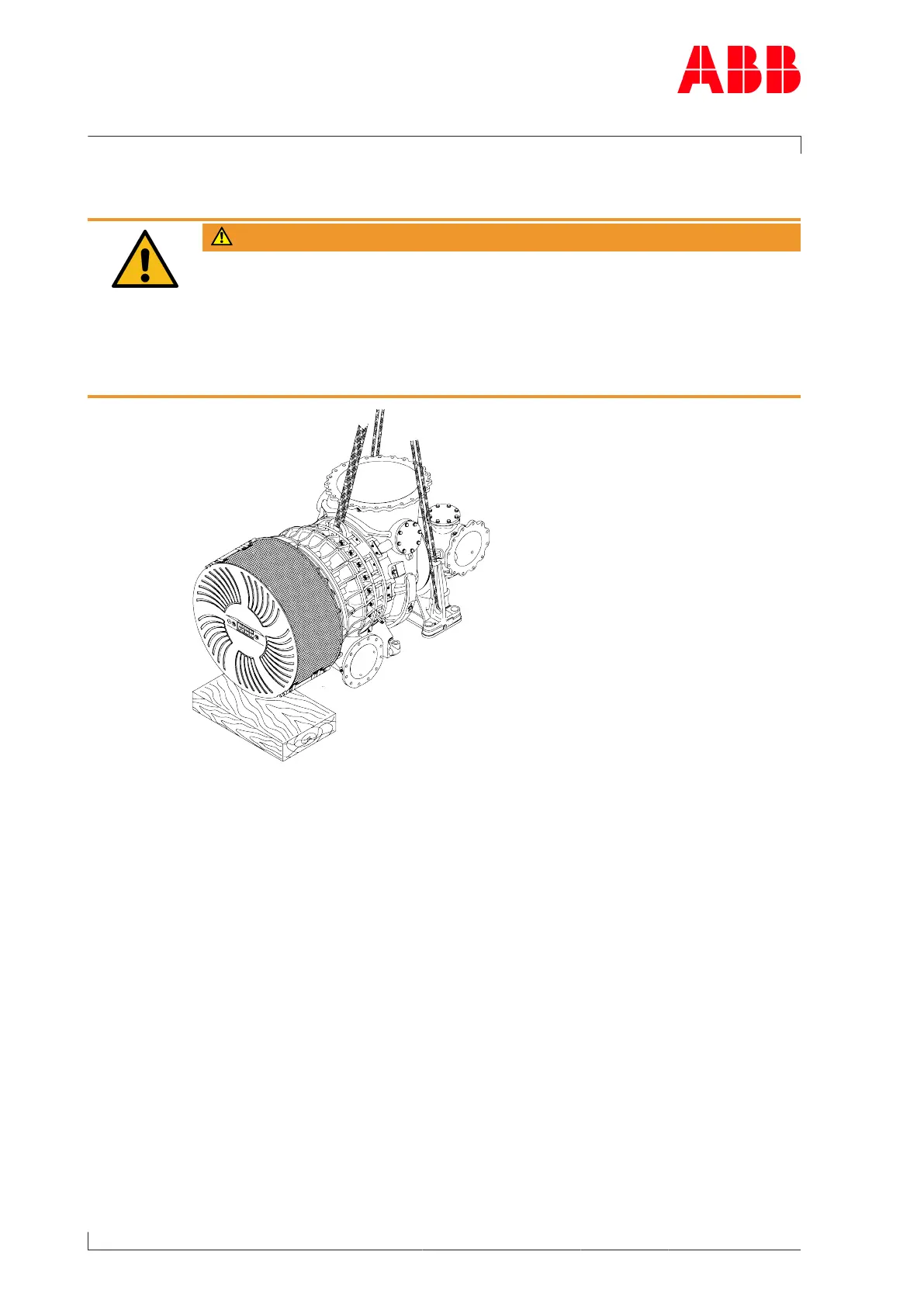

Fig.15: Turbocharger suspension points
u If present: Remove insulation segment on the bearing casing.
u Attach lifting gear to the suspension lug of the bearing casing and the turbine-end foot.
u Remove the covers from the oil connections.
u Align turbocharger and place on bracket.
Page 32 / 146
