3.2 Removing the turbocharger
WARNING
Risk of tipping
If the turbocharger is not sufficiently supported or not supported at all dur-
ing removal and installation, it may tip over and cause severe injury to per-
sonnel or accidents resulting in fatalities.
u Support the turbocharger at a suitable location.
u Secure with lifting gear wherever possible.
u If present: Loosen cable to speed sensor.
u Disconnect all gas, air and lubricating oil pipes.

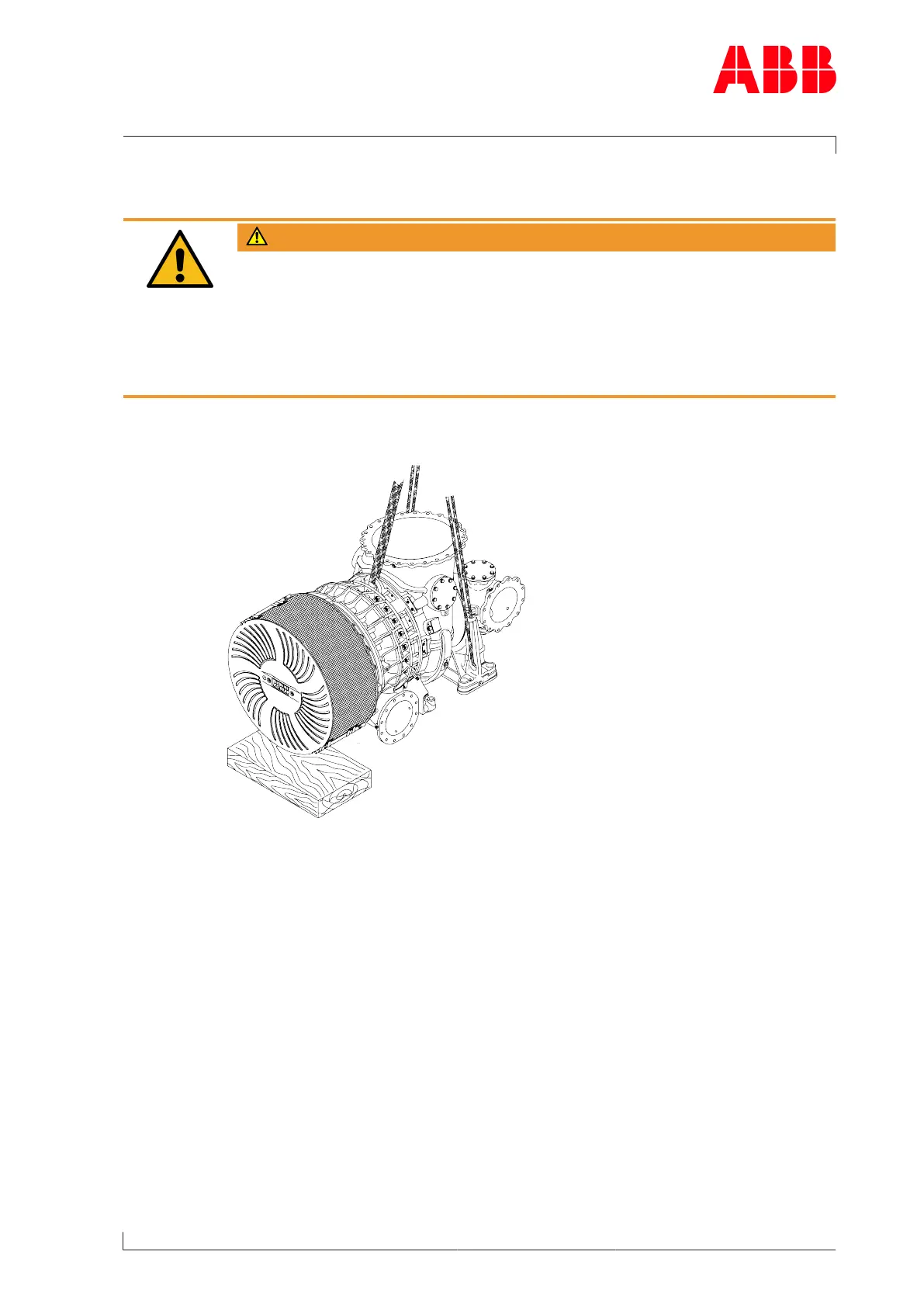

Fig.12: Turbocharger suspension points
u If present: Remove insulation segments on bearing casing and feet.
u Attach lifting gear to the suspension lug of the bearing casing and through the boles on
the turbine-end foot.
