ABB LST400 - 7 Working with the Key Pad in Run Mode

LST400 | ULTRASONIC LEVEL TRANSMITTER | OI/LST400-EN REV. E
16
7 Working with the key pad in run mode
In run mode the
ENTER
key has an alternative function.

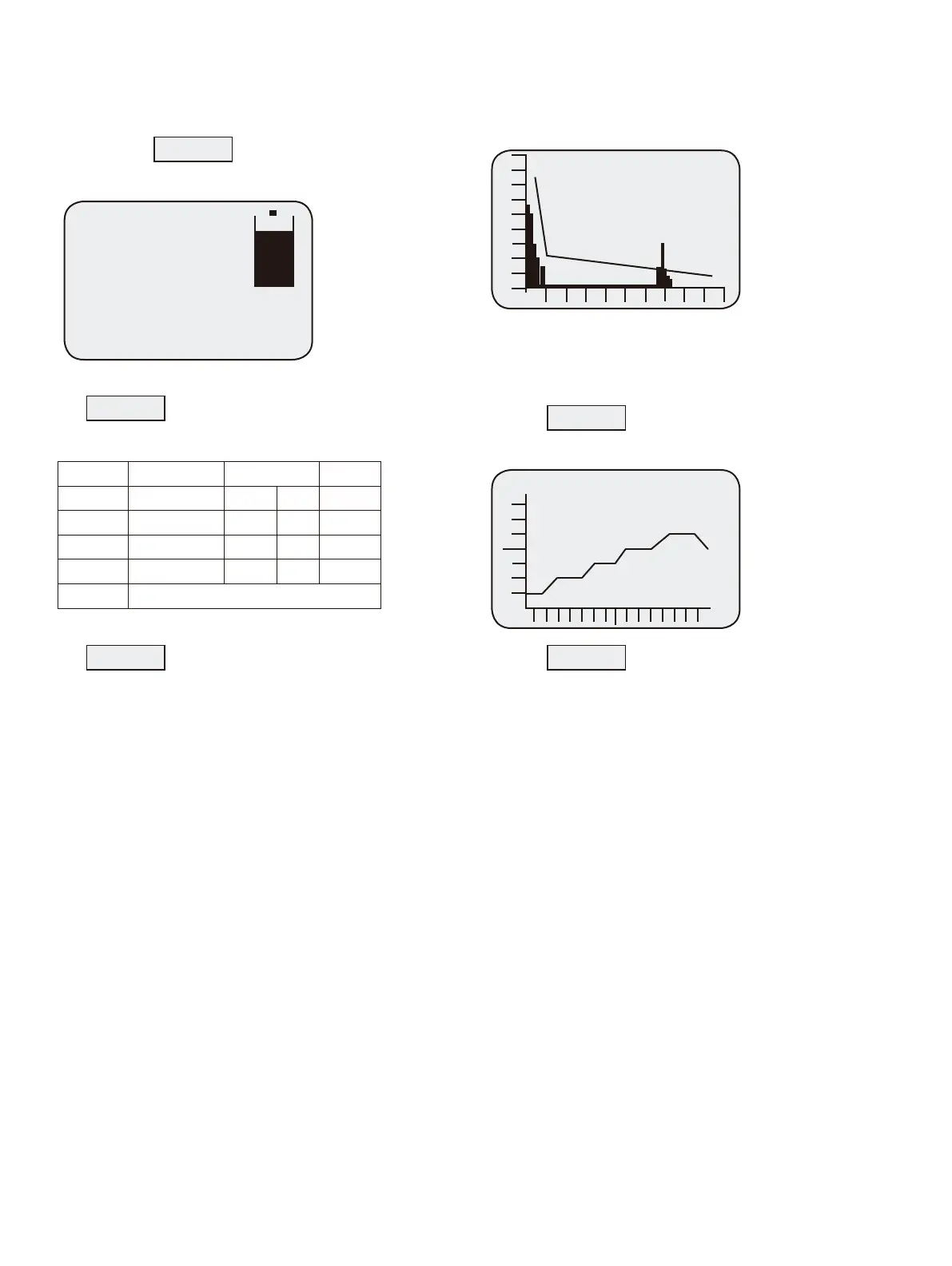

While in run mode the screen looks similar to the following:
Dist. 6.00 ft
mA Output: 7.20mA
Instant: 6.00 ft
Temperature: 20°C
Percentage: 20.00%
Press
ENTER
once. The screen changes to the status
screen of the relays.
Relay State Hour Cycles
REL 1: OFF LO 0 2
REL 2: ON HI 1 2
REL 3: ON HI 3 5
REL 4: OFF LO 0 0
REL 5: INACTIVE
Press
ENTER
again and the screen goes to the graphic
echo screen
E
ft
2v
E 0.4
D 39
G 99
P 15
49.0
mA Output Screen
Note: The screen reverts back to normal run mode within 2
minutes
Pressing
ENTER
again while in the onscreen KScope
screen will revert the screen into normal run mode.
4
20
t
Pressing
ENTER
again while in the graphic echo screen
screen will revert the screen into normal run mode.
