LST400 | ULTRASONIC LEVEL TRANSMITTER | OI/LST400-EN REV. E
21
Before setting up the linearizer, check all other parameters are
calculated for your application.
• Scroll through the menus with either the
SCROLL
or
ENTER
until the menu SETUP LINEARIZER appears.
• Use
to select YES and then press
ENTER
• A prompt ACTIVATE LINEARIZER will appear. Use
to select YES and then press
ENTER
• Set up each of the 21 points of the linearizer as needed by
using
and then pressing
ENTER
when
the correct value is entered in each point of the linearizer.
• When finished press
RUN
Shown to the left is what LST400 will display on the above
application. The analogue output should be approximately
18.80mA.
Level 13.94 ft
mA Output: 18.80mA
Instant: 2.46 ft
Temperature: 20°C
Percentage: 92.50%

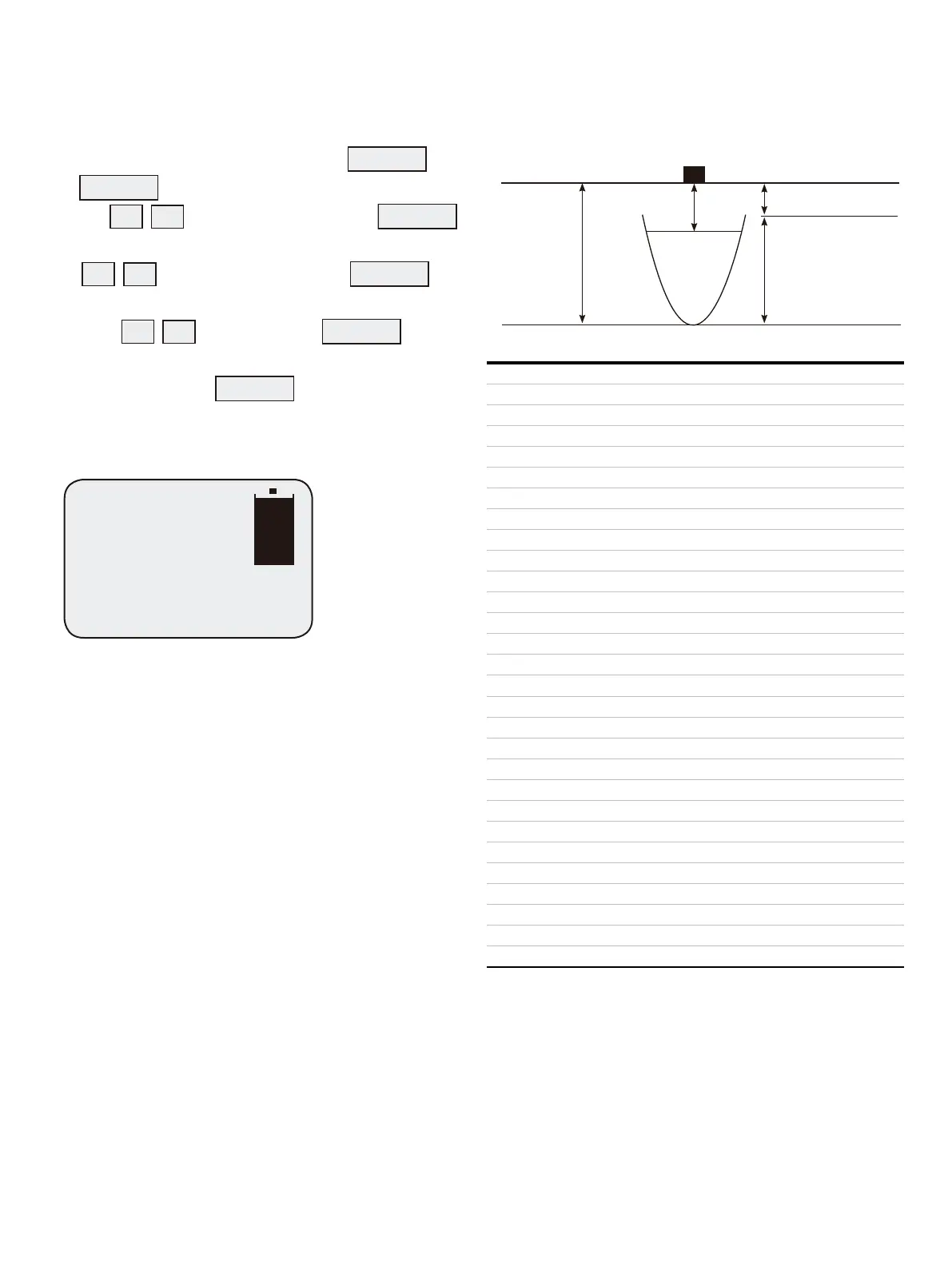

Level measurement using the lineariser
function with a non-linear vessel
Empty distance
16.5 ft / 5.00 m
2.46 ft / 0.75 m
Span 14.85 ft / 4.50 m
Security code
Mode LEVEL
Empty distance
Span
Blanking
Rate of change
Setup lineariser YES
Activate lineariser YES
To Next Page
