LST400 | ULTRASONIC LEVEL TRANSMITTER | OI/LST400-EN REV. E
17

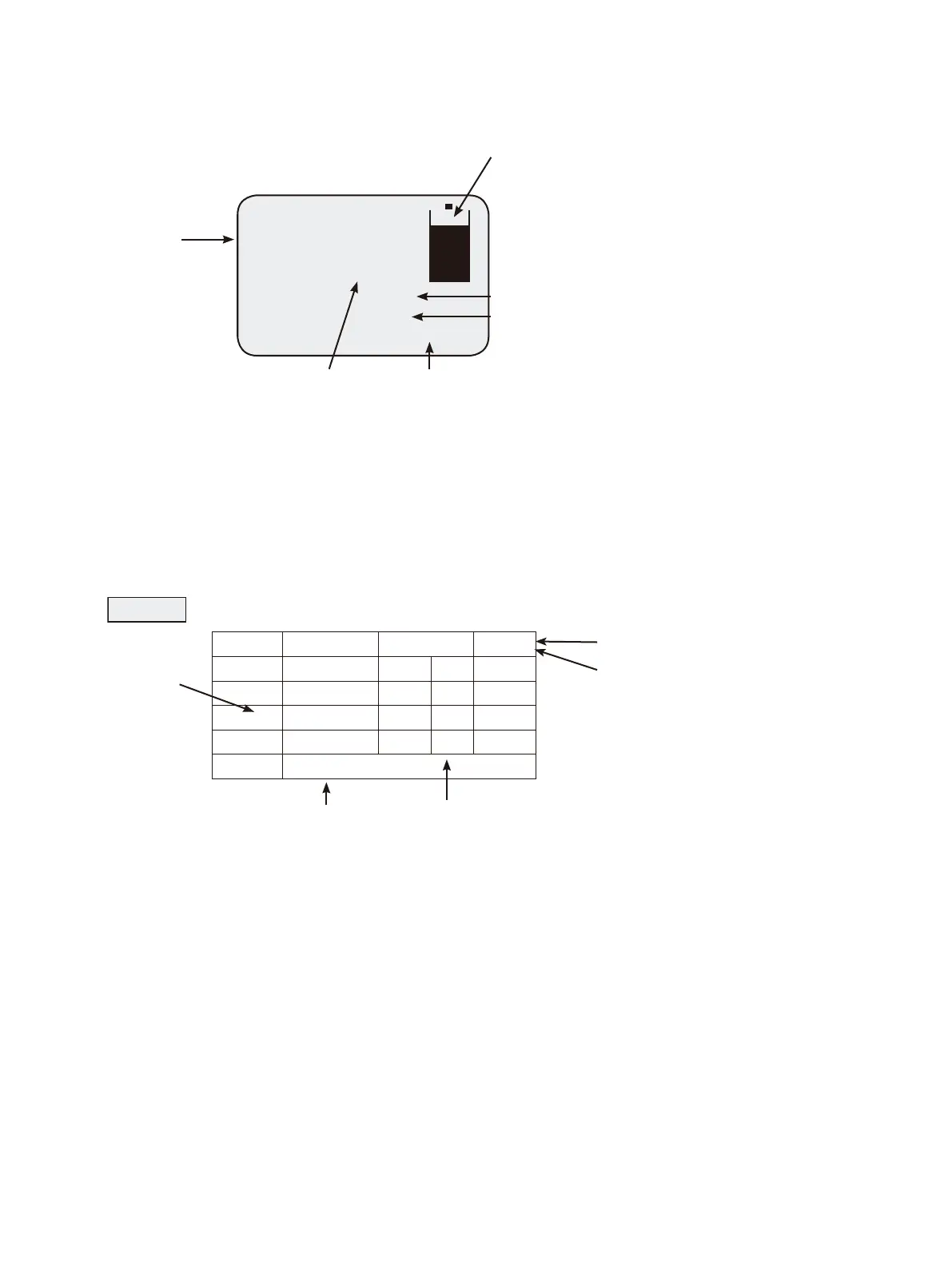

Run mode screen in distance/level mode
Dist. 6.00 ft
mA Output: 7.20mA
Instant: 6.00 ft
Temperature: 20°C
Percentage: 20.00%
1 Graphical representation
of percentage fill.
2 Instantaneous distance
3 Temperature of transducer
5 mA Output 4 Percentage fill
6 Distance /
Level
Measurement
1 The graphical representation of the percentage fill of the
application.
2 The instantaneous distance that the instrument is
measuring at that specific time. Please note that this value can
change on each pulse.
3 The temperature, which is being measured at the
transducer, if temperature compensation has been enabled.
4 The value of percentage fill of the instrument.
5 The mA output of the instrument.
6 The average Distance/Level value which is calculated.
The relay state screen
Pressing
ENTER
while in run mode to get the RELAY STATE SCREEN.
Relay State Hour Cycles
REL 1: OFF LO 0 2
REL 2: ON HI 1 2
REL 3: ON HI 3 5
REL 4: OFF LO 0 0
REL 5: INACTIVE
1 Description of column
2 Number of cycles
3 Hours relay has been on
4 Relay state
5 Relay number
1 Relay state headings.
2 The number of cycles each relay has been through.
3 The number of hours each relay has been on.
4 The state at which the relay is at ON, OFF, HI, LO and CO-Counter.
5 The relay indication number.
