Information. THE FOLLOWING PARAMETERS REQUIRE ‘LEVEL 1’ OR ‘LEVEL 2’ ACCESS.
(Enter passwords in ‘Login En’ parameter above).
✶
Information. ONLY one unit at a time
can be selected.
✶
Information. ONLY one unit at a time
can be selected.
✶
Information. ONLY one unit at a time
can be selected.

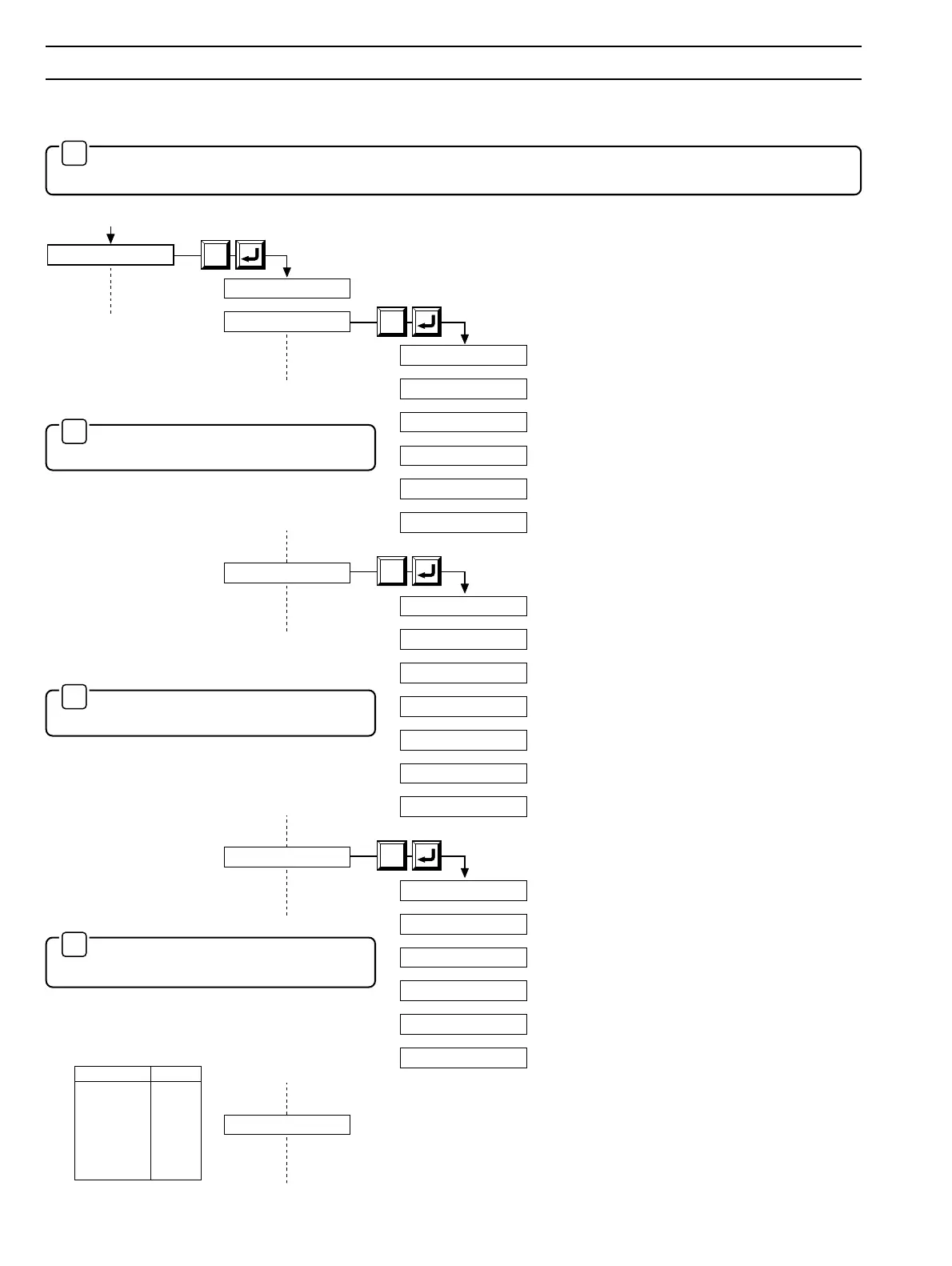

Flow
Flow Unit Ltr
Flow Unit m^3
Flow Unit lgal
Flow Unit Ugal
Flow Unit Cuft
Flow Unit Quit
4
1> 1
2> 0
3> 0
4> 0
5> 0
Q>
4>
Main Menu Sub-menus Remarks
2
Flow Rng 1 >
Flow Mult 3 >
3
Flow Mult m
Flow Mult c
Flow Mult
Flow Mult h
Flow Mult k
Flow Mult M
Flow Mult Quit
1> 0
2> 0
3> 1
4> 0
5> 0
6> 0
Q>
Flow Unit 2 >
Flow Time 4 >
4
Flow Time s
Flow Time Min
Flow Time Hr
Flow Time Dy
Flow Time Wk
Flow Time Quit
1> 1
2> 0
3> 0
4> 0
5> 0
Q>
Flow Rspns 5 >
Display Setting
2
3
4
5
6
7
8
9
Seconds
2
3
4
8
15
30
60
120
#
Enter main full scale (100%) flow range (Upper
Range Value) in selected flow units (see below)
Litres
Cubic metres
Imperial gallons
U.S. gallons
Cubic feet
Enter Q (CR) to return to Flow Menu or (CR)
to cycle around this menu.
Flow unit ‘multiplier’ selection
Milli (0.001)
Centi (0.01)
Unity (1)
Hundreds (100)
Thousands (1000)
Millions (1000000)
Enter Q (CR) to return to Flow Menu or (CR)
to cycle around this menu.
Flow ‘time unit’ selection
Seconds
Minutes
Hours
Days
Weeks
Enter Q (CR) to return to Flow Menu or (CR) to
cycle around this menu.
Nominal Time Constant (seconds) for output.
Enter Display Setting value from table for time constant required.
