MegaFlex 1000 to 1600 UPS User Manual / REV-A

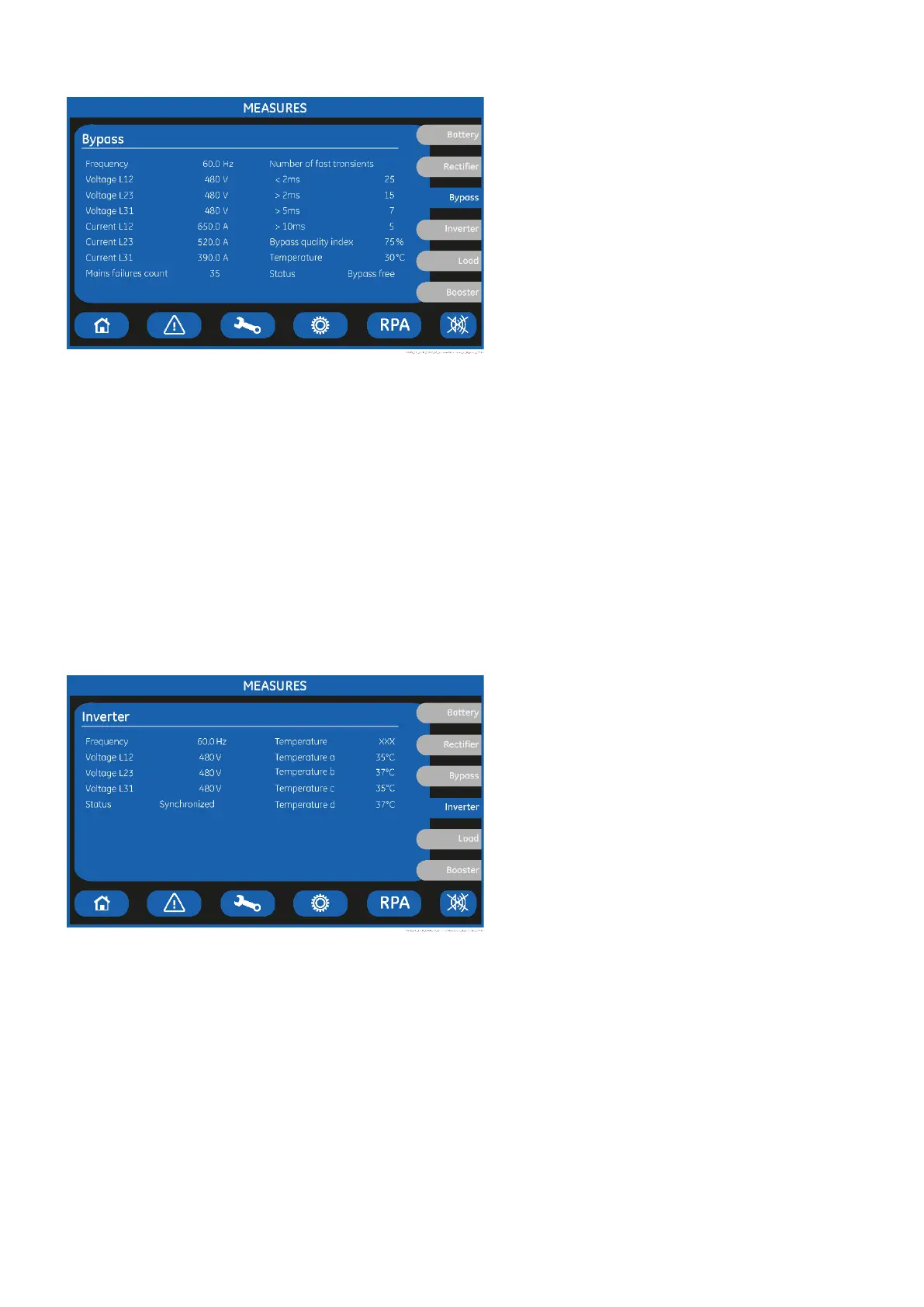

Bypass screen
Frequency
The frequency of the input Utility.
Voltage L12 / Voltage L23 / Voltage L31
3-phase Utility voltage PHASE /PHASE.
Current L12 / Current L23 / Current L31
Input Utility current for the 3-phases.
failure count
The total number of minor Utility faults (Bypass Utility out of tolerance faults).
Number of fast transients
The number of fast transients occurred on the bypass utility on the last seven days.
Bypass quality index
The statistic evaluation in % (100= good; 0= bad) of the Bypass utility.
Temperature
The temperature of the SSM - Static Switch Module (°C/ Alarm).
Status
Bypass status: free / blocked.
Inverter screen
Frequency
The output frequency of the Inverter.
PHASE L12 / Voltage L23 / Voltage L31
3-phase output voltage PHASE/ PHASE.
Status
The synchronization status of the Inverter with
respect to Utility:
- Synchronized.
- Not synchronized.
Temperature
“XXX” indicates disabled function.
Temperature a
The temperature of the Inverter bridge (lower left module).
Temperature b
The temperature of the Inverter bridge (upper left module).
Temperature c
The temperature of the Inverter bridge (lower right module).
Temperature d
The temperature of the Inverter bridge (upper right module).
