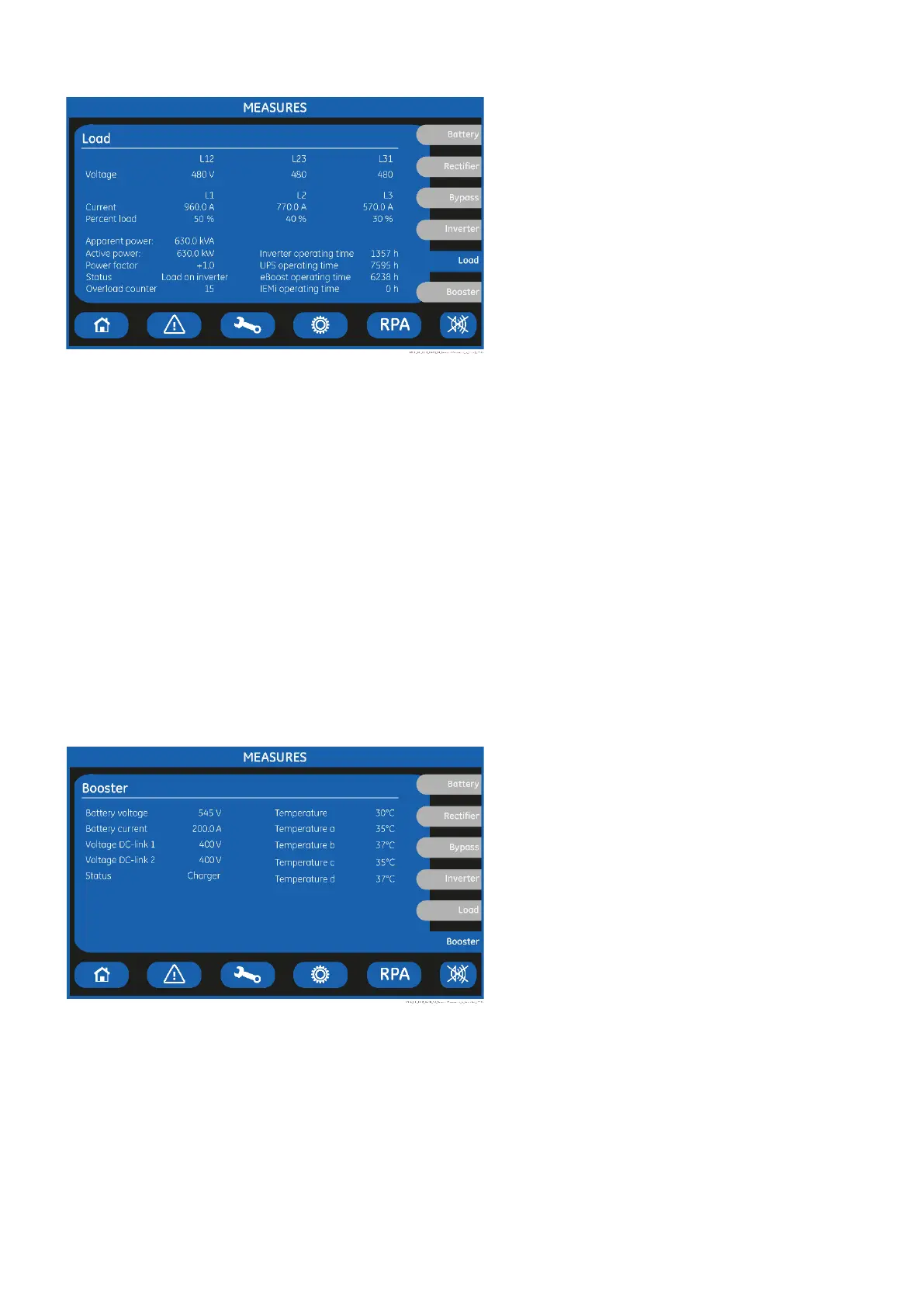

LOAD screen
Voltage L12 / L23 / L31
Output voltage PHASE/ PHASE for each phase.
Current L1 / L2 / L3
The output current as RMS values
for each
phase.
Percent load L1 / L2 / L3
The output Load as percentage for each phase.
Apparent power
Total apparent Load power (kVA).
Active power
Total effective Load power (kW).
Power factor
Load power factor: + inductive load / - capacitive load
Status
Source of the power supplied to the Load.
Overload counter
Total number of detected output overloads.
Inverter operating time
Total operating time for the Inverter (in hours).
UPS operation time
Total operating time for the UPS (in hours).
eBoost operation time
Total operating time for the UPS in eBoost™ Operation Mode (in hours).
This counter is displayed only when eBoost™ Operation Mode is available (option).
Booster screen
Battery voltage
The Battery voltage.
Battery current
The Battery
current (negative values correspond
to the discharge of the Battery).
Voltage DC-link 1
DC-link 1 voltage.
Voltage DC-link 2
DC-link 2 voltage.
Status
Booster status (Off / Booster / Charger).
Temperature a / b / c / d
a- Booster temperature (lower left module).
b
- Booster temperature (upper left module).
c
- Booster temperature (lower right module).
d- Booster temperature (upper right module).
