MegaFlex 1000 to 1600 UPS User Manual / REV-A

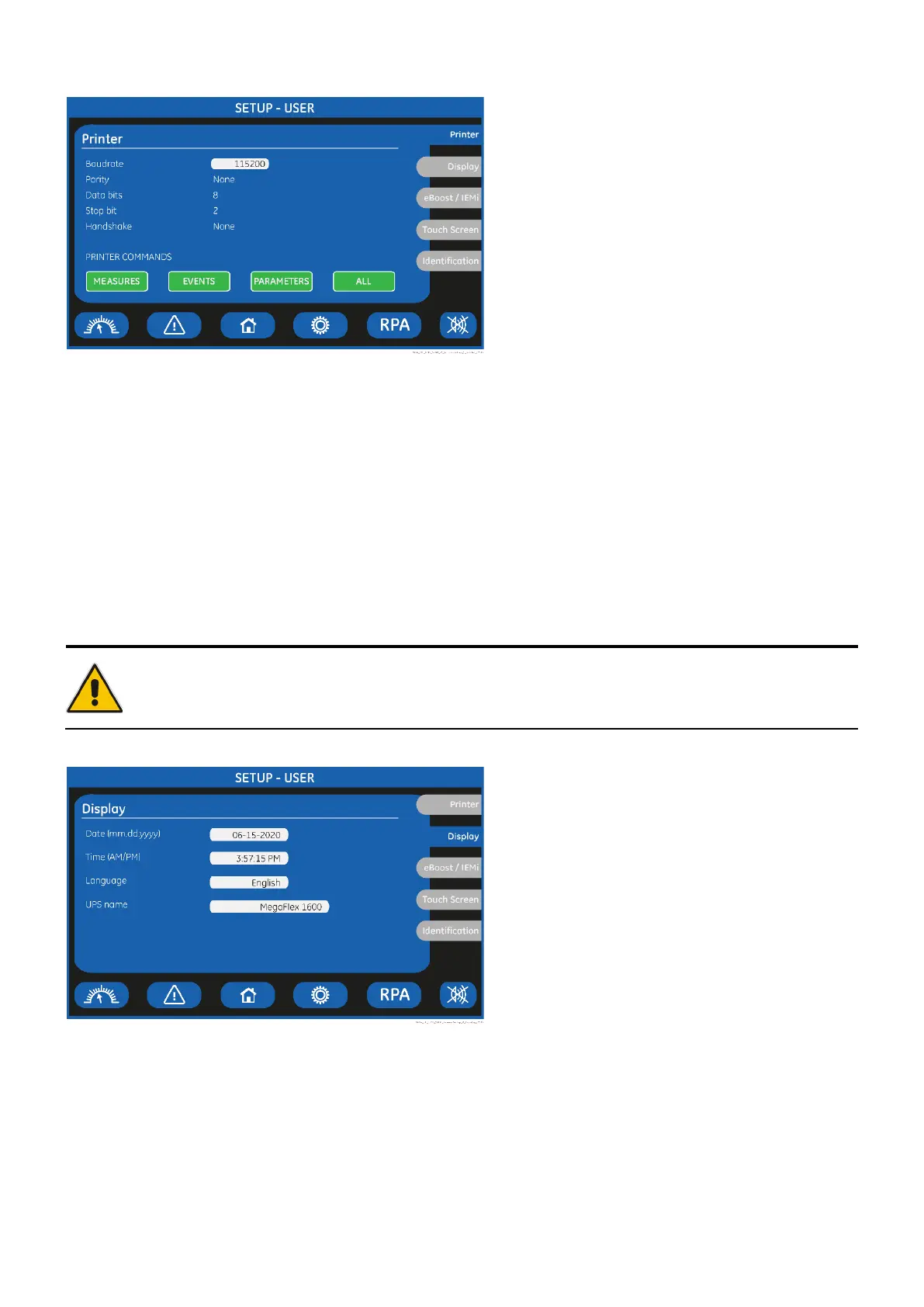

Printer screen
The UPS is capable of
communicating to a serial
printer, to printout disparate information.
Please be sure to have a serial printer
serial RS232 interface.
This is the only printer-
the UPS.
Baudrate
This parameter controls the baud rate used for
data transmission.
This parameter controls the parity used for data transmission.
odd / even / None can be selected.
In case “None” has been set, automatically the parameter “Data bits = 8”
is used,
independently of the value of “Data Bits” set.
This parameter controls the length of the data word on the serial line during data
transmission.
Parameter not programmable.
This parameter is used to determine the communication protocol used when printing.
Valid values are “XON” standing for the XON/XOFF protocol or “None”
standing for any
protocol.
By using the keys MEASURES / ALARMS / PARAMETERS / ALL it is possible to print selected
data
Note!
Please configure your printer with the following parameters:
115200/None/8/2/None (115200 Bauds/sec, No Parity, 8 Data Bits, 2 Stop bit, No Handshake).
Display screen
Date
You can adjust the date of the real time clock
existing in the UPS by the means of this
parameter (“mm-month, dd-day, yyyy-year”).
The value you enter is thoroughly checked to be
a correct date in the format “MM.DD.YYYY”.
You can adjust the time of the real time clock existing in the UPS by means of this parameter.
The value you enter is thoroughly checked to be a correct time in the format “HH.MM.SS”.
The time is specified in AM/PM format.
This parameter allows the choice of language used to display the information.
Valid choices are:
English, German, Italian, Spanish, French, Finnish, Polish, Portuguese,
Czech, Slovenian, Chinese, Swedish, Russian and Dutch.
The user can choose the name of the UPS model shown on the main screen (max. 20
characters).
