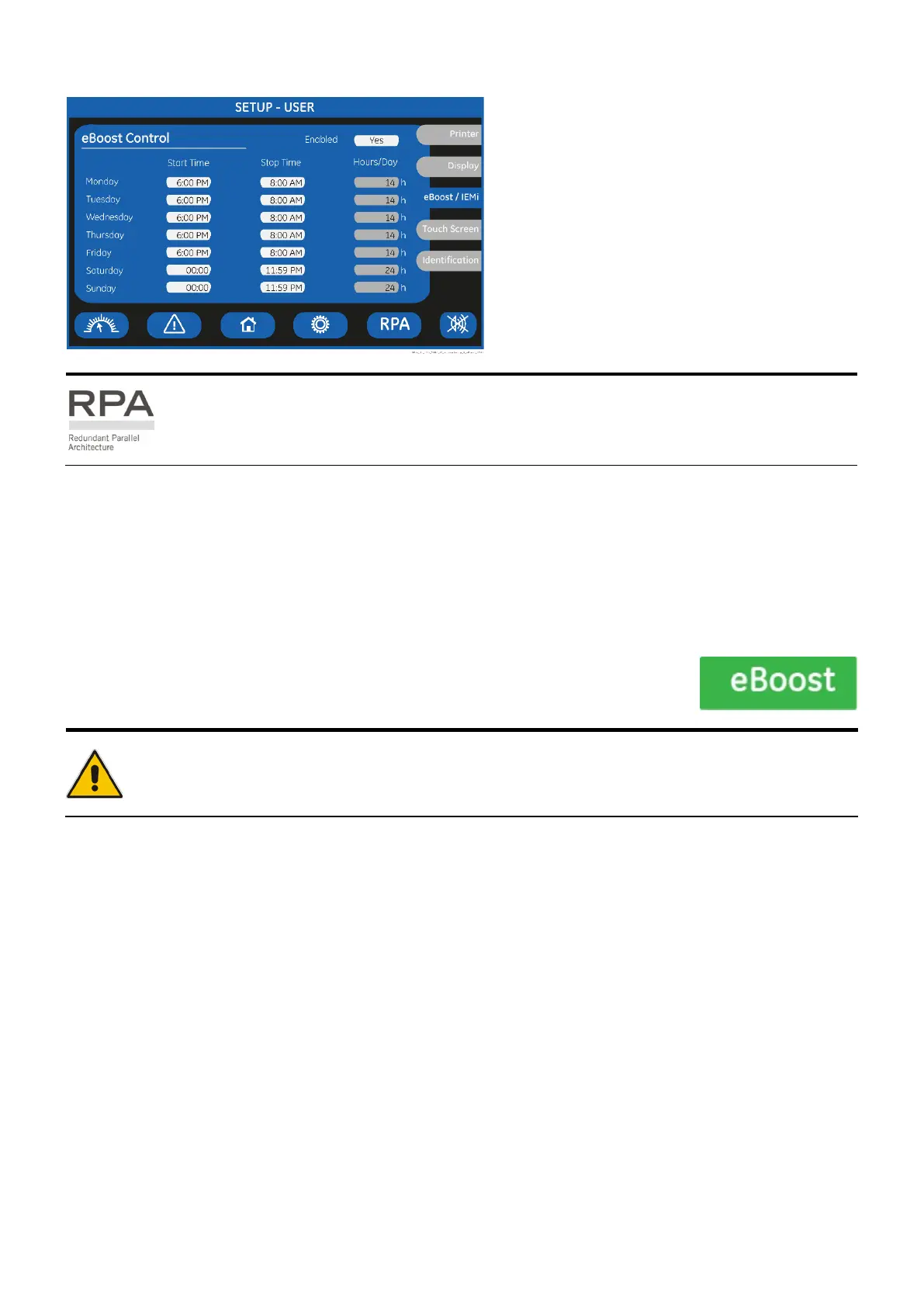

eBoost screen (option)
This screen is displayed only when
eBoost™
Operation Mode is available (option).
Enabled
This parameter (values Yes/No
) enables or
disables the eBoost™ Operation Mode.
If the value is “Yes”
and the current time is in the
interval for the current day, the
eBoost™
Operation Mode is active.
In case of RPA Parallel System
If eBoost™ Operation Mode is currently disabled (No) and the “Q1 – External UPS Output
Circuit
Breaker” is closed, when programming it to enable (Yes)
the selected configuration will
automatically be propagated to all units in the RPA Parallel System.
The activation / deactivation of eBoost™ Operation Mode is indicated each time in the event list.
In order to check the
Inverter function, at least 1 minute of VFI
mode must be programmed during the week (the
Yes/No
parameter is automatically disabled if this condition is not satisfied).
In case this minimum time in
VFI mode is not respected, the eBoost™ Operation Mode will be disabled.
If the value is “No”, the UPS is normally operating in VFI / double conversion mode at all times.
When the UPS is in
eBoost™ Operating Mode the eBoost LED is ON (green light).
Note!
The configuration of the activation schedule can only be updated when
eBoost™ Operation Mode
is disabled (Enabled: No).
Day
For the weekdays from
“Monday to Sunday”,
the edit mode (edit day) allows to define time intervals when the
UPS is operating in
eBoost™ Operation Mode. The hour is given in 24-hour format.
These intervals are defined by:
Start Time
: The hour of the day after which the eBoost™ Operation Mode is enabled.
The eBoost™ Operation Mode is enabled until the following “Stop Time”
time is reached (the
“Stop Time” time of the same day if this is later than the “Start Time” time, the “Stop Time”
time
of the following day otherwise).
Stop Time
: The hour of the day before which the eBoost™ Operation Mode is enabled.
The
eBoost™ Operation Mode is enabled starting from the preceding “Start Time” time (the “Start Time”
time of
the same day if this is earlier than the
“Stop Time” time, the “Start Time” time of the previous day otherwise).
Identical times for
“Start Time” and “Stop Time”
maintain the existing mode only in case the previous command
was “Start Time” and the following command will be “Stop Time”.
