6 NETA-21 remote monitoring tool
Mechanical installation

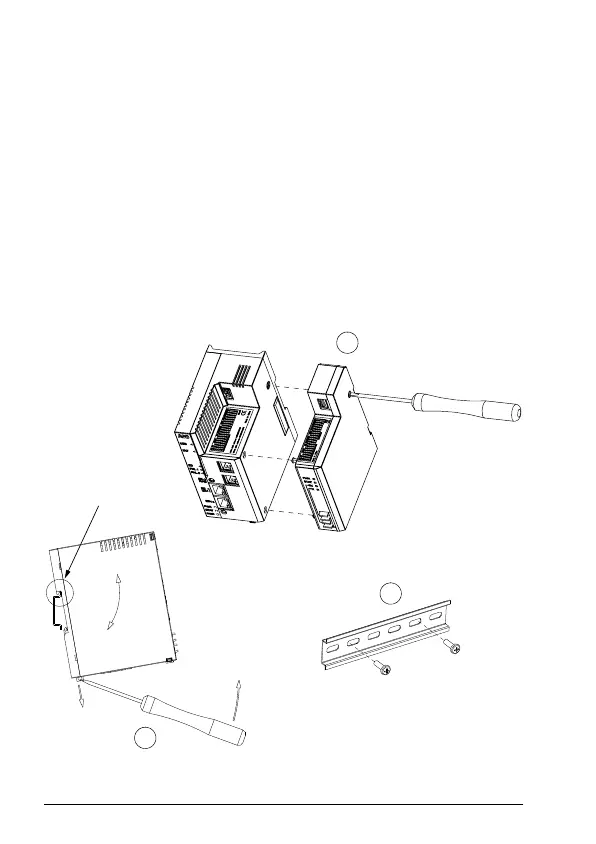

Installing NEXA-21 to NETA-21
1. Press the NEXA-21 against the NETA-21.
2. Tighten the grounding screw (A).
Do not use excessive force.
Mounting instructions
1. Protect the devices from the drilling dust.
2. Drill the holes for the fastening screws of the mounting rail.
3. Fasten the mounting rail (B).
4. Snap the remote monitoring tool onto the rail (C).
DIN rail mounting clip
A
B
C
