IMPORTANT SAFETY INSTRUCTIONS | GETTING TO KNOW YOUR PRODUCT 5
Item Component Manual section
AC power supply terminal (mandatory)
Main earth connection point (mandatory)
CT connection terminal (optional)
Manual button (start/ stop/ acknowledge fault)
System LEDs
Micro-USB connection for firmware update and troubleshooting n/a
DIP switch to set the address of modules operated in parallel
to connect to the PQconnecT (CAN/ Modbus converter)
DC power supply terminal (mandatory)
Black start board
(not functional at present)
Output to control the islanding contactor/ breaker
Battery Energy Storage System
Connector to be used for future functionalities
—
02 Getting to know your product
2.1 Product components
The PQstorI is a product of the Advanced Inverter
Platform (AIP) range. Its external connection
terminals and signalling features are listed in
Table 1 and depicted in Figures 1 and 2.
Figure 3 depicts the internal components of
this product.
—

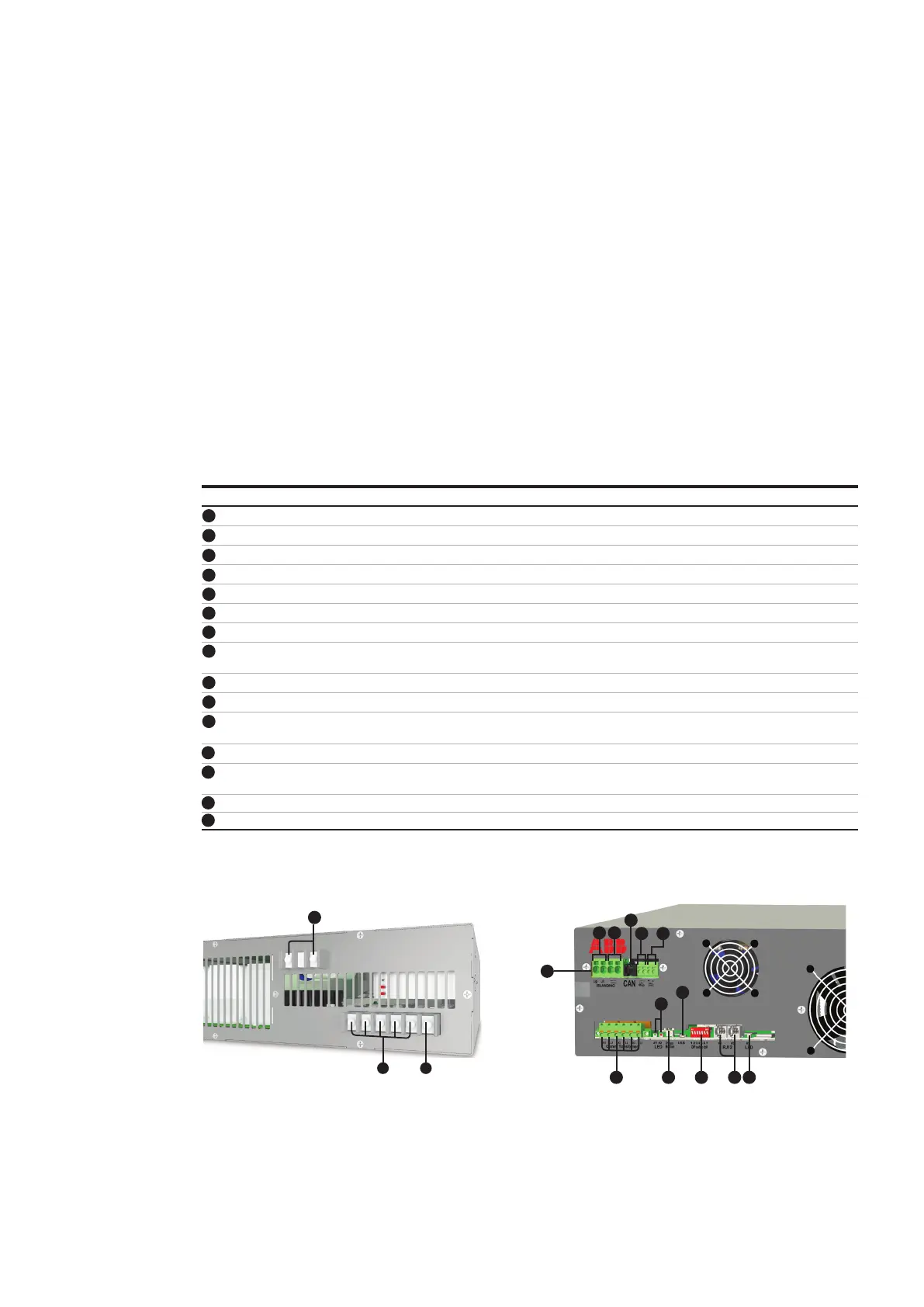

Table 1: External connection terminals and signals on PQstorI
—
Figure 1: Back connections
—
Figure 2: Front connections
1
2
1
2
3
3
4
4
5
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
14
15
