- 8 -
000398BG
1- Introduction and general information
01
, Bracket
02
, Safety bar
03
, DSP Reprogramming connectors
04
, Lower bracket
05
, Front cover
06
, LED Panel
07
, Display
08
, Keyboard
09
, DC Input terminal block
10
, AC Output terminal block
11
, Channel conguration switch
12
, Internal battery
13
, Signal terminal block
14
, RJ45 Connectors
15
, RS485 line termination switch
16
, DC Disconnect switch
17
, Input connectors (MPPT1)
18
, Input connectors (MPPT2)
19
, AC cable gland
20
, Service cable glands

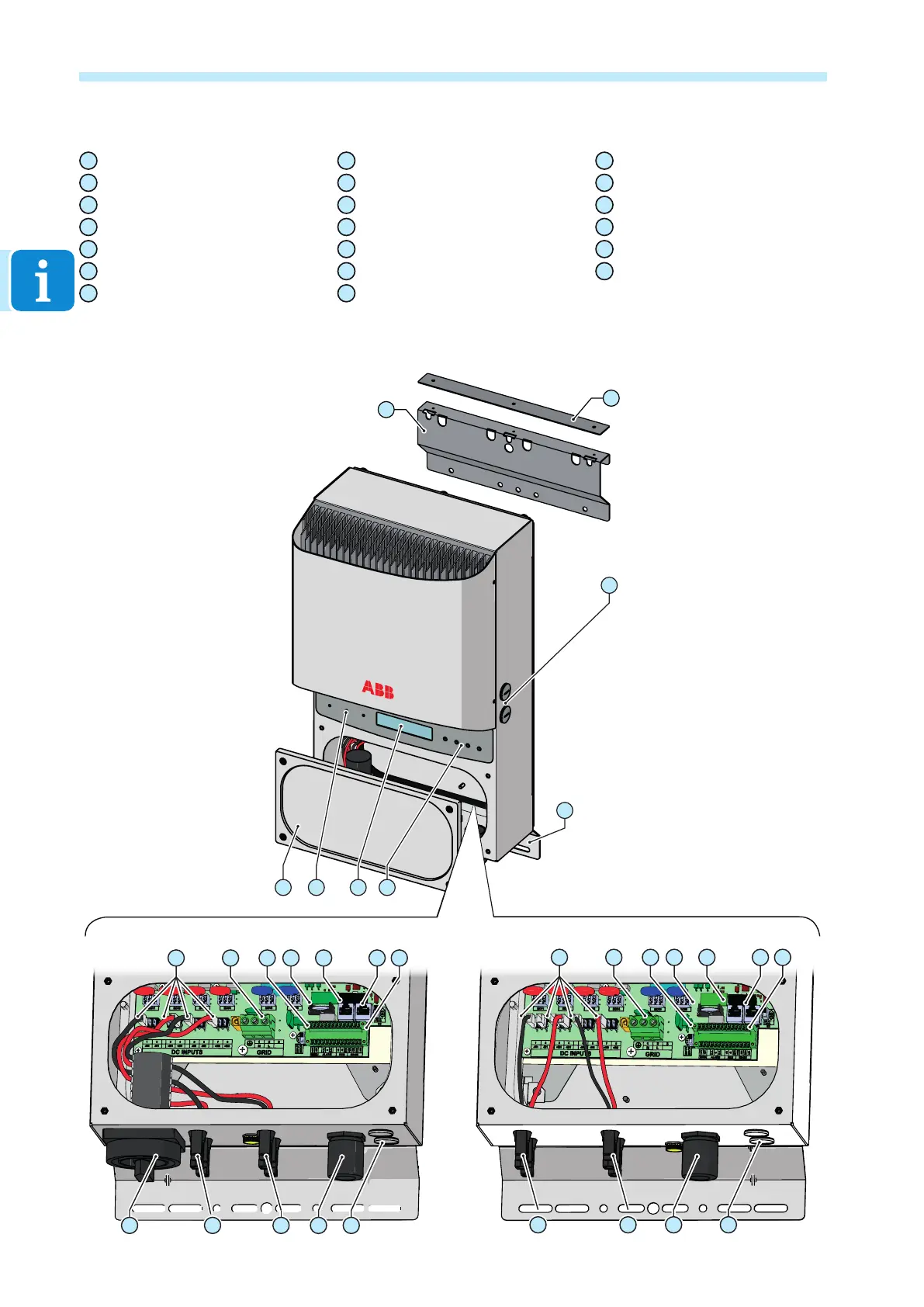

Reference number index
Graphical representation of references
UNO
02
01
03
05 06 0807
04
STANDARD VERSION- S VERSION
16 1817 19 20
14 1509 10 11 12 13
1817 19 20
14 1509 10 11 12 13
