Models and range of equipment

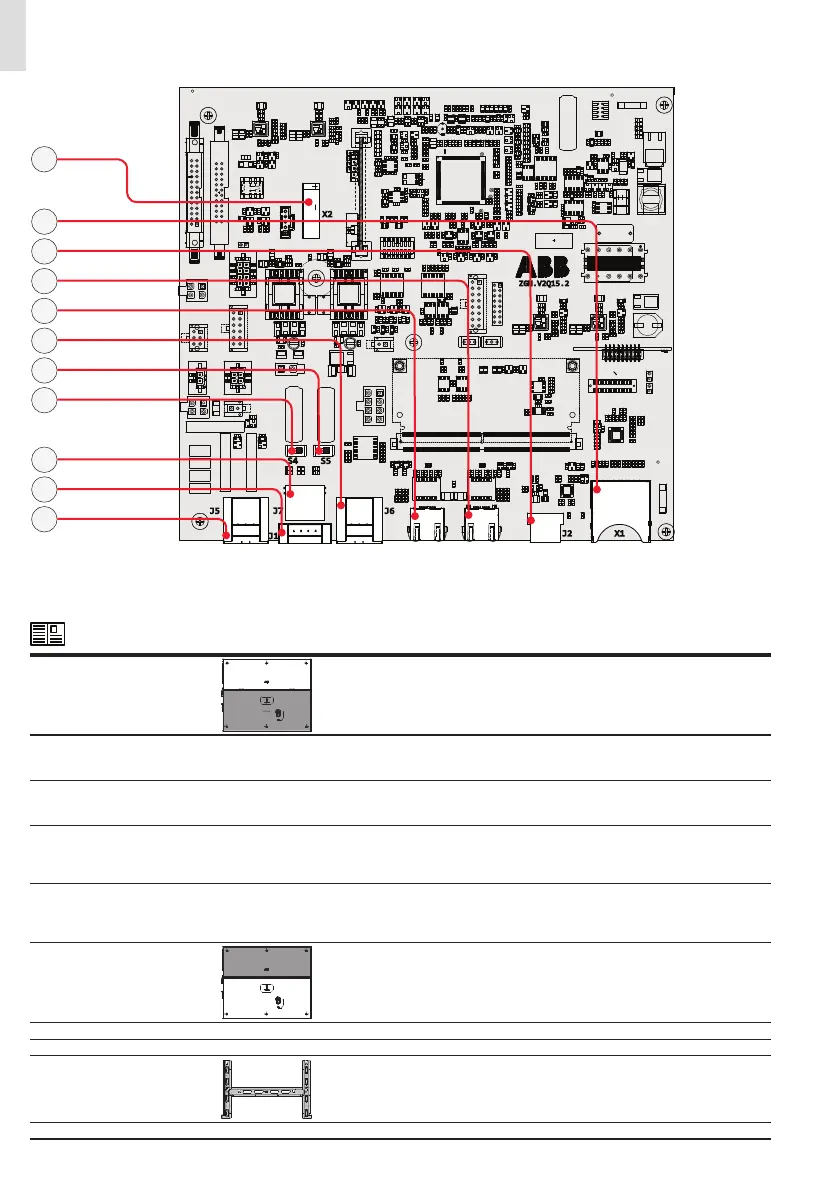

PVS-100/120-TL “B version” - Communication board (28)
J2 X1
X2
S5S4
J7
J1
J5 J6
1
2
1
8
7
432
ZGN.V2Q15.2
The choice of the inverter model must be made by a qualified technician who knows about the installation condi-
tions, the devices that will be installed outside the inverter and possible integration with an existing system.
“Wiring box” Model Number
PVS-120
Description
WB-SX-PVS-100-TL
WB-SX-PVS-120-TL
Input with 24 quick fit connectors pairs + String fuses (positive pole) + DC dis-
connect switches + AC and DC overvoltage surge arresters (Type II) + MPPT level
input current monitoring (6 ch.)
WB-SX2-PVS-100-TL
WB-SX2-PVS-120-TL
Input with 24 quick fit connectors pairs + String fuses (both positive and nega-
tive pole) + DC disconnect switches + AC disconnect switch + AC and DC over-
voltage surge arresters (Type II) + individual string monitoring (24 ch.)
WB-SY-PVS-100-TL
WB-SY-PVS-120-TL
Input with 24 quick fit connectors pairs + String fuses (positive pole) + DC dis-
connect switches + AC and DC overvoltage surge arresters with replaceable car-
tridges (Type I+II for AC and Type I+II for DC) replaceable cartridges + MPPT level
input current monitoring (6 ch.)
WB-SY2-PVS-100-TL
WB-SY2-PVS-120-TL
Input with 24 quick fit connectors pairs + String fuses (both positive and nega-
tive pole) + DC disconnect switches + AC disconnect switch + AC and DC over-
voltage surge arresters with replaceable cartridges (Type I+II for AC and Type I+II
for DC) + individual string monitoring (24 ch.)
“Power module” Model Number
PVS-120
Description
PVS-100-TL-POWER MODULE Inverter section / power module with 100kW output power at 400Vac
PVS-120-TL-POWER MODULE Inverter section / power module with 120kW output power at 480Vac
“Bracket” Model Number Description
PVS-100/120-TL-BRACKET Bracket allowing both vertical and horizontal installation.
33
37
36
34
35
38
39
40
41
42
43
