Section 3 1MRK 500 124-UEN
HMI500
28 Operation Manual
Distributed busbar protection REB500
3.5.7.3 Detailed view (“Open window”)
Dialog for viewing individual devices and processing records.

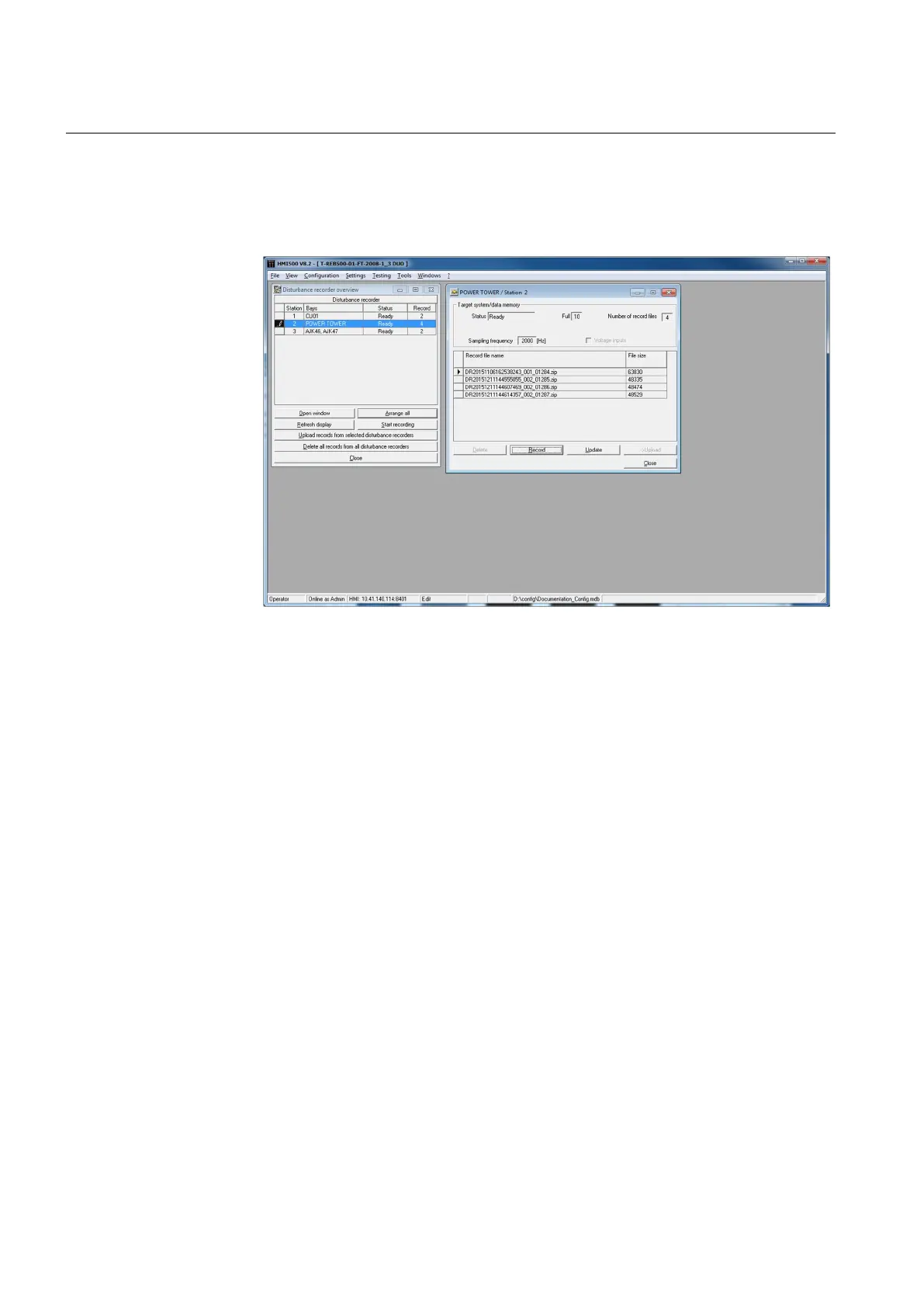

Figure 18 Disturbance recorder detailed view
The following data are displayed:
• Status (defined in the overview)
• Number of records available
• Number of free records
• Sampling frequency (see Section 3.6.7 “ Configuration / Disturbance
recorder”)
• Record file name
• File size
The dialog provides the following facilities:
• Delete disturbance record
• Start disturbance recording
• Upload disturbance records
• Update disturbance records
