Most of the CU signals only occur once. There is an output signal
“Trip BB zone” for each section of busbar (bus zone), therefore the
respective zone must be given when selecting this signal.
3.6.3.6 Outputs Overview tab

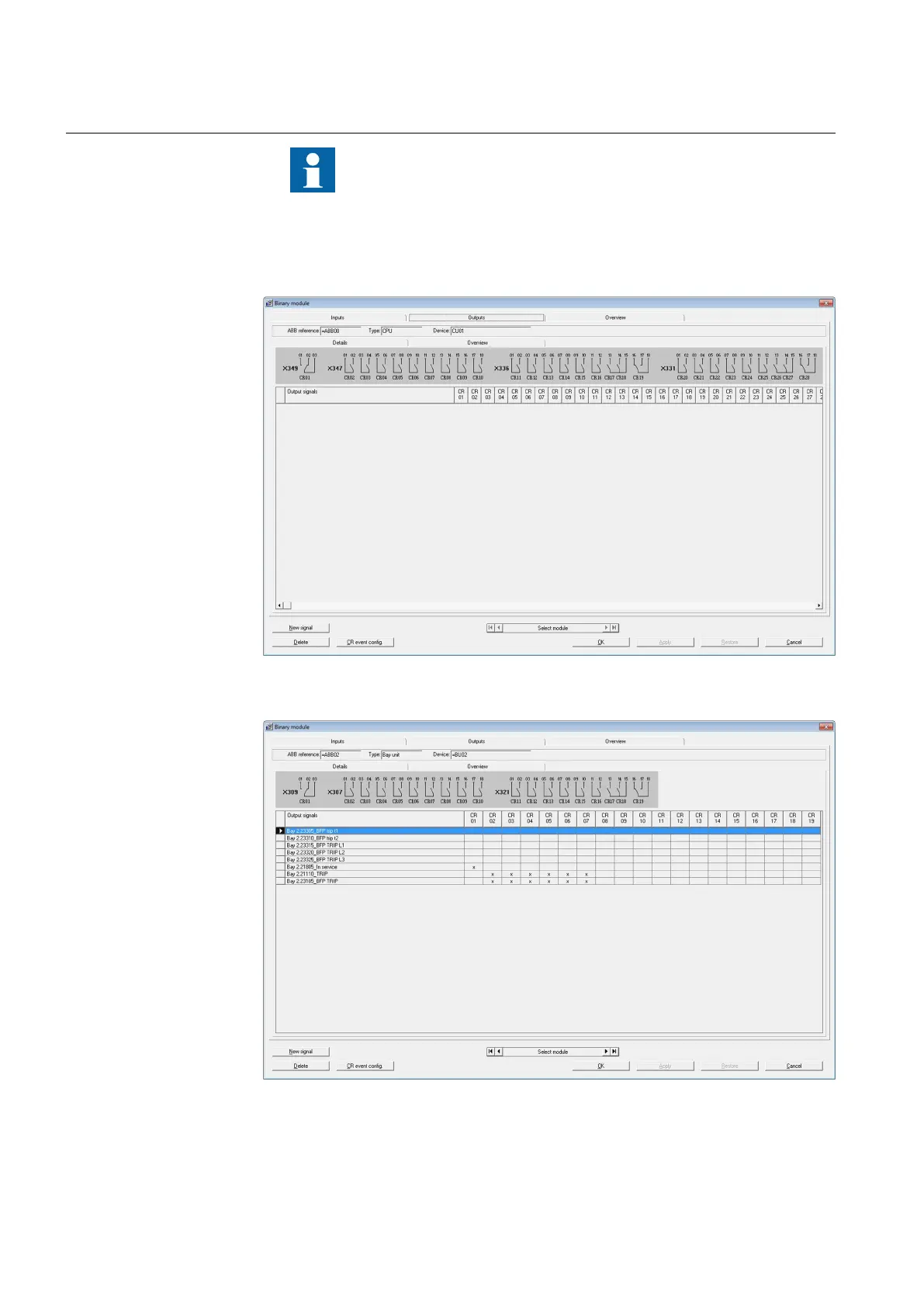

Figure 29 Configuration / Binary module - Outputs - Overview – CU
Figure 30 Configuration / Binary module - Outputs - Overview – BU
