ABB REF611 - Configuration C

GOOSERCV_BIN:0_OUT
GOOSERCV_BIN:1_OUT
ISWGAPC9
IN
OUT_1
OUT_2
OUT_3
OUT_4
OUT_5
OUT_6
OUT_7
OUT_8
OUT_9
OUT_10
OUT_11
OUT_12
PHLPTOC1_BLOCK
PHHPTOC1_BLOCK
PHHPTOC2_BLOCK
PHIPTOC1_BLOCK
EFLPTOC1_BLOCK
EFLPTOC2_BLOCK
EFHPTOC2_BLOCK
EFIPTOC1_BLOCK
NSPTOC1_BLOCK
NSPTOC1_BLOCK
PDNSPTOC1_BLOCK
T1PTTR1_BLOCK
GOOSE Blocking
OUT_13
CBPSOF1_BLOCK
GUID-12868AC3-B5C0-4AA9-B0C7-4E89BD5BAFE1 V2 EN

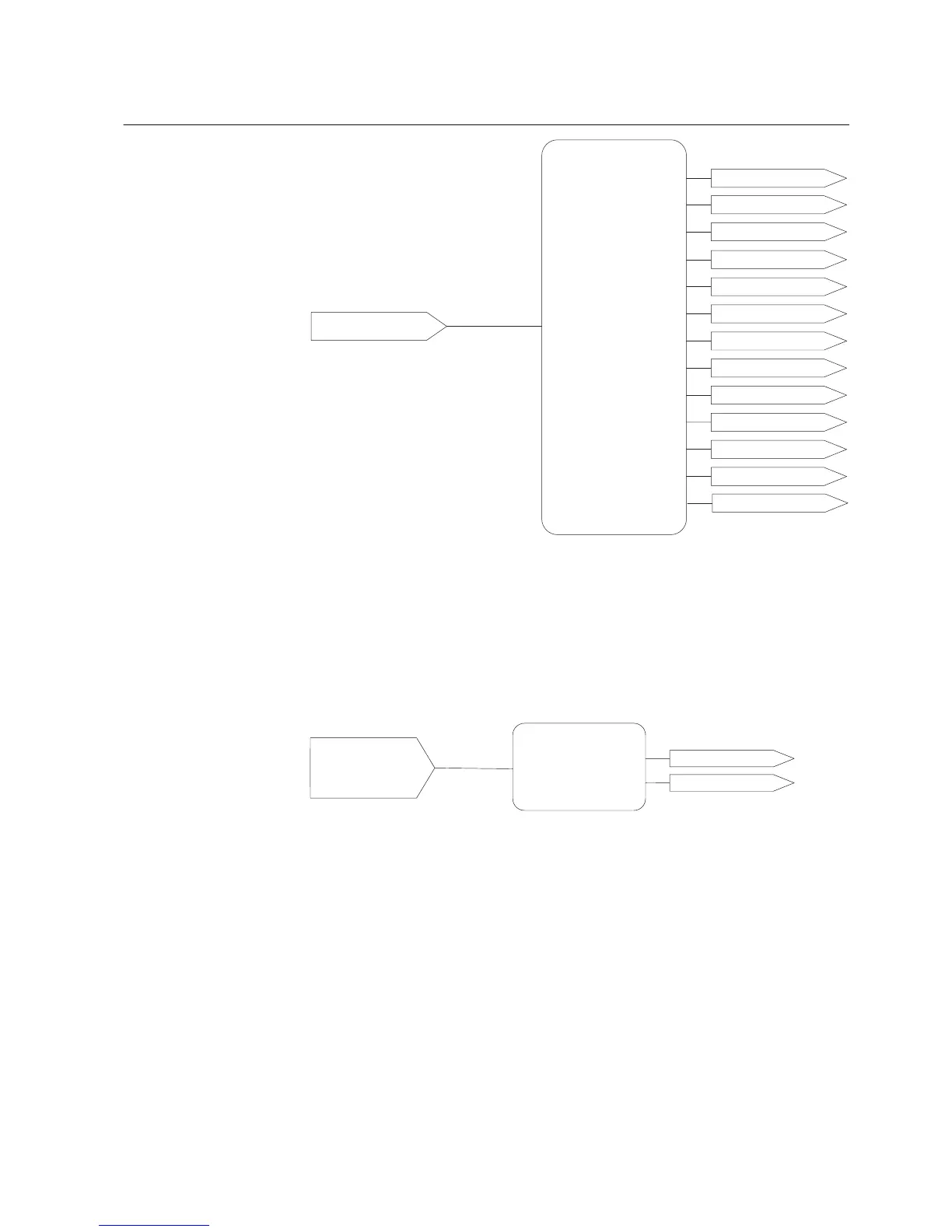

Figure 103: ISWGAPC9
ISWGAPC10
ISWGAPC10 is used to block the circuit breaker operation from the received GOOSE
signals. ISWGAPC10 inputs are received GOOSE signals from GOOSERCV_BIN:
4 to GOOSERCV_BIN:19. The outputs are connected to block the circuit breaker
close and open operation.
ISWGAPC10
IN
OUT_1
OUT_2
CBXCBR1_BLK_CLOSE
CBXCBR1_BLK_OPEN
GOOSERCV_BIN:4_OUT
GOOSERCV_BIN:5_OUT
GOOSERCV_BIN:6_OUT
...
GOOSERCV_BIN:19_OUT
GOOSE Block CB
GUID-C0024745-DFB7-4849-9F43-44159D9736B9 V1 EN
Figure 104: ISWGAPC10
3.6 Configuration C
3.6.1 Applications
Configuration C for directional overcurrent and earth-fault protection is mainly
intended for cable and overhead-line feeder applications in isolated and resonant-
earthed distribution networks.
1MRS757456 D Section 3
REF611 standardized configurations
REF611 121
Application Manual
