OSWGAPC16
IN_1
IN_2
IN_3
IN_4
IN_5
IN_6
IN_7
IN_8
IN_9
IN_10
IN_11
IN_12
IN_13
OUT
IN_14
IN_15
CCBRBRF1_TRBU
CCBRBRF1_TRRET
DARREC1_UNSUC_RECL
DARREC1_AR_ON
DARREC1_READY
T1PTTR1_ALARM
SELGAPC1_OUT_9
TCSSCBR2_ALARM
DARREC1_INPRO
DARREC1_LOCKED
DARREC1_PROT_CRD
TCSSCBR1_ALARM
RDRE_TRIGGERED
TRPPTRC1_CL_LKOUT
TRPPTRC2_CL_LKOUT
Alarm 6
TPGAPC7_IN2
SELGAPC4_IN_18
External Trip
GUID-85582396-2EEA-4A14-AAD2-1965D3CFFCAF V1 EN

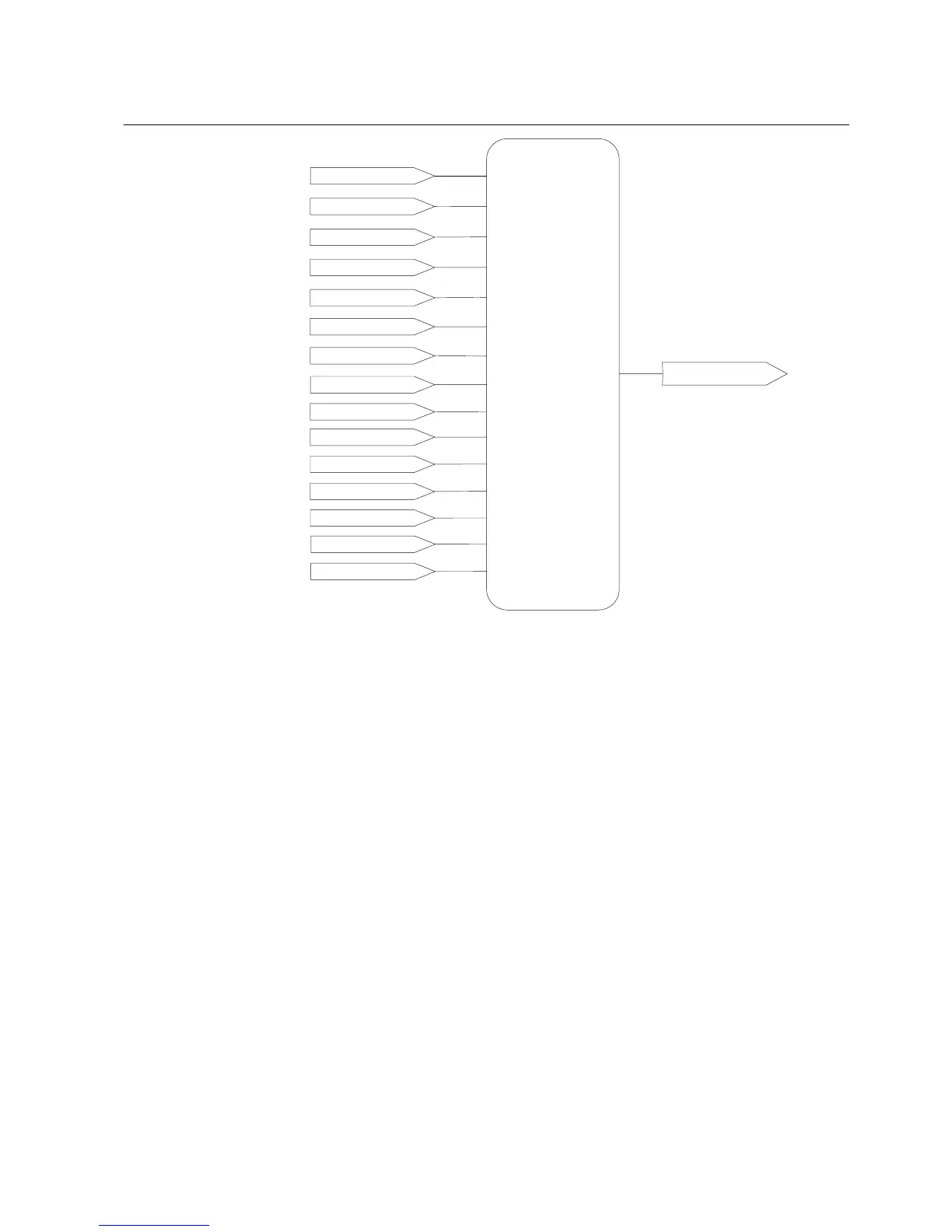

Figure 147: OSWGAPC16
3.6.4.4 GOOSE
In the configuration, there are 20 GOOSERCV_BIN functions. Each
GOOSERVC_BIN function can be connected to one received binary GOOSE signal.
The signal connection can be configured in PCM600.
• GOOSERCV_BIN instances 0 and 1 are used for blocking protection functions.
Signals from these two GOOSERCV_BINs are connected to ISWGAPC9.
ISWGAPC9 is used to configure which protection function block is blocked.
• GOOSERCV_BIN instances 2 and 3 are used for tripping from GOOSE. Signals
from these two GOOSERCV_BINs are connected to TRPPTRC1 and
TRPPTRC2 trip.
• GOOSERCV_BIN instances 4 to 19 are used for blocking circuit breaker
operation. Signals from these 16 GOOSERCV_BINs are connected to
ISWGAPC10. ISWGAPC10 is used to configure the GOOSE input signal to
block the circuit breaker open or close operation.
1MRS757456 D Section 3
REF611 standardized configurations
REF611 165
Application Manual
