SELGAPC1
ISWGAPC1
Blocking 1
ISWGAPC5
Basic Angle
Control
DEFLPDEF1_RCA_CTL
DEFLPDEF2_RCA_CTL
DEFHPDEF1_RCA_CTL
DPHLPDOC1_BLOCK
DPHLPDOC2_BLOCK
DPHHPDOC1_BLOCK
PHIPTOC1_BLOCK
EFHPTOC1_BLOCK
DEFLPDEF1_BLOCK
DEFLPDEF2_BLOCK
DEFHPDEF1_BLOCK
ROVPTOV1_BLOCK
ROVPTOV2_BLOCK
ROVPTOV3_BLOCK
INTRPTEF1_BLOCK
NSPTOC1_BLOCK
NSPTOC2_BLOCK
PDNSPTOC1_BLOCK
T1PTTR1_BLOCK
CBPSOF1_BLOCK
X120-BI1
X120-BI2
X120-BI3
X130-BI1
X130-BI2
X130-BI3
X130-BI4
ISWGAPC2
Blocking 2
DPHLPDOC1_BLOCK
DPHLPDOC2_BLOCK
DPHHPDOC1_BLOCK
PHIPTOC1_BLOCK
EFHPTOC1_BLOCK
DEFLPDEF1_BLOCK
DEFLPDEF2_BLOCK
DEFHPDEF1_BLOCK
ROVPTOV1_BLOCK
ROVPTOV2_BLOCK
ROVPTOV3_BLOCK
INTRPTEF1_BLOCK
NSPTOC1_BLOCK
NSPTOC2_BLOCK
PDNSPTOC1_BLOCK
T1PTTR1_BLOCK
CBPSOF1_BLOCK
X120-BI4
GUID-AF76144B-F5EE-4DA8-8943-D25CCFC389D3 V2 EN

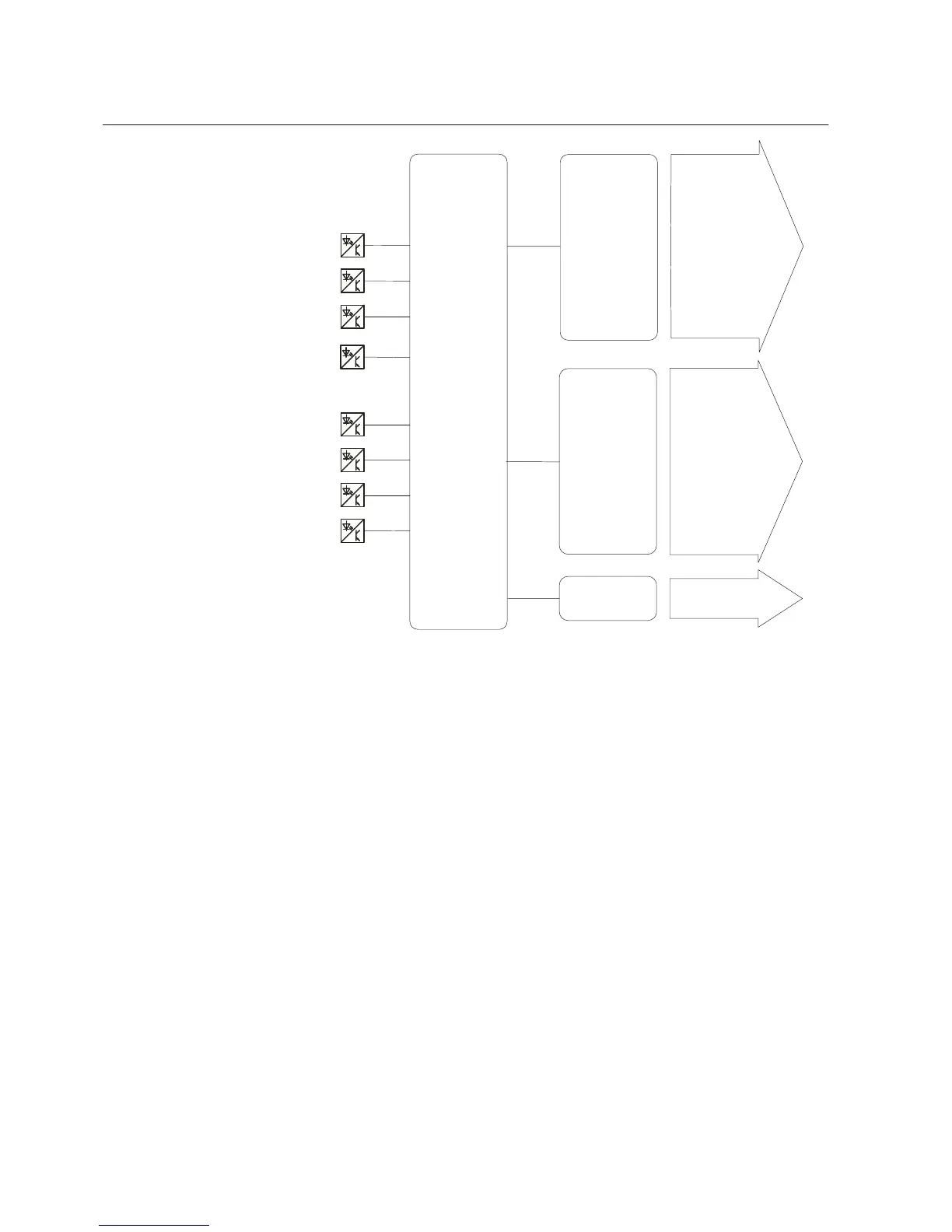

Figure 118: Binary inputs
SELGAPC1
SELGAPC1 has inputs from protection relay binary inputs. IN_1...IN_4 are binary
inputs from X120. IN_5...IN_8 are used from four inputs of X130. An always true
signal is connected to IN_9. SELGAPC1 outputs are used to route inputs to different
functions. By setting SELGAPC1, binary inputs can be configured for different
purposes.
Section 3 1MRS757456 D
REF611 standardized configurations
138 REF611
Application Manual
