Channel number Channel id text Level trigger mode
Binary channel 12 T1PTTR1_START 1=positive or rising
Binary channel 13 PHxPTOC_OPERATE 4=level trigger off
Binary channel 14 EFxPTOC_OPERATE 4=level trigger off
Binary channel 15 NSPTOC1/2_OPERATE 4=level trigger off
Binary channel 16 PDNSPTOC1_OPERATE 4=level trigger off
Binary channel 17 T1PPTR1_OPERATE 4=level trigger off
Binary channel 18 SELGAPC1_Blocking 1 4=level trigger off
Binary channel 19 SELGAPC1_CB_Closed 4=level trigger off
Binary channel 20 SELGAPC1_CB_Open 4=level trigger off
Binary channel 21 INRPHAR1_BLK2H 4=level trigger off
Binary channel 22 CCBRBRF1_TRRET 4=level trigger off
Binary channel 23 CCBRBRF1_TRBU 4=level trigger off
Binary channel 24 DARREC1_INPRO 4=level trigger off
Binary channel 25 DARREC1_CLOSE_CB 4=level trigger off
Binary channel 26 DARREC1_UNSUC_RECL 4=level trigger off
Binary channel 27 SELGAPC1_External Trip 4=level trigger off
Binary channel 28 SG_1_ACT 4=level trigger off
Binary channel 29 SG_2_ACT 4=level trigger off
Binary channel 30 SG_3_ACT 4=level trigger off
Binary channel 31 SG_4_ACT 4=level trigger off
Binary channel 32 SG_5_ACT 4=level trigger off
Binary channel 33 SG_6_ACT 4=level trigger off
X120-BI3
OR
LED 7
TRIP CIRCUIT SUPERVISION
SELGAPC1
OUT_3
IN_3
TRPPTRC1_TRIP
TRPPTRC2_TRIP
TCSSCBR1
BLOCK
ALARM
TCSSCBR2
BLOCK
ALARM
SELGAPC4
OUT_7
IN_16
OSWGAPC14
OR
OUT
IN_3
IN_4
SELGAPC2
OUT_1
IN_2
OUT_2
CB Open Position
GUID-8D5B4458-2F48-4925-AEC1-F1C49AFBEE22 V2 EN

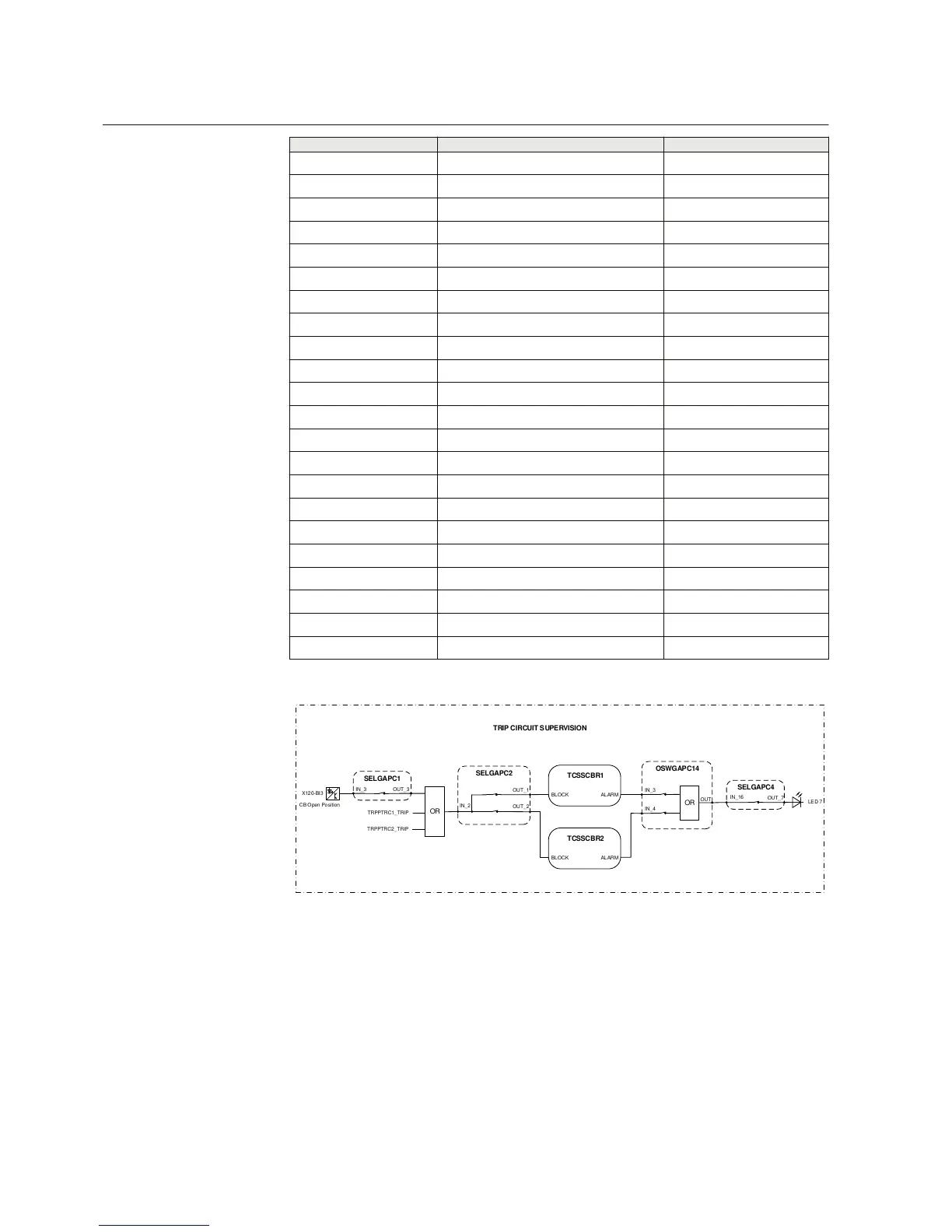

Figure 68: Trip circuit supervision
Two separate trip circuit supervision functions are included, TCSSCBR1 for PO3
(X100:15-19) and TCSSCBR2 for PO4 (X100:20-24). Both functions are blocked by
Master Trip (TRPPTRC1 and TRPPTRC2) and the circuit breaker open position. The
TCS alarm indication is connected to LED 7.
Section 3 1MRS757456 D
REF611 standardized configurations
90 REF611
Application Manual
